Overview

For successful abrasive waterjet cutting, there are several factors at the cutting head that determine the precision and quality of the waterjet stream and will affect the quality of part you are able to cut with an abrasive waterjet. There are other factors that will go into cutting a precise and accurate part (machine design, controls, software and high-pressure pump) that will be discussed in other chapters. This chapter will focus on the cutting head and the waterjet as it interacts with the work piece.

Back to Index

Factors affecting precision & quality of the waterjet at the cutting head

Figure 1 - Abrasive Waterjet Cutting Head

1 - Abrasive mixing tube length

A longer abrasive mixing tube (a.k.a. abrasive nozzle) produces a more coherent waterjet stream. The optimum mixing tube length is 3" - 4" (75 mm - 100 mm).

2 - Alignment of components

The orifice, mixing chamber and abrasive nozzle must be precisely machined and fit perfectly together to avoid damage of consumables by the waterjet stream.

3 - Precise orifice

The inside of the abrasive nozzle must be machined to ensure perfect alignment with the waterjet stream. See "Waterjet stream's effect on accuracy" section of this chapter for more information.

4 - Diameter of stream

A small diameter waterjet stream, as produced by a .010" (0.25 mm) orifice produces an efficient, high-quality stream. As a trade-off, cutting speeds are slower than when using a 0.014" (0.36 mm) or larger orifice, since less water and abrasive are used. See Chapter 2 "Relationship Parameters" for more information on orifice selection.

5 - Low, controlled stand-off from work

Maintaining a close distance between the nozzle and the work piece, between 0.040" and 0.060" (1.0 - 1.5 mm), is critical for producing accurate parts while also getting the maximum efficiency from the waterjet. Cutting closer to the material limits the amount of atmosphere that the jet has to travel through before reaching the work piece. This limits the expansion of the waterjet stream, since as the jet expands, the effective power of the jet is reduced. Cutting speeds will need to be reduced to compensate.  If the distance between the nozzle and the work piece is increased by ¼", cutting speeds must be reduced by approximately 20% to achieve similar results with respect to tolerance and edge quality.  Cutting under water with CNC height control will allow for ultimate control of the waterjet stream.

See "Effect of nozzle height" below for more information.

Back to Index

Creation of the abrasive waterjet stream

Figure 2 - Close-up of the of abrasive waterjet cutting head

Following is a description of how the abrasive waterjet stream is created in the cutting head. The numbers indicated below refer to the numbers in Figure 2 above.

1 - Water pressurized at 50,000 psi or greater enters the cutting head at relatively slow speed, in the order of a few feet per second. (See "How It Works" for more information on how this water pressure is created and transmitted to the cutting head.)

2 - The water is forced through an orifice that has a small diameter orifice, anywhere from 0.004" to 0.045" depending upon the application. These orifices are made of extremely hard material, such as diamond, sapphire or ruby. This step converts the water stream from a high pressure stream to a high velocity stream. At this point the water is moving in excess of 2200 miles per hour (3657 kilometers per hour).

3 - The high velocity of the jet creates a Venturi effect, or vacuum, in the mixing chamber located immediately beneath the orifice. Abrasive, typically garnet, is metered from a mini-hopper through a plastic tube down to the cutting head and is sucked into the waterjet stream in the mixing chamber. Cutting speed will increase with more abrasive until a saturation point is reached where speed starts to decrease. If the abrasive amount is increased too high, ultimately the mixing tube will clog.

One of the exciting advancements in waterjet cutting in the past few years is the appearance on CNC- controlled abrasive metering systems. These systems precisely control the amount of abrasive that is allowed to flow to the cutting head. During the piercing process, cutting pressure and abrasive amount are reduced and the cutting head makes small, circular motions in the X and Y axes. This piercing procedure allows for difficult applications, such as piercing of glass and stone, to be processed with relative ease.

4 - The abrasive is fully mixed in the waterjet stream and is accelerated to approximately the speed of the waterjet stream.  This step does steal some energy from the waterjet stream, slowing it down slightly.

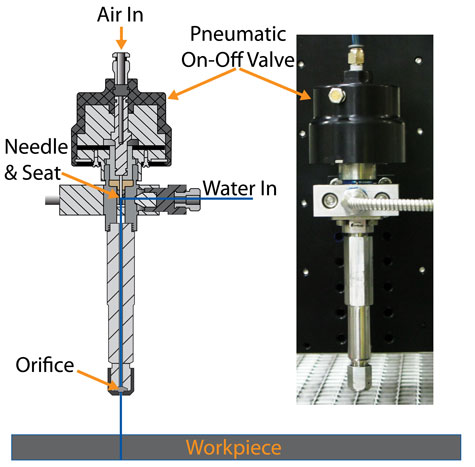

5 - The abrasive waterjet stream exits the mixing tube with extreme speed and power. The abrasive erodes the material to be cut. The process is referred to as "abrasive waterjet cutting" because it is the abrasive that is actually doing the cutting. The water's role is simply to give speed and power to the abrasive. In pure waterjet cutting, used for soft materials like foam and food, the force of the waterjet stream alone is enough to cut the material and abrasive is not required.

Back to Index

Effect of speed upon kerf angle

Figure 3 - 3/4" (20 mm) Aluminum with 3 different cut speeds

Kerf angle, or bevel, refers to the dimensional difference between the top and bottom of the cut cross-section. Cutting too fast will result in a wider kerf width at the top of the cut cross-section and a narrower kerf width at the bottom of the zone. In the picture above, from left to right, cuts were done at 26 inches per minute (ipm), 14 ipm and 9.7 ipm (660 millimeters per minute [mm/min], 355 mm/min and 246 mm/min). All other parameters were held constant (pressure 60 kpsi, 0.060" standoff distance, 1.3 lb/min abrasive [4134 bar, 1.5mm and 600 grams/min]). At the top of the cut, kerf width was similar, around 0.044" (1.12 mm). The difference between top and bottom going from left to right was 0.017", 0.013" and 0.011" (0.43 mm, 0.33 mm and 0.28 mm). This shows the decrease in angularity as speed decreases.

The picture to the left shows one additional cut that was done extremely slowly (1 ipm or 25.4 mm/min) to demonstrate that when speed is decreased enough, the kerf width at the bottom of the part will be larger than at the top. In this example the kerf width at the bottom was 0.014" (0.36 mm) larger than at the top.









Back to Index

Drag of waterjet stream and cut quality

Increasing feedrate results in increased trail back of waterjet stream. This concept is shown in Figure 5 below. Rougher edge quality is the result of more shearing action versus erosion action of abrasive at slower speeds. Modern controllers allow the user to adjust cut quality based upon part requirements. High-precision holes can be cut slower for a smoother, straighter cut. Faster cutting speeds with rougher edge quality can be used on less critical areas.

Figure 5 - Increasing trail back of waterjet steam with increasing speed

Back to Index

Effect of nozzle height

Figure 6 - 3/4" Aluminum with cuts at various nozzle heights, same speed

For best cut quality, an optimum distance between the nozzle and the work piece should be maintained. Typically, between 0.040" and 0.060" (1.0 - 1.5 mm) is the optimum height for abrasive waterjet cutting. As the distance increases above 0.060", rounding on the top edge of the cut will result. This occurs because the waterjet stream looses coherence as it travels through open air. Increased nozzle height will also result in increased kerf angle. If the distance between the nozzle and the work piece is increased by ¼", cutting speeds must be reduced by approximately 20% to achieve similar results with respect to tolerance and edge quality. Automatic height control is the most reliable and accurate way to maintain proper standoff distance. Figure 7 shows that if the nozzle height is increased too far, the jet will not have enough power to fully penetrate material that it would easily cut at much lower heights.

Figure 7 - Increasing nozzle height to point of no jet penetration

Back to Index

Effect of speed on inside corners

Since the waterjet is a non-rigid cutting tool, inside corners on parts can exhibit a certain amount of overcut on the bottom, or exit, side of the part. This can be reduced by decelerating into the corner and slowly accelerating, allowing the bottom portion of the jet to catch up with the top portion around the corner. The waterjet control must have the ability to do this automatically.

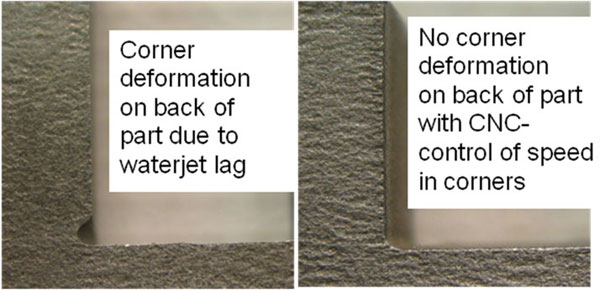

Figure 8 - Corner speed too fast

Tight radii

Since the waterjet stream is a round tool, with a diameter between 0.030" and 0.040" (0.76 mm and 1.02 mm) for abrasive waterjet cutting, creating any inside corner that is perfectly square is impossible. CAM software will typically read geometries and give a user the option to automatically place a very small radius on these corners. This will avoid damaging the part and reduce processing time, as radii are faster to cut than square corners. For very acute angles, the actual part that is cut may differ significantly from the original drawing and should be considered for form, fit and function before processing.

Back to Index

Lead-in and Lead-out types

Piercing in the scrap area of material and "leading-in" to the actual geometry to cut is standard operating procedure in most waterjet applications. This avoids placing a large blow-out blemish from the initial piercing on the surface of the part. At the end of a cut, a lead-out may be required to remove any "nib" from the lead-in area.

Various types of lead-ins and lead-outs can be experimented with for different materials and thicknesses. Figure 9 shows a few examples of lead-ins and leads-outs.

• Number 1 (straight line lead-in with very short straight line lead-out) is desirable for any sharp corner.
• Number 2 (arc lead-in with short arc lead-out) is good for thinner and softer materials.
• Number 3 (straight line lead in with no lead-out) gives good results on thicker, harder material.
• Number 4 is an example of a straight line lead in with short arc lead-out. CAM software should have the flexibility to combine different types of lead-ins and lead-outs should the user wish to experiment.

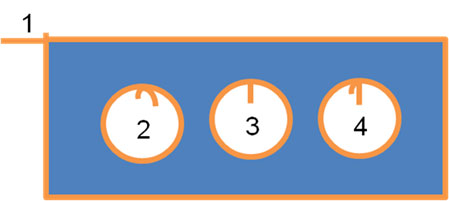

Figure 9 - Different lead-in/lead-out types

Reducing lead-in/lead-out witness marks

At the end of a cut, a small nib may remain on the bottom portion of the cut in the lead-in/lead-out area. Because of the lagging effect discussed previously, when the jet reaches the end of the cut, the top portion of the jet will find the path of least resistance, and effectively "jump over" a small bit of material leaving a nib. With the more sophisticated controls and software available today, this can be reduced by decelerating at the end of the cut to allow the bottom portion of the jet to catch up with the top before reaching the end of the cut. Figure 10 below shows examples of a large nib because of too much speed at the end of a cut and an example of a minimal witness mark with appropriate slow down at the end of the cut.

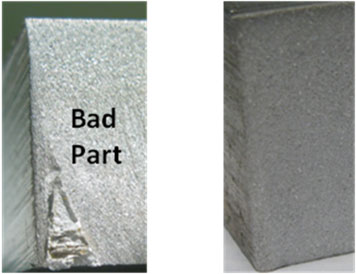

Figure 10 - Bad part on left showing excessive nib. Good part on right with minimal witness mark

Back to Index

Waterjet stream's effect on accuracy

Mixing tubes are made of extremely hard material, sintered boride. However, the nozzles are subject to wear and their cost must be taken into consideration for job costing. The orifice of a mixing tube will typically increase in diameter by about 0.001" per hour of cutting because of the erosion of the abrasive flowing through the nozzle. If this wear occurs in an even fashion, up to 120 hours of cutting can be realized with a nozzle. Controls allow for compensating for this wear by allowing the operator to change the tool offset.

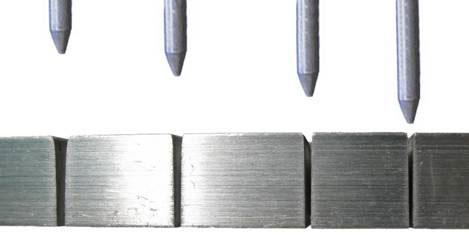

Figure 11 - New and used mixing tubes. Note orifice on right is off-center.

If the wear of the nozzle is not symmetrical, the waterjet stream will also not be round. This will result in wider tolerances when cutting in a certain direction.

The tolerance requirements of a job will dictate the actual number of hours a user can expect from a nozzle. The nozzle can, of course, be set aside and used later for looser tolerance jobs. Control software should allow the ability to track hours on individual components to make consumable management easier. See Figure 12 below for an example of orifice and mixing tube tracking.

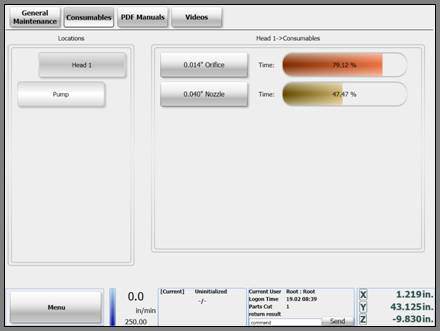

Figure 12 - Example of consumable life tracking
