Build a Waterjet
Choose your WARDJet Waterjet Gantry
Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 50" x 60"
Footprint:
81.88" x 76.71"		 Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 73" x 145"
Footprint:
201.00" x 102.00"		 Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 97" x 145"
Footprint:
205.96" x 121.00"		 Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 64" x 145"
Footprint:
203.26" x 90.00"

Z-45

Z-613

Z-813

Z-513
Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 73" x 145"
Footprint:
201.00" x 102.00"		 Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 145" x 156"
Footprint:
175.00" x 167.00"		 Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 145" x 156"
Footprint:
175.00" x 167.00")		 Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 145" x 156"
Footprint:
175.00" x 167.00"

Z-2043

R-1213

R-2013

R-3013
Abrasive & Pure Water
Cutting Envelope:
X-Y Travel 145" x 156"
Footprint:
175.00" x 167.00"		 Pure Water Only
Cutting Envelope:
96" X 150"
Footprint:
241.5" x 117.5"		 Pure Water Only
Cutting Envelope:
Footprint:		 Pure Water Only
Cutting Envelope:
Footprint:

R-4013

J-813

J-613

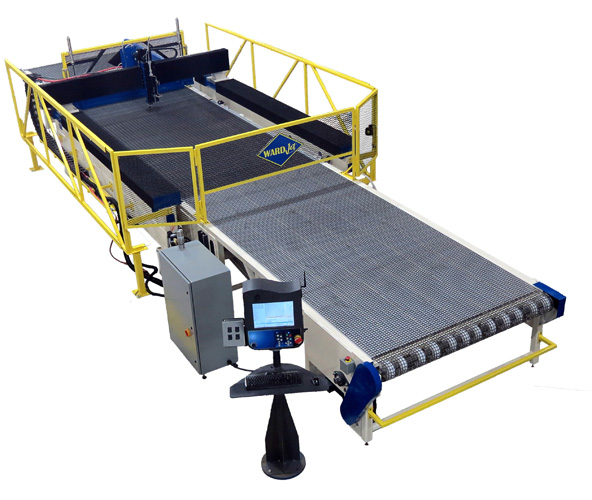

L-1010
Choose your Controller
  • 8-32 Programmable Axis
  • 100% Remote Access
  • 5 Axis Cutting Compatible
  • Programmable Z Axis
  • Consumable Tracking
  • Unlimited Software Upgrades
  • Dual Touch-Screens
  • 4 USB Ports
  • 4 Programmable Axis
  • 100% Remote Access
  • Programmable Z Axis
  • Consumable Tracking
  • Unlimited Software Upgrades
  • Touch Screen
  • 2 USB Ports
  • 3 Programmable Axis
  • Touch Screen
  • 1 USB Port

WARDJet X-Classic Controller

WARDJet XL Controller

Burny LCD 10
Choose your Pump.

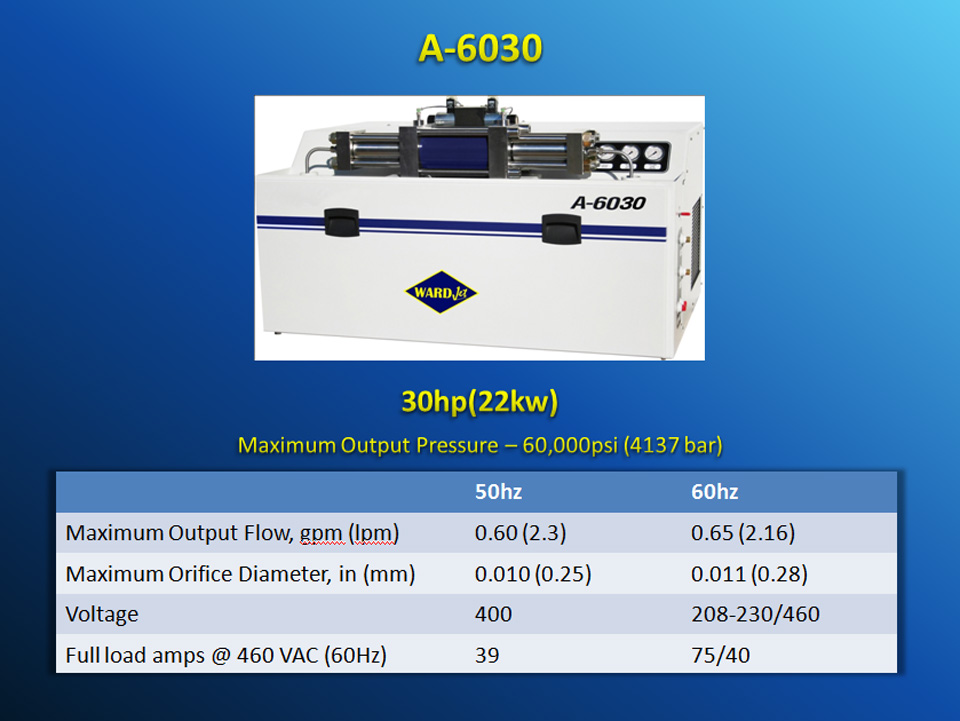

30hp, 60,000 psi, 380-240/480 volts 50hp, 60,000 psi, 380-240/480 volts,
oil cooling available		 75hp, 60,000 psi, 380-240/480 volts,
oil cooling available		 100hp, 60,000 psi, 380-240/480 volts,
oil cooling available		 150hp, 60,000 psi, 380-240/480 volts,
oil cooling available

WARDJet AS6030

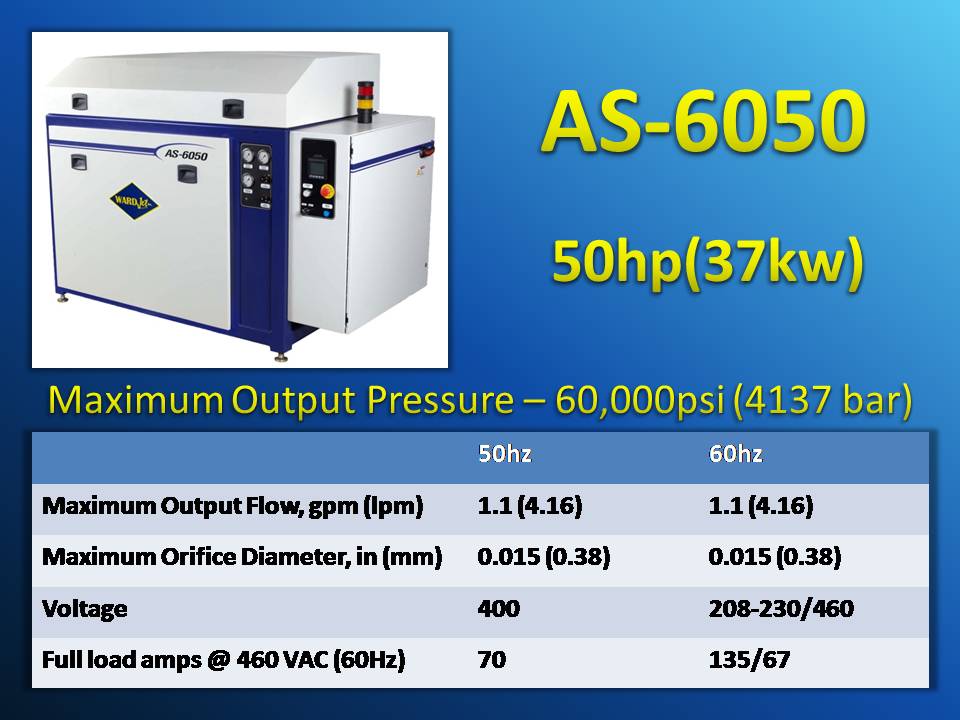

WARDJet AS6050

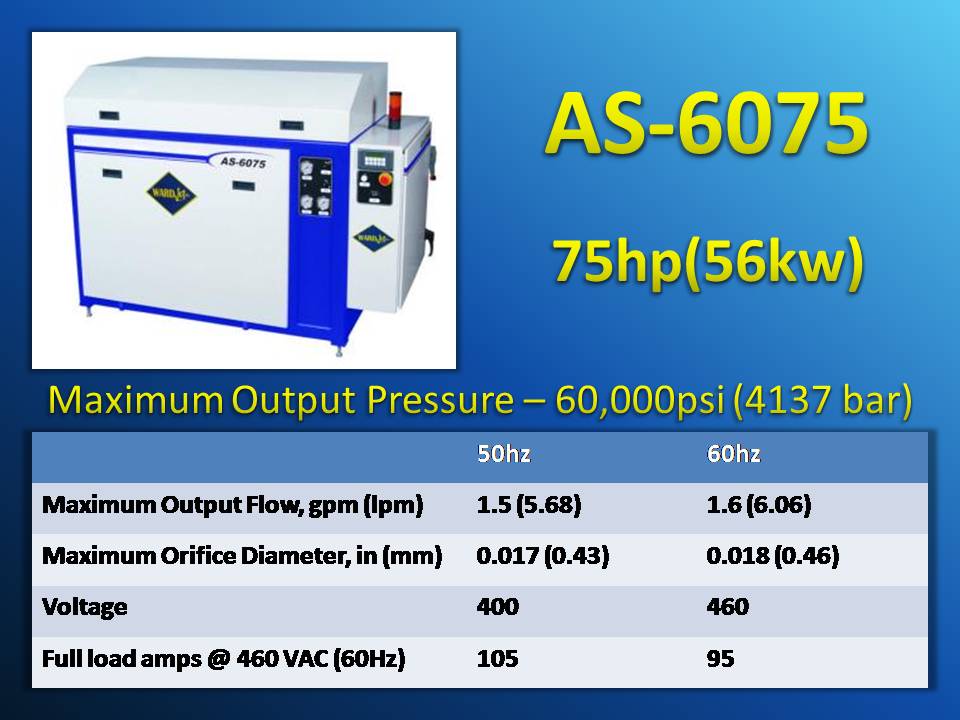

WARDJet AS6075

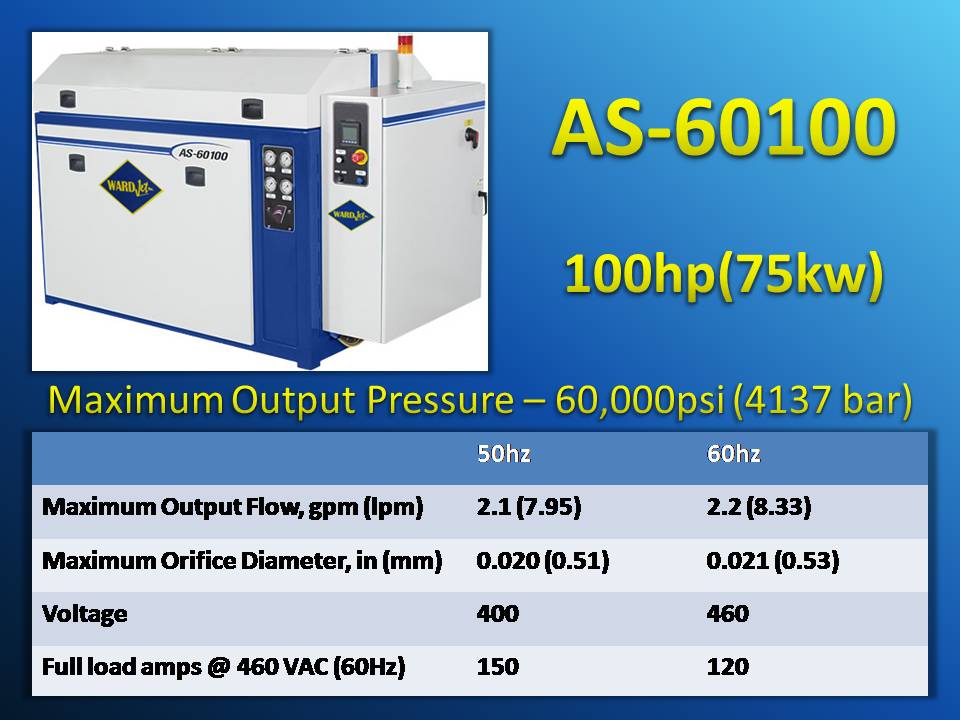

WARDJet AS60100

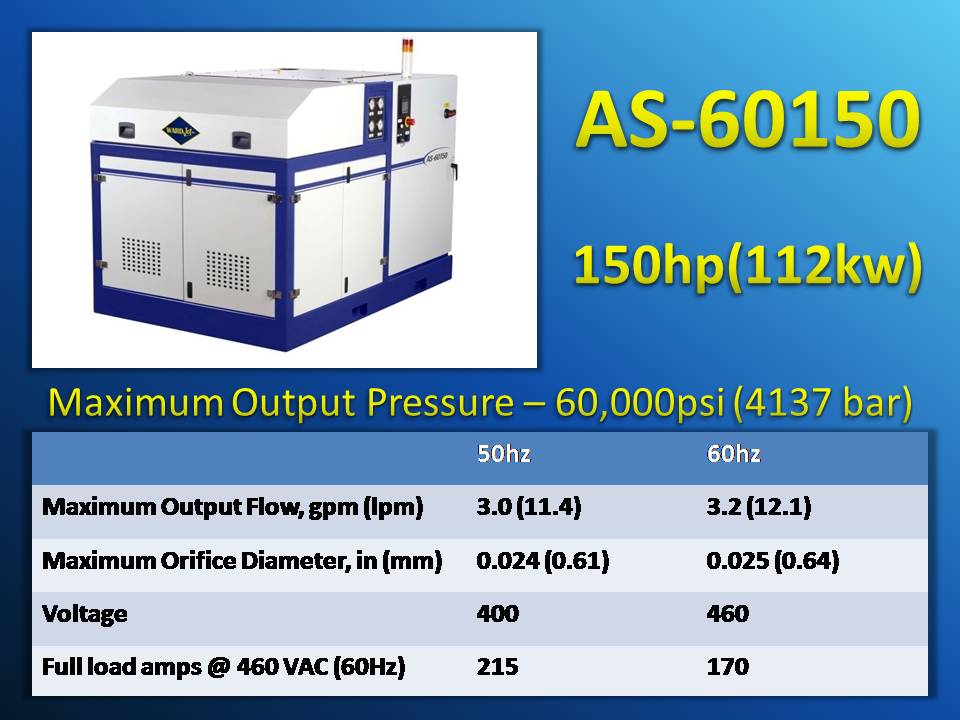

WARDJet AS60150

None

Choose your Chiller.

(Why do I need a chiller?)
Most 30HP pumps Most 50HP pumps Most 75HP pumps Most 100HP pumps

AIR 2000 - 24,900 BTU Chiller

AIR 3000 - 41,000 BTU Chiller

AIR 5000 - 55,100 BTU Chiller

AIR 7500 - 98,000 BTU Chiller

None

Choose your Grates.

Job Shop Grates/complete set

Heavy Duty Grates/complete set

Water Only Grates/complete set

Concrete Grates/complete set
Choose your Accessories.
Add additional cutting heads to increase your production. Reduces the chance of breaking a nozzle by keeping the cutting head a set distance above your material. Move, jog your carriages and more with the Wireless Pendant. Full remote access to your machine via Bluetooth or WiFi.

Additional Cutting Heads


1



2



3



4



5



6

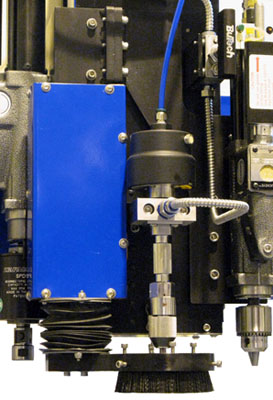

Height Sensor

Wireless Pendant

PDA Pendant
Check your pressure from a distance at-a-glance. Components will vary based on pump selected. The kits include specialized tools for doing maintenance work on your pump. A convenient toolkit for maintenance on your waterjet. Make things easy on yourself and start out with additional clamps.

High Pressure Gauge

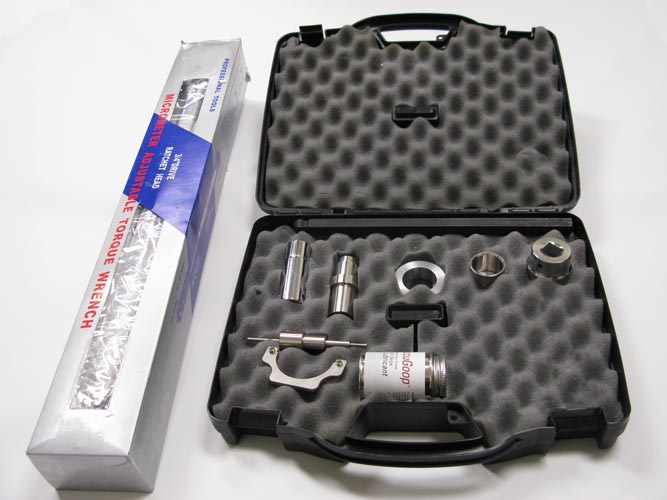

Pump Tool Kit

Convenient Top Drawer Tool Kit

Additional Clamps
The WARDJet Pneumatic Drill allows a hole to automatically be drilled through the material at a specific offset from the waterjet cutting head. Automatically thread a hole without ever having to take your material off the table. When cutting large numbers of holes, it could be a lot quicker to cut the hole with the waterjet to close tolerances, and then use a reamer to bring the hole to final size. This option projects a laser crosshair image onto the table to allow you to line up the part.

Pneumatic Drill

Pneumatic Tapping System

Pneumatic Reamer

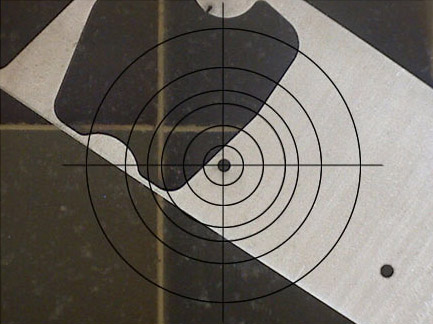

Laser Alignment Guide
The 2300 lb Hopper allows an operator to run the machine for more than one 8 hour shift without adding abrasive. An even larger bulk feed hopper is also available. Additional options to the bulk feed hoppers include low-level sensors to alert you when abrasive is low, and custom color paint. This option allows you to program the height of the cutting head along with the shape being cut in the X and Y direction. It is highly recommended that spare nozzles, orifices and seal kits be ordered prior to installation.

Increase to 2300 lb Bulk Feed Hopper


(1100 lb included standard)

Increase to 4400 lb Bulk Feed Hopper


(1100 lb included standard)

Programmable Z-Axis

Spare Parts Starter Kit
This option allows the pump to be switched on and off from within the program and activated from the controller. 208, 230, & 380 volts With the Variable Speed Mini Hopper installed the result is less blockages in the pierce procedure, and a substantial increase in consistency when low pressure piercing. This unit removes abrasive and kerf material from the waterjet tank – nearly eliminating the need to dig or clean out the tank. This is the front end of the
WARD Pro.

Remote pump on/off

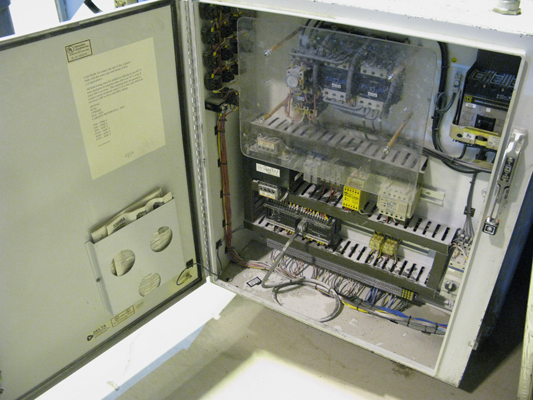

Pump Voltage Change

Variable Speed Mini-Hopper Upgrade

Abrasive Removal-Only System
Abrasive Recycling
With more than 100 WARD units installed worldwide the WARD product series have earned a reputation for recycling abrasive reliably, consistently and efficiently. With that in mind we have improved upon our design to bring you the WARD PRO. The WARD PRO will give you good reusable abrasive that will save you money and resouces. You will reduce waste and cost with this innovative and effective solution.
  • Dust Collector
  • Dual Abrasive Transport System
  • Dual Abrasive Splitter
  • DAR(standard) & DART(optional)
  • Easy Maintenance
  • Heavy Duty Construction

WARD Pro (Waterjet Abrasive Recycling Dispenser)
The Drum Abrasive Recycling system is designed specifically to process recycled abrasive into the WARD Pro. You can put up to 4000 lbs of abrasive / waste material into the DART (top unit) which removes large particles such as material drops, off cuts, tools that may have fallen into the tank, etc. A recycling removal nozzle is placed at the bottom of the DAR (bottom unit), the contents are agitated and the materials are processed through the recycling unit. The DAR will empty completely when used. The DAR and DART units are specifically built to be loaded in any fashion, such as, from drums or with a front-end loader, containing all off-cuts and kerf material. The oversized waste is separated out in the DART while the DAR will facilitate the continuous operation of the WARD Pro to recycle the abrasive for reuse. The DAR unit comes standard with a diaphragm pump. The DART fits into the top of the DAR and allows for even greater abrasive capacity.

DART Unit
Choose your Software.
Our Nesting software allows the nesting of many complex parts into one part program. Read More... This option provides you with sign making capabilities including TTF, CXF and SHX font support and raster to vector conversions.
Read More...		 The floating network license lets you install the software license on a server.
Read More...		 One license for our CAD/CAM Software comes standard with a purchase of a WARDJet waterjet. Additional licenses are available for an additional cost.

CAD/CAM Nesting Package

CAD/CAM Signmaker Package

Floating Network License for CAD/CAM Software

Additional CAD/CAM Software Licenses
