6 Head Waterjet Retrofit Brings Life To A Discontinued Plasma

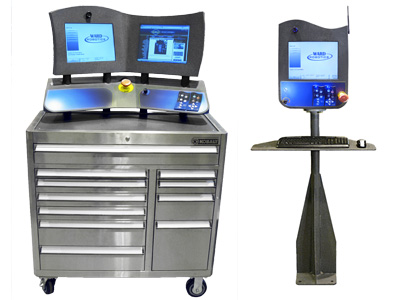

Bring life to your older plasma / oxy fuel systems.  We do hardware retrofits as well as controller retrofits.  This unit has 6 heads that are independently spaced relative to each other, all mounted onto what was a plasma cutting system.  We modified the front control panel to receive two touch screens with our membrane panels installed for each cutting head. This unit will be controlled with a WARDJet X-Classic controller.

Rich

WARDJet is pleased to announce that their website is now available in multiple languages.

Spanish, German, Russian, Portuguese and Chinese.

JXL-86 Tank

Here is a JXL 86 tank being built on our floor. This unit will have a chain feed system with pinch feed roller.

Rich

Retrofit of Cross Beam 18 Feet

So this looks like a cross beam mounted onto an old plasma gantry.  And it is.  But what makes this interesting, is we were sent the old plasma cross beam with supports welded onto the frame.  We then used the FARO laser tracker to map the actual positions of the supports and holes in 3D space.  This was then put into SOLIDWORKS and the standard WARDJet cross beam was modified so the new cross beam matched the support sent to us.

The beam was fabricated, heat stress relieved, machined, fitted as you see on the photos, and will now go to powder coating, back to have the linear rails fitted and final fabrication.  When we placed it into position today, it fit perfectly.

Rich
