G-Series Waterjets

This combination CNC 5-axis mill (up to 20 hp and 26,000 rpm) and 5-axis waterjet system is built to easily handle all those larger applications where waterjet cutting and CNC machining are required on the same part. With 5' (1.5m) of Z-travel standard, 13' or 20' (4m or 6m) cross beam, unlimited length, and built for multiple cutting heads and Z-carriages, the G-Series is ideal for aerospace, nuclear, wind, and heavy engineering applications.

Unique to the G-Series is the ability to cut the full 5' depth vertically up the side of a wall without fouling the Z-carriage body.

WARDJet/AMRC Open House in the UK

WARDJet, a leader in waterjet innovation, was proud to co-host with the University of Sheffield Advanced Manufacturing Research Centre with Boeing an open house in Sheffield, UK at the end of January 2013. The main attraction was the newly installed GCM-Series 5-axis waterjet and 5-axis composite mill.

This unique combination machine was designed to allow a single part to be processed with 24,000 rpm 5-axis milling and 5-axis waterjet cutting without moving the part. The cutting envelope is split with one section having a standard waterjet tank, leaving the remainder of the cutting envelope open to allow very large parts to be mounted onto the floor. The cutting envelope also allows 5 feet (1.5 meters) of Z travel for both the mill and the waterjet.

For the event, the GCM Series waterjet cut and milled a carbon fiber cylinder with the dimensions of OD 26.7” (679 mm) x Height 28.2” (717 mm) with both of the co-hosts’ logos. The diamond of the WARDJet logo was milled into the 5 mm wall at a depth of approximately 2 mm. A fixture was prepared by our WARDJet engineer to hold the large cylinder on the cutting table and to absorb the remaining energy of the waterjet stream to protect the opposite side of the cylinder.

The event included an introduction to the state-of-the-art AMRC with Boeing’s history and goals followed by a speech by WARDJet owner, Richard Ward, about the newest technology in waterjet cutting. Immediately following, attendees enjoyed a tour of the AMRC with Boeing facility which culminated with time at the GCM-Series waterjet. After a dry run of the carbon fiber cylinder demonstration part, attendees interacted with the machine and discussed its capabilities with the WARDJet representatives.

If you have any questions about this unique machine and its capabilities, please feel free to contact us at sales@wardjet.com.

Open House

5-axis Waterjet Cutting Head

GCM-Series 3D Waterjet Cutting

GCM-Series 3D Milling Head

Diamond Milled with 3D Milling Head

Open House Attendees Getting a Closer Look

GCM-Series

GCM-Series Model

GCM-Series

GCM-Series Waterjet

GCM Side Supports, Rails, and Risers

GCM Crossbeam Fabrication

Exploded View of GCM Crossbeam 3D Model

GCM Pinion Comparison

GCM Pinion

GCM Y-Axis rack and Pinion

GCM 24,000 RPM Milling Head

GCM CNC 5-axis Heads

Infini Winder 5-axis Waterjet

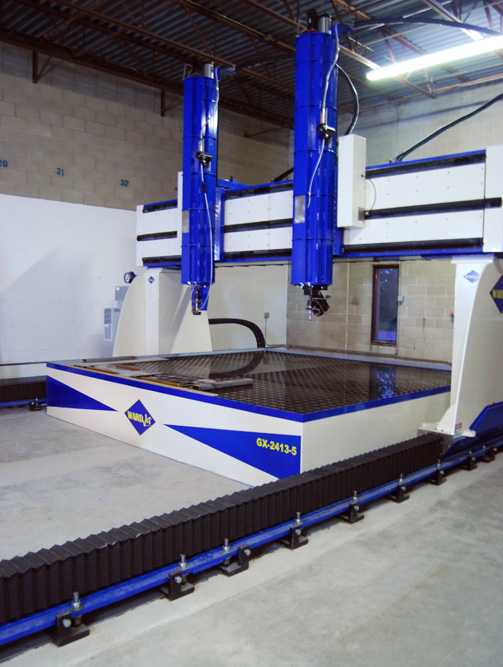

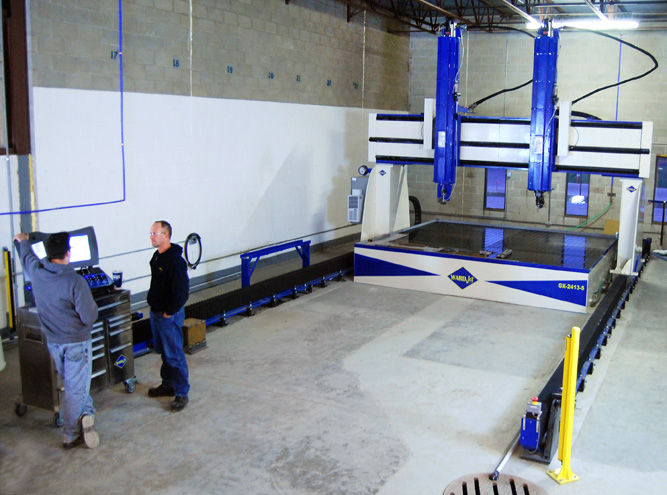

G-Series

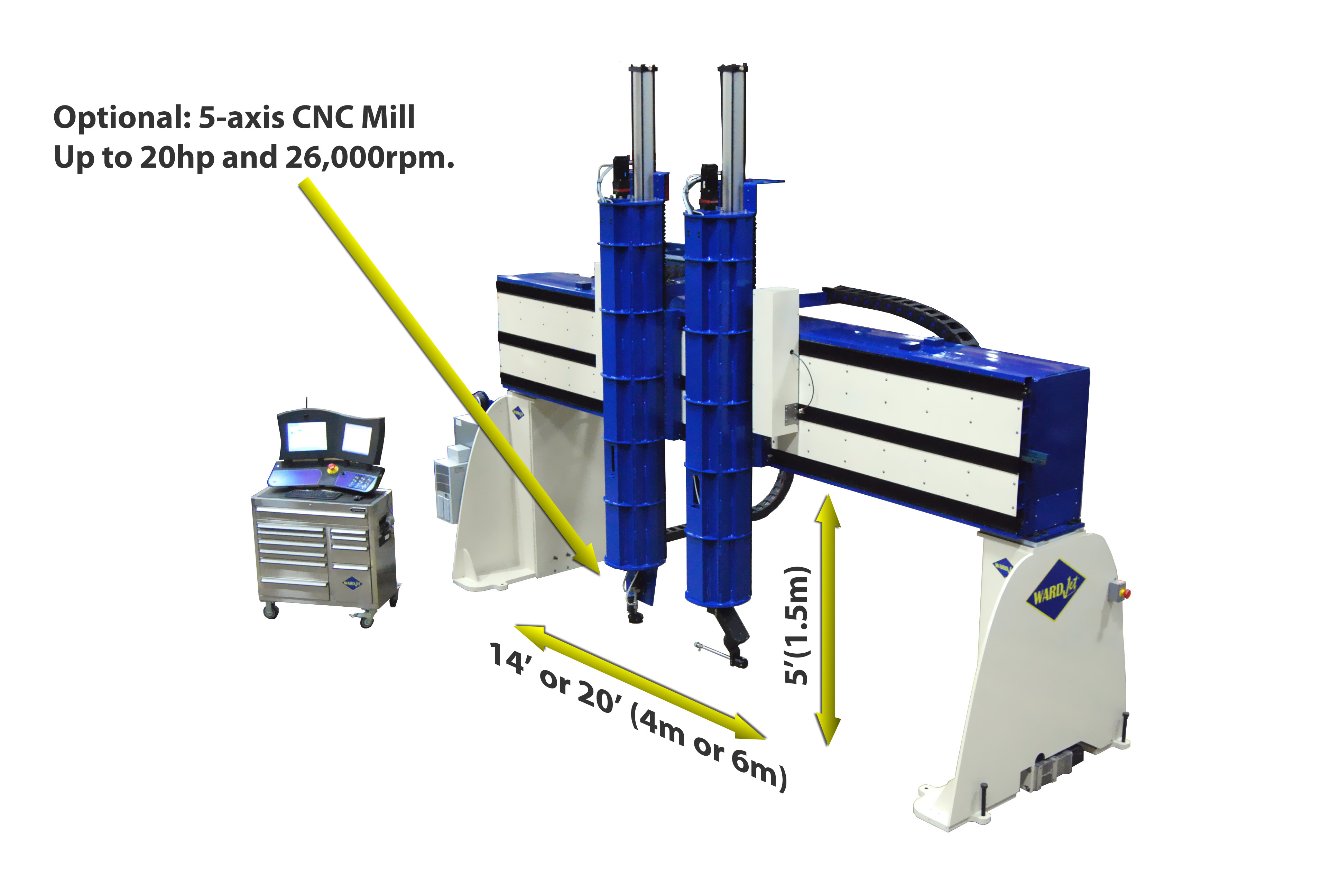

G-Series Dimensions

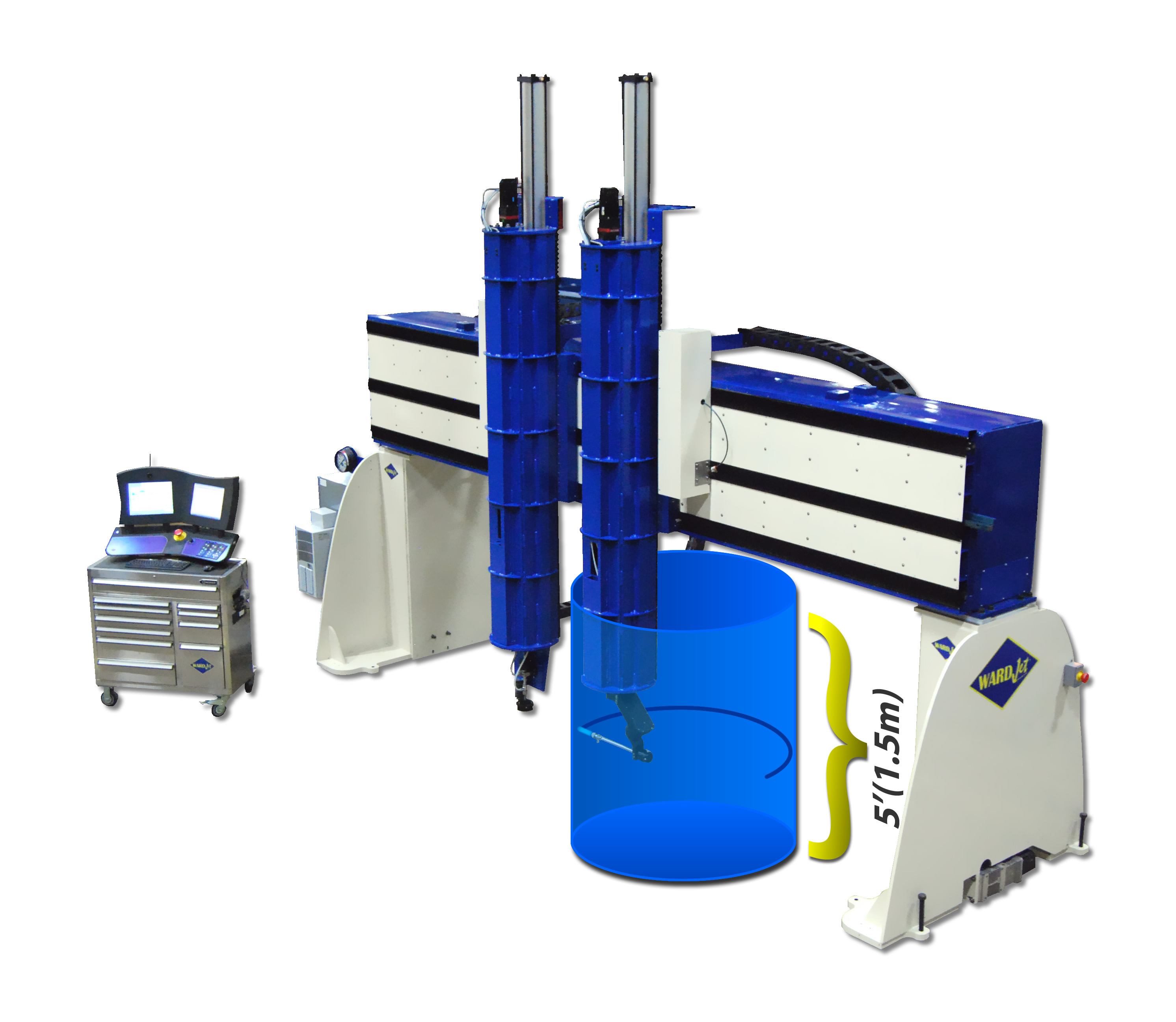

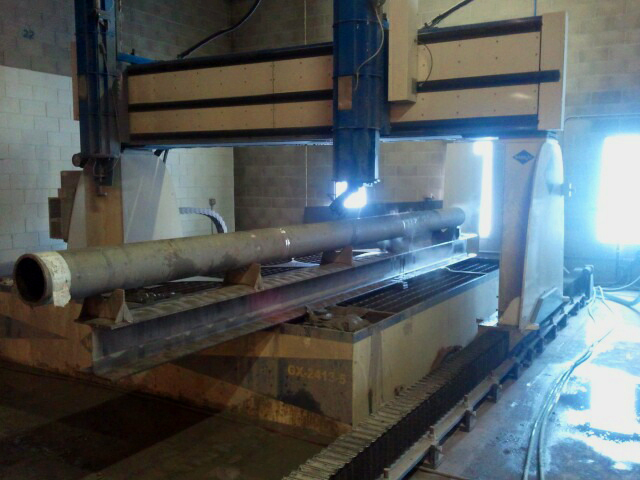

G-Series cut inside materials up to 5' (1.5m) tall

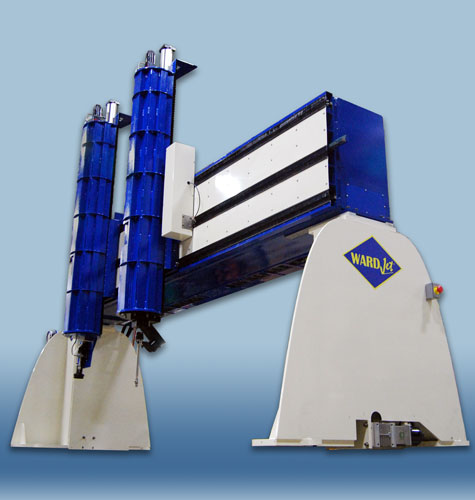

G-Series Gantry

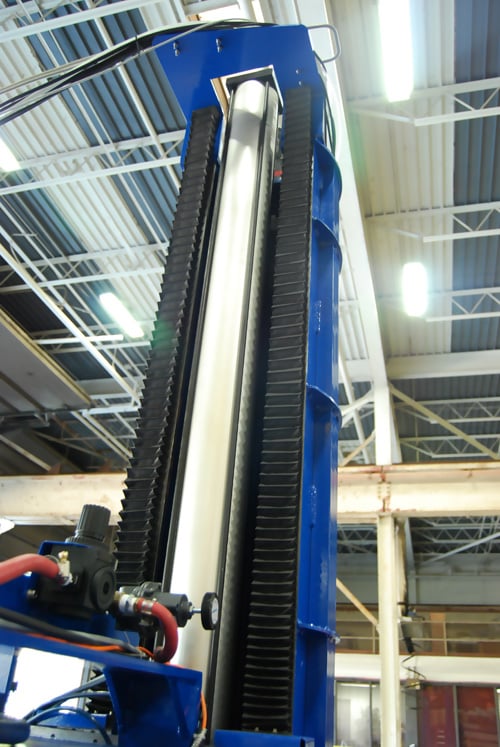

Pneumatic Counter Balance on Z-Carriage

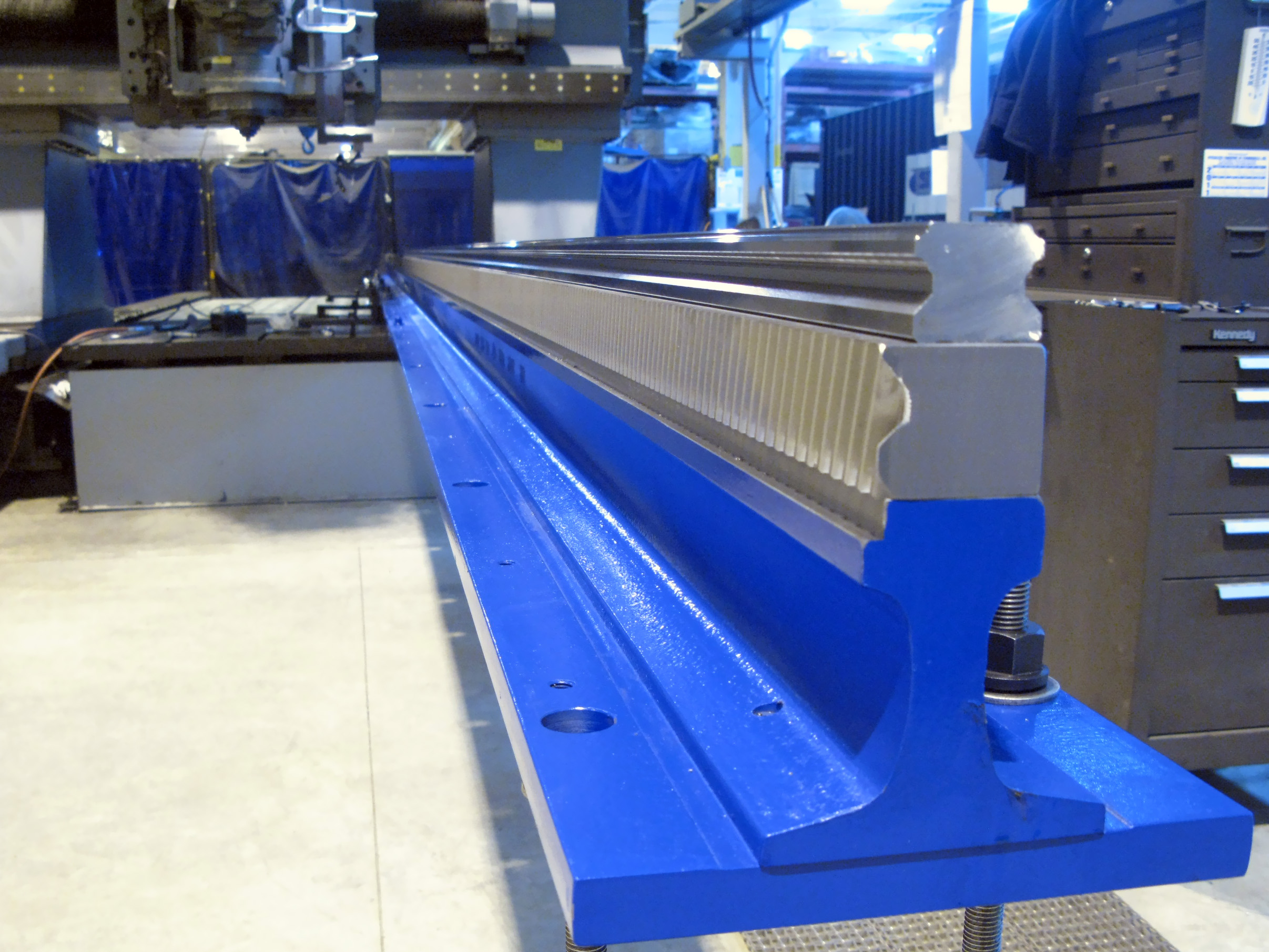

Precision ground helical rack with split pinion

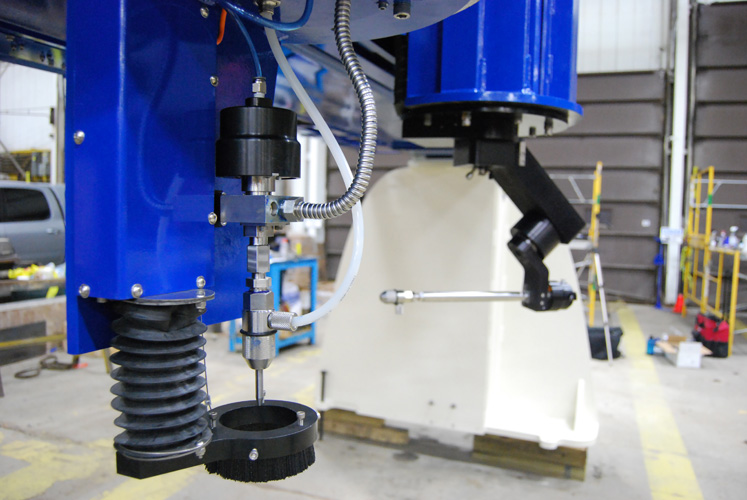

Standard and 5-axis Cutting Heads

G-Series Gantry

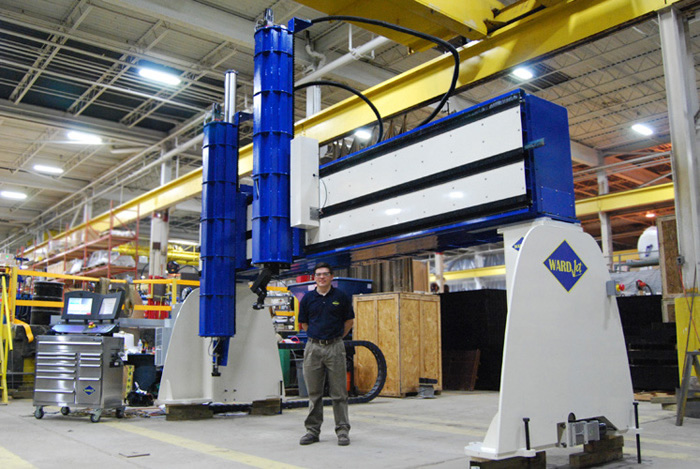

Tall enough to stand under!

Videos

GCM In Action - New

Waterjet Cuts Car into Convertible

G-Series Features

Standard Sizes: Crossbeam travel 13'(4m) or 20'(6m) wide. Z axis travel 5'(1.5m). Unlimited length.; Custom sizes available.
Multiple Independent Z-Carriages: Multiple independent Z-axes independently driven and programmable in Y, Z, A, and C. Z-carriage has pneumatic counterweight cylinders balancing the weight.
Drive Systems: Drive systems are heavy duty, Atlanta Drive (German) precision ground helical rack with zero backlash, split pinion, and automatic lubrication. Z-carriage is ballscrew driven.
Cutting Capability: Cut vertically 5' (1.5m) up the face of a wall. 5-Axis cutting from vertical to horizontal can be programmed to operate as an “A-B” or “A-C” mechanism.
Cutting Tools: Standard Waterjet Cutting heads, 5-axis Cutting heads, and Routers for milling are able to be installed.
Infini-Winder: Infini-Winder 5-axis cutting head with unlimited rotation (no wind up required).
CNC 5-Axis Milling and Machining Options: 5-axis CNC machining with 5 hp, 10 hp, 15 hp or 20 hp. Varying speeds from lower rpm to over 20,000 rpm. Tool changer – specify number of tools.
CMM – 3D Probe Option: Probes can be integrated with laser sensing, allowing the gantry to be used as a form of CNC measuring device to check part size before and after machining.
Multiple Cutting Heads: Multiple cutting heads can be mounted with multiple Z-carriages or on spreader bars.
Safety: Many safety features ensure safe operation for your people and business.
X-Classic Controller: Controller accepts ANY CNC file, is free from the gantry to move, uses Windows® XP Professional, is fully networkable,has total remote control access, uses simple clean wiring to controller, has 15" Touch Screens, has tactile Membrane Panel Controls for up to 7 Z-carriages, and more. Read More »
Options: All standard options found on WARDJet abrasive cutting systems are available on the G Series including:
Drill, Reamer, Tapping, Thread milling, Inkjet printing including bar codes, logos and part numbers, Dot peen marking, 5-axis height/crash sensor for continuous adjustment while bevel cutting, Remote control, Infinitely variable abrasive-flow/mini-hopper.
Want to know more?: Please call or visit us to learn more about this standard, proven, tested, and tried unit. You will be impressed.
