Choose pump for more information:

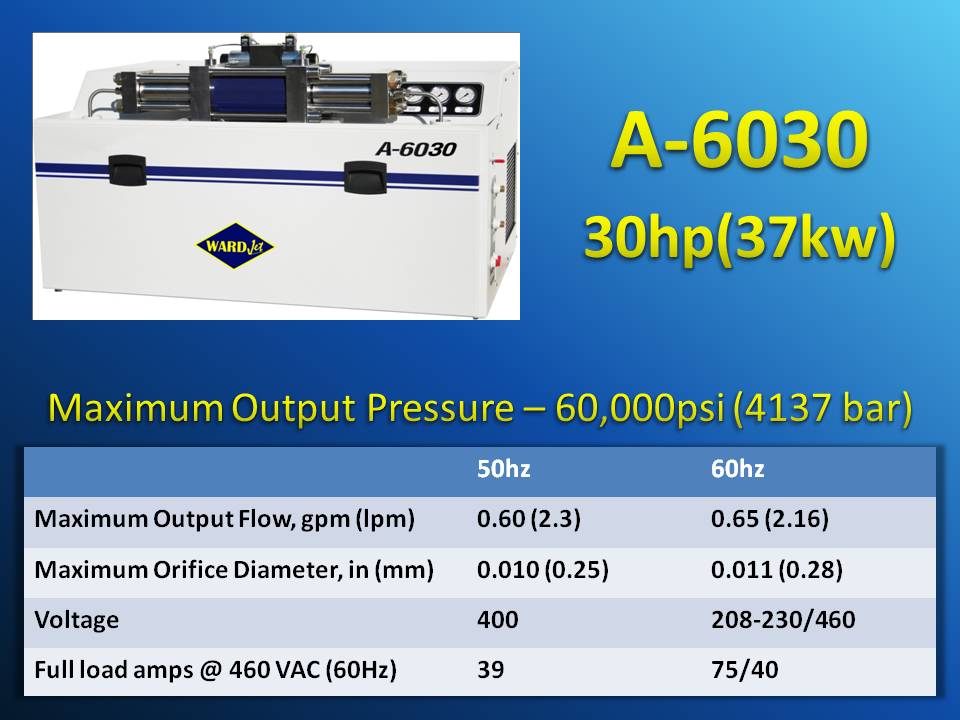

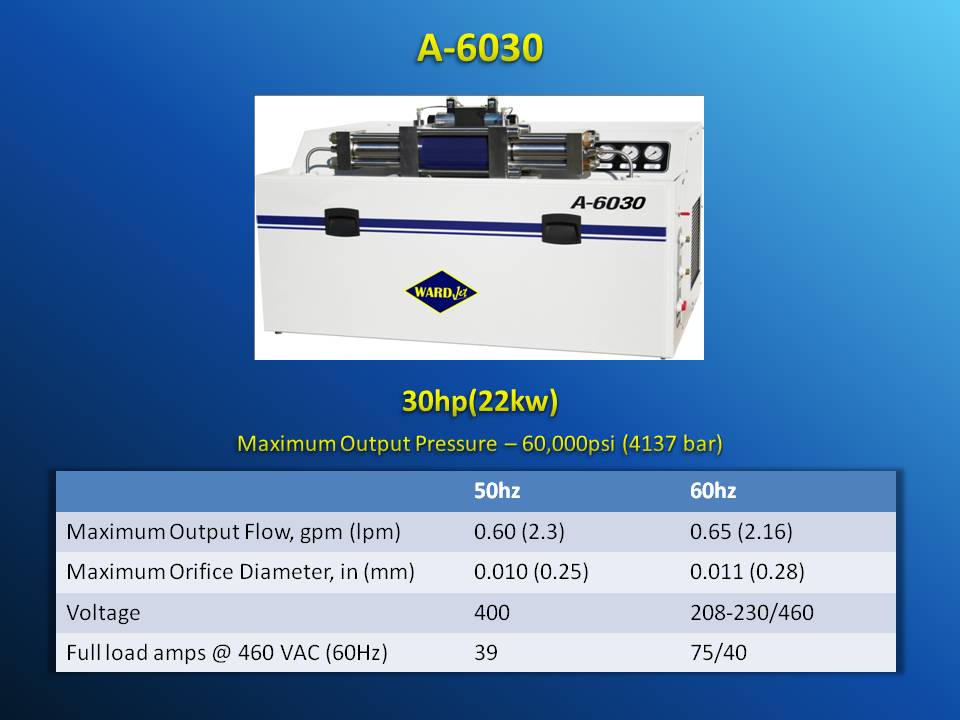

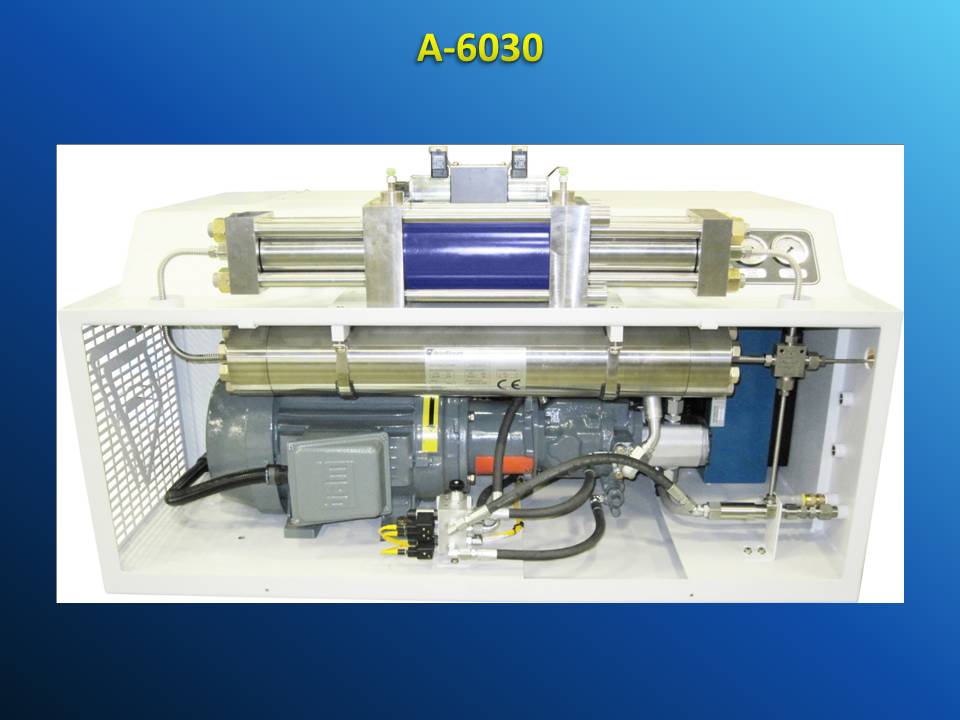

(30hp) |

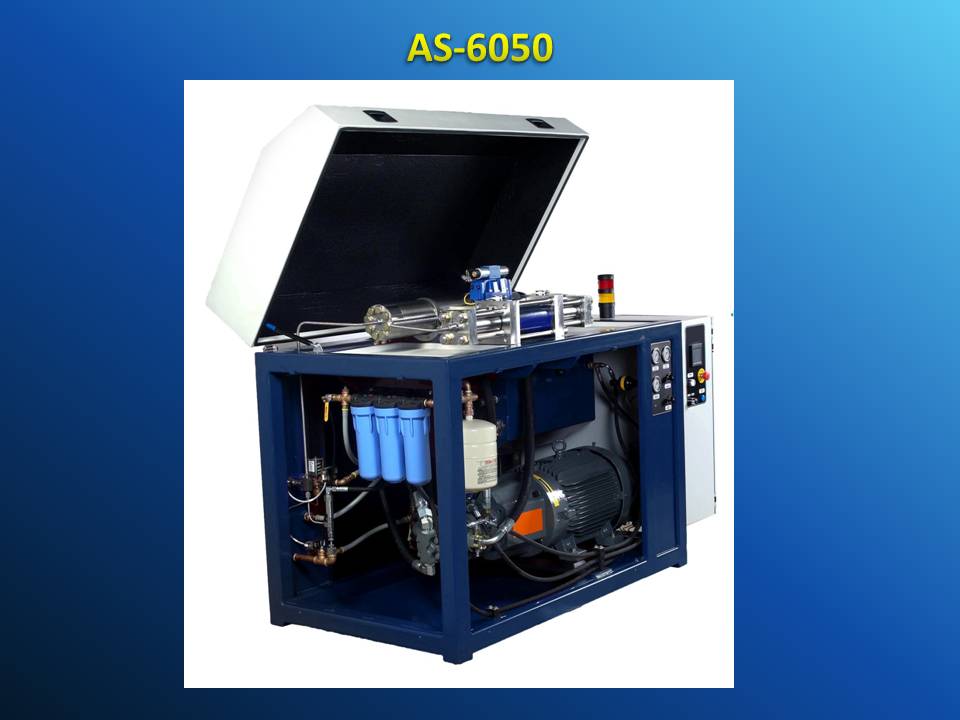

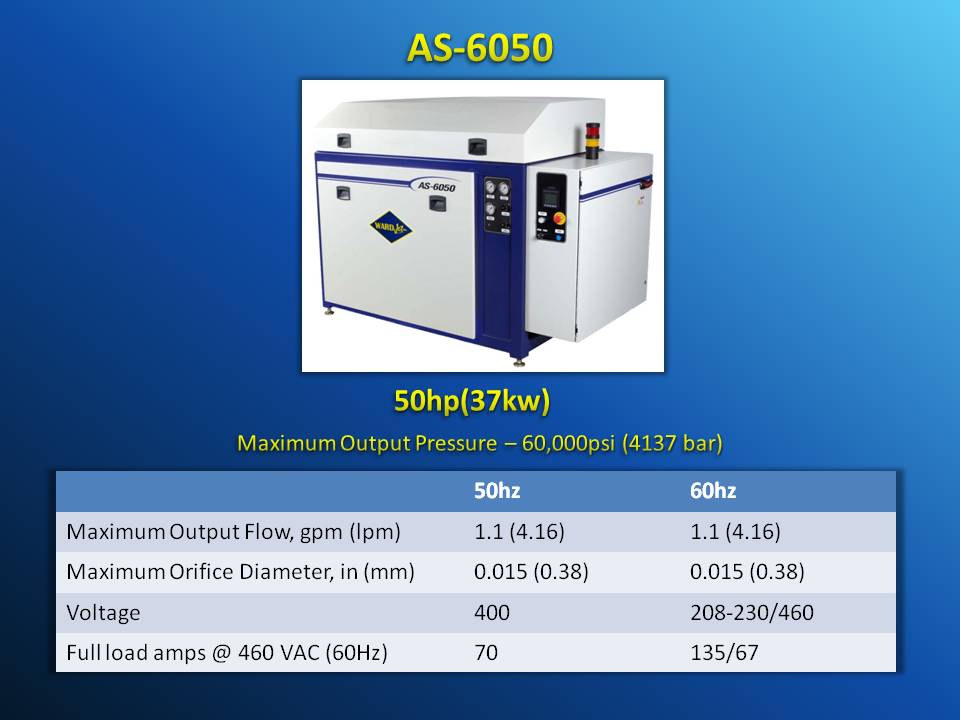

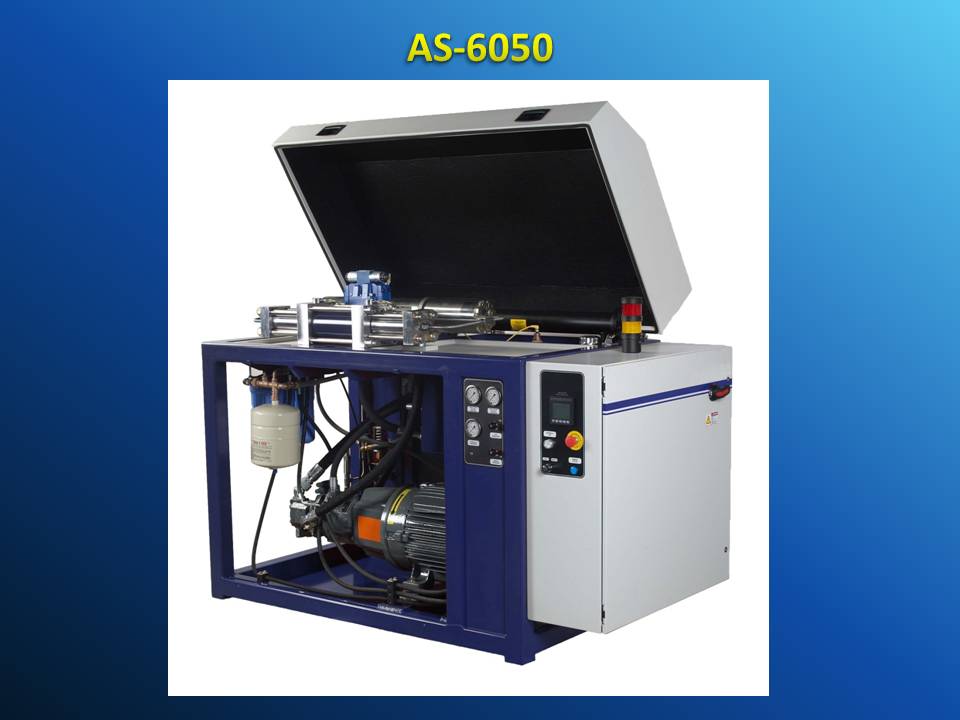

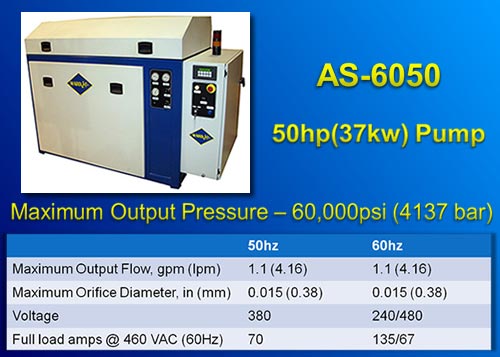

![]() (50hp) |

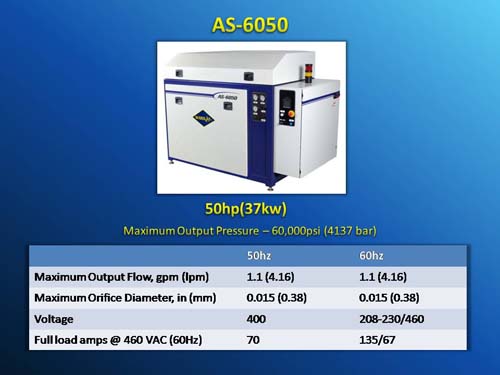

![]() (50hp) |
![]() (60hp) |

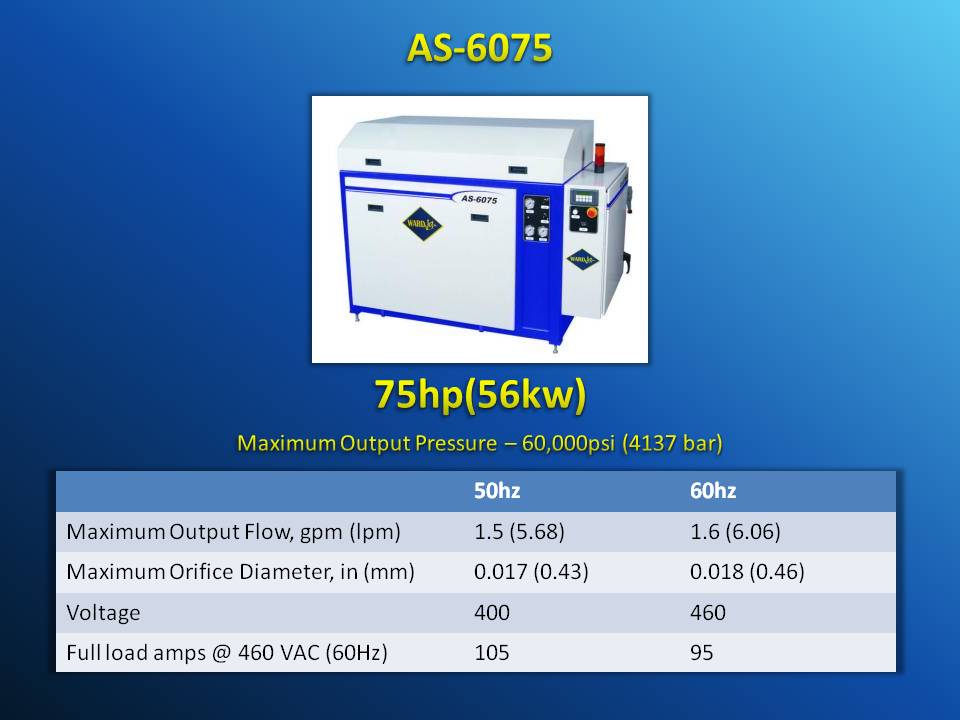

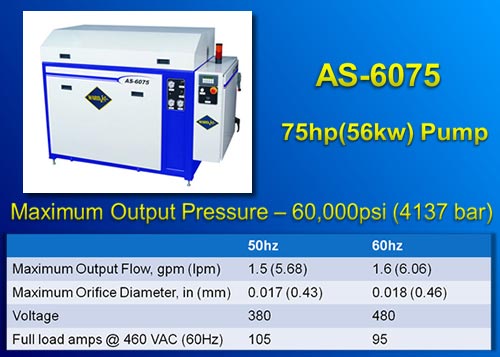

![]() (75hp) |

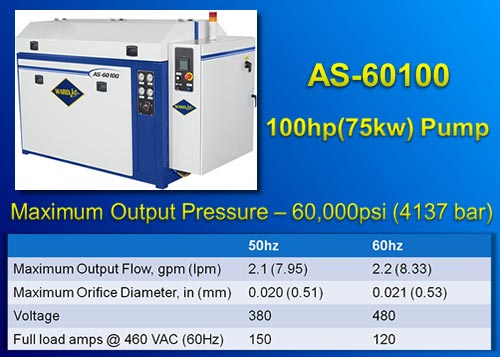

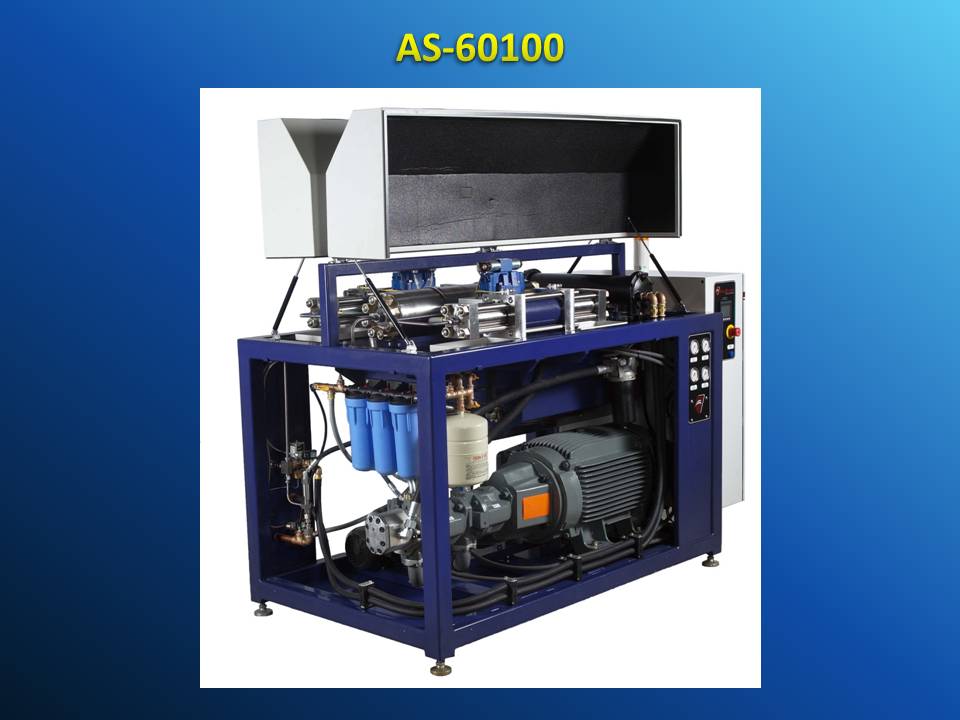

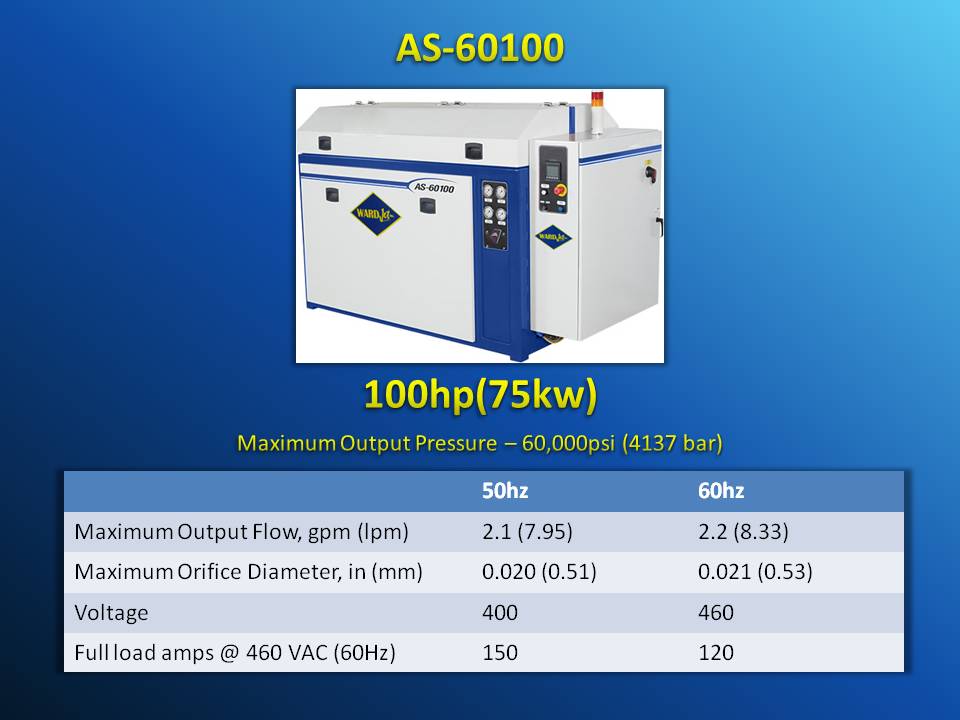

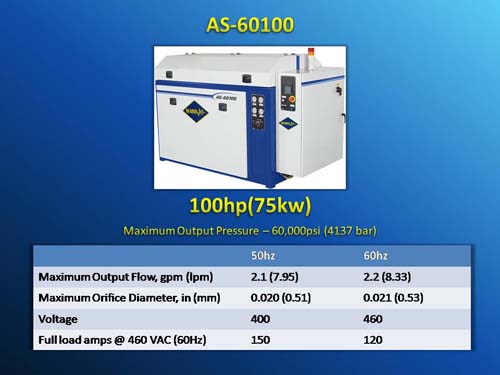

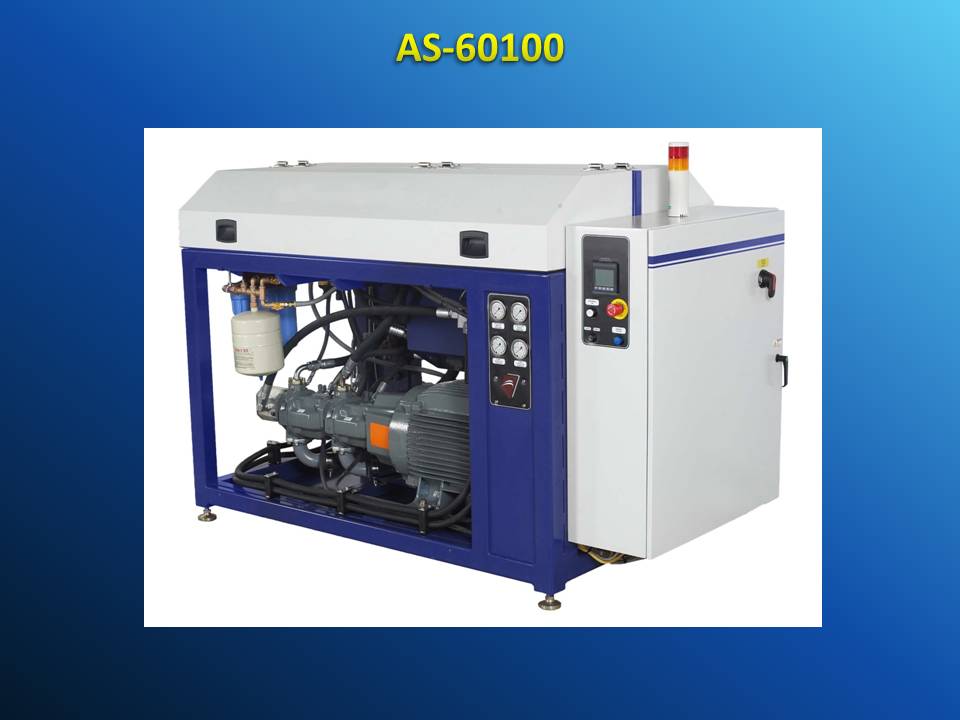

![]() (100hp) |

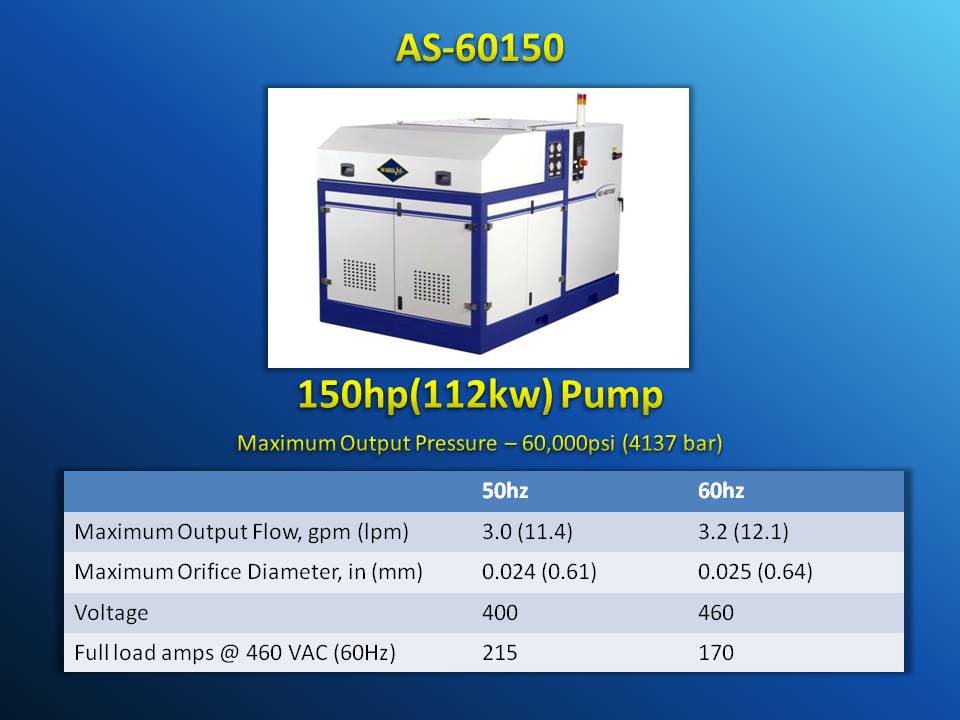

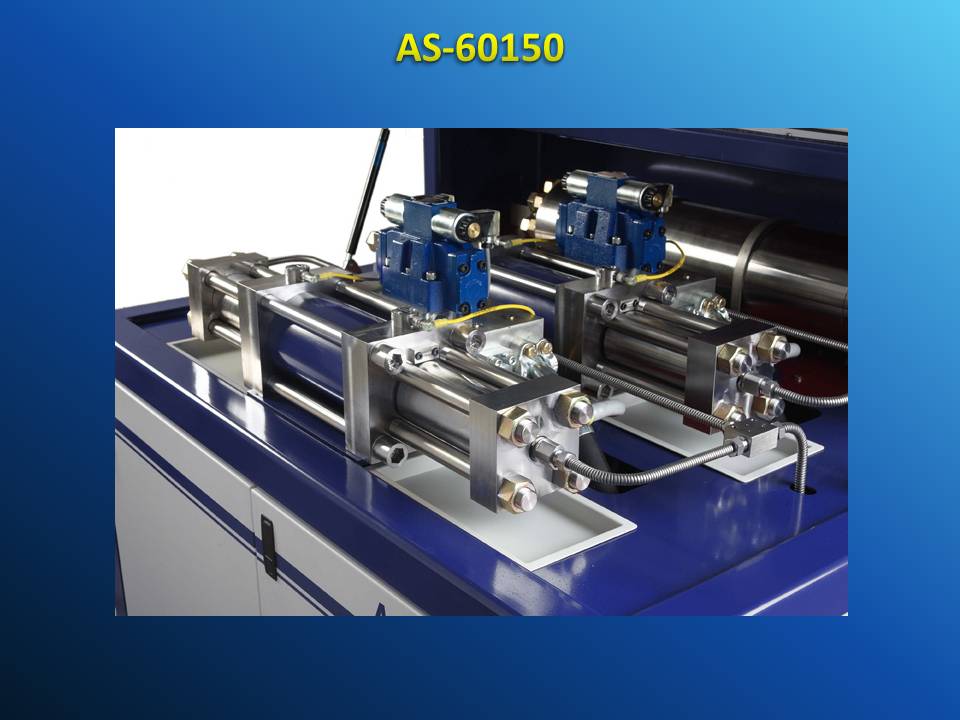

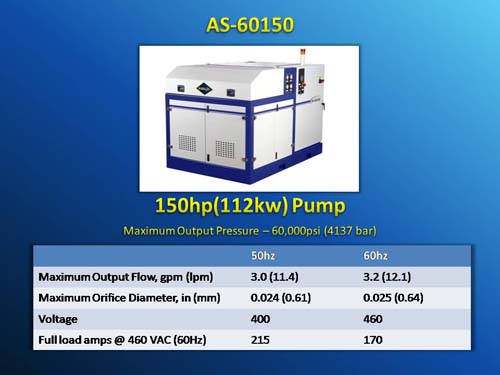

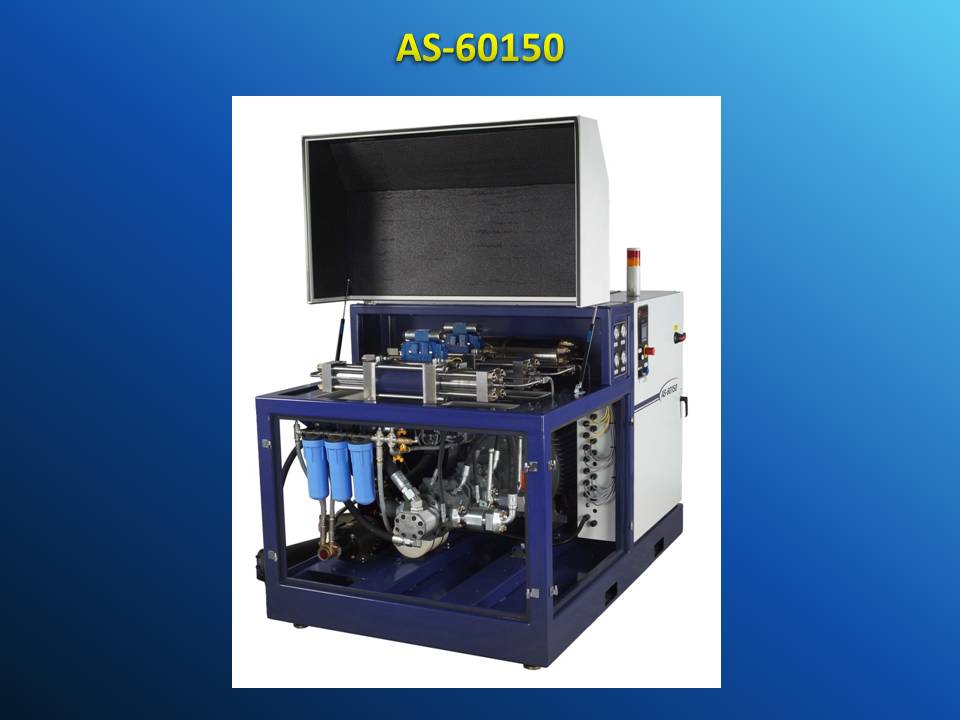

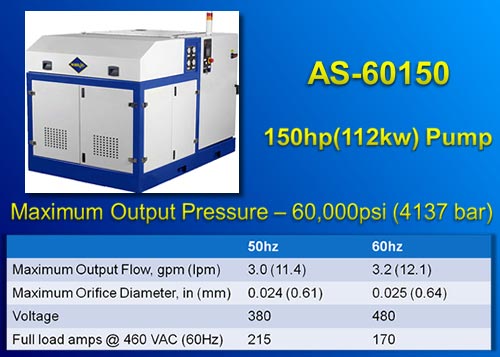

![]() (150hp) |
90,000 psi Pumps Available Upon Request
Whatever your cutting application, there's a WARDJet AS-Series intensifier pump designed to meet your needs. WARDJet offers a full range of reliable, efficient waterjet intensifier pumps for around-the-clock operations, small prototype jobs, and every application in between. You'll find pumps engineered to meet the demands of multiple head abrasive cutting, as well as those that are ideal for water-only cutting. All WARDJet pumps are engineered to be easy to operate - and even easier to maintain.

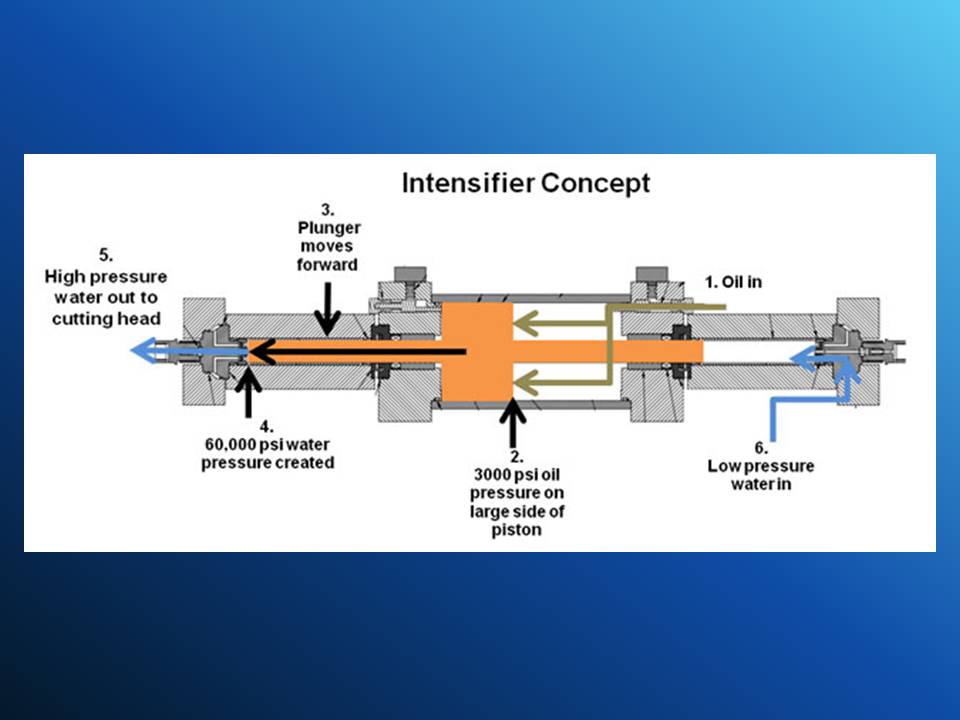

Read about the technology behind Intensifier Pumps in the Waterjet University.
WARDJet Control CenterA touch screen panel guides the operator through operation, troubleshooting, and maintenance logs. This lets you access the most powerful features and functions with the touch of a screen. |
Built to LastWARDJet brings decades of experience, rigorous research, and ongoing product development to everything we do. The combination of intelligent engineering and quality manufacturing add up to a pump that delivers maximum longevity and reliability. |

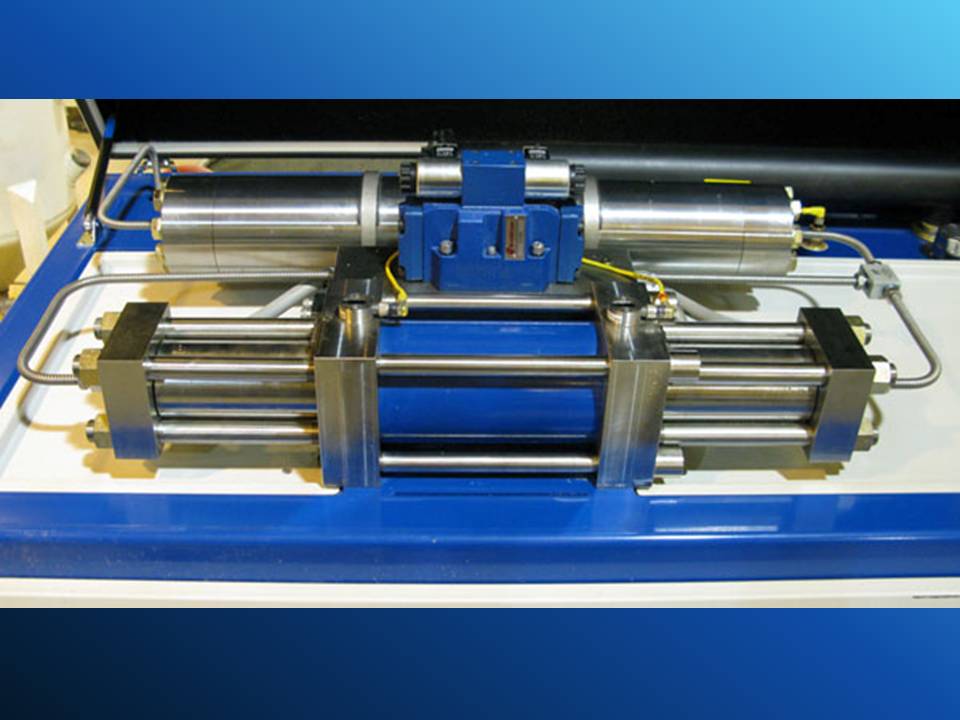

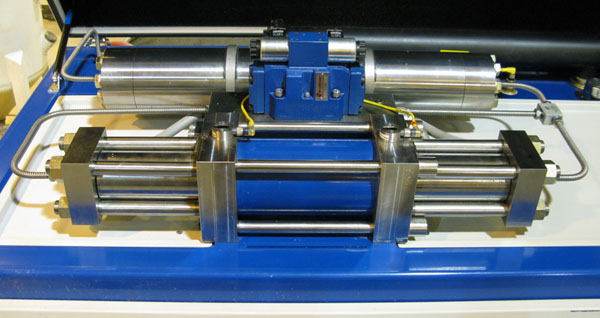

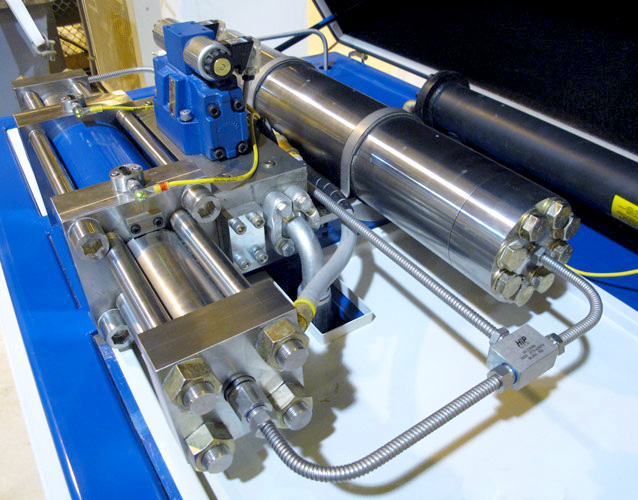

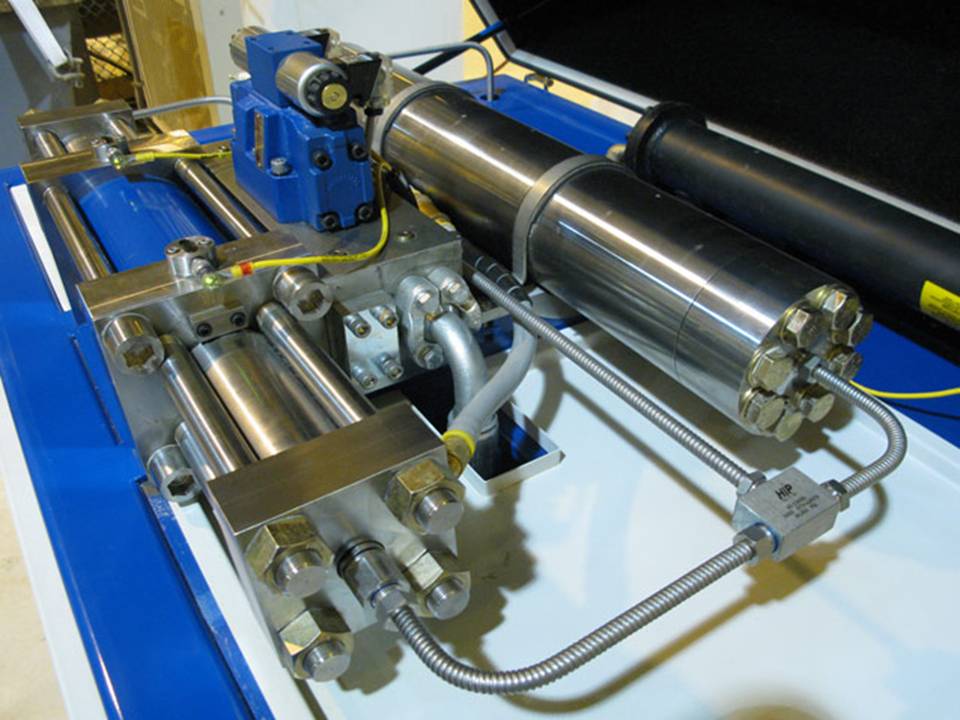

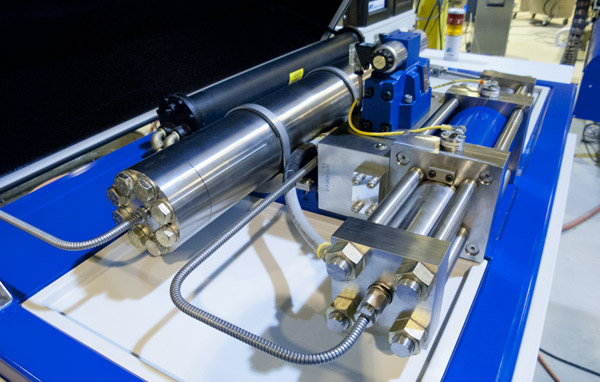

Advanced Intensifier Technology™ (AIT)AIT is our exclusive technology and an integral part of the AS-Series pumps. Our unparalleled user-oriented innovations facilitate longer maintenance intervals and rapid component replacement. |
Added VersatilityEquipped with high and low pressure settings (ideal for piercing brittle materials). |

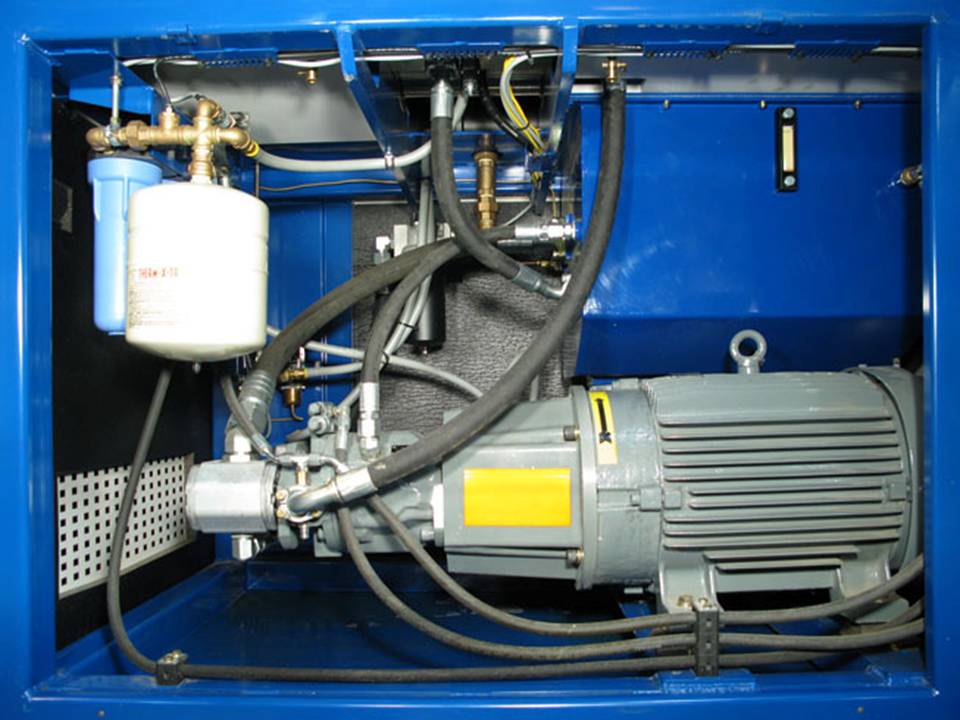

Enhanced Hydraulic CircuitKidney loop circulates oil through a heat exchanger and oil filter, away from intensifier pulsations. When the pump is in standby, the oil is cool. (Available on 50+hp pumps) |

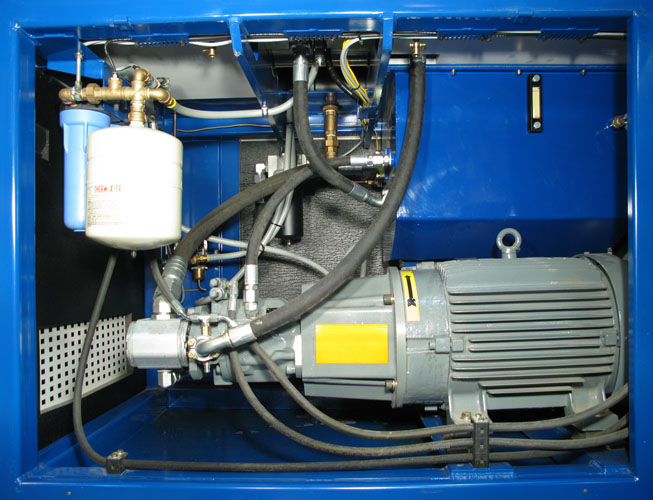

Efficient Pressure GenerationHigh efficiency TEFC motors deliver reliable power with minimal electric consumption. Wye-Delta soft start reduces inrush current for 50+ hp pumps. |

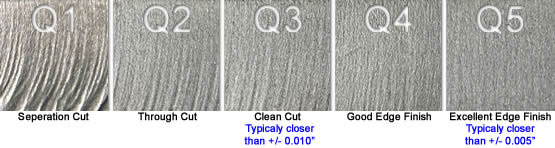

Superior Cut Quality
Single large volume attenuator provides even output pressure to ensure optimal edge quality. Read more in the Waterjet University. |
Smooth High Pressure WaterPressure-Compensated hydraulic pumps and exclusive electronic shift technology maintain smooth ultra-high pressure water at the cutting heads. |
Operation ConveniencePanel-mounted display pressure gauges allow easy monitoring of inlet water filters and hydraulic performance. |

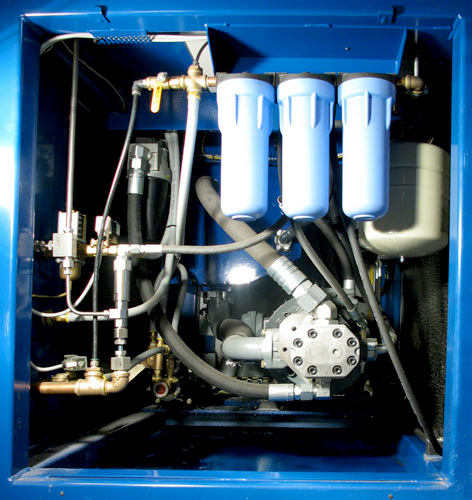

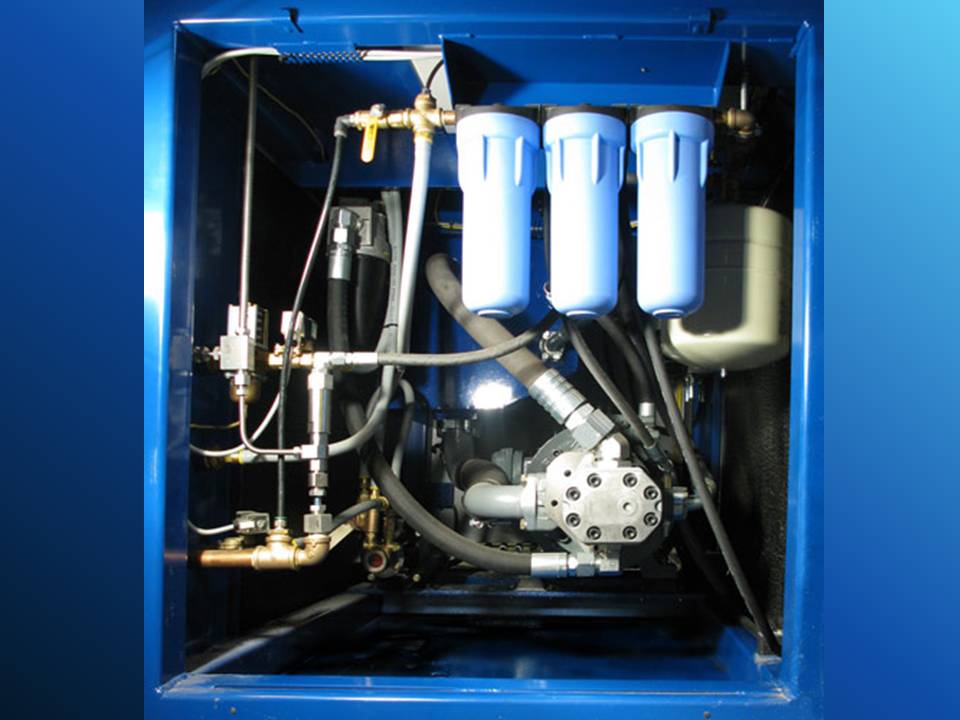

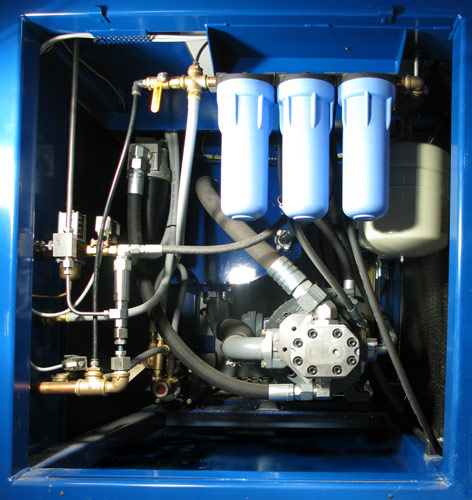

Maximum Cutting PerformanceAn inlet water filter system removes impurities to maximize cutting head performance. Boost pumps increase inlet water flow for 50+ HP pumps. |
Remote OperationKey switch enables all pump features to be operated and monitored at either the pump or remotely from a CNC controller. |
Safe OperationSafety dump valve relieves system pressure in case of a shutdown. |



Micro-SD Card ReaderTransfer pump maintenance and alarm logs quickly and easily. Download the latest WARDJet system software updates. |
More Intuitive Than EverEasy-to-understand graphics guide the operator through the steps necessary to operate and maintain the pump. |
Password ProtectedProtect your pump settings and configuration to prevent editing by unauthorized personnel. |
Operation Made EasyThe Quick Help feature provides fast answers when they're needed most. No more searching through system manuals for basic information. |
Optional Ethernet InterfaceTransfer data between your WARDJet system and a network or PC. This option allows advanced remote control and remote troubleshooting. |
Advanced Intensifier Management (AIM)Built-in troubleshooting charts and detailed intensifier graphics provide rapid access to diagnostics and maintenance logs. |

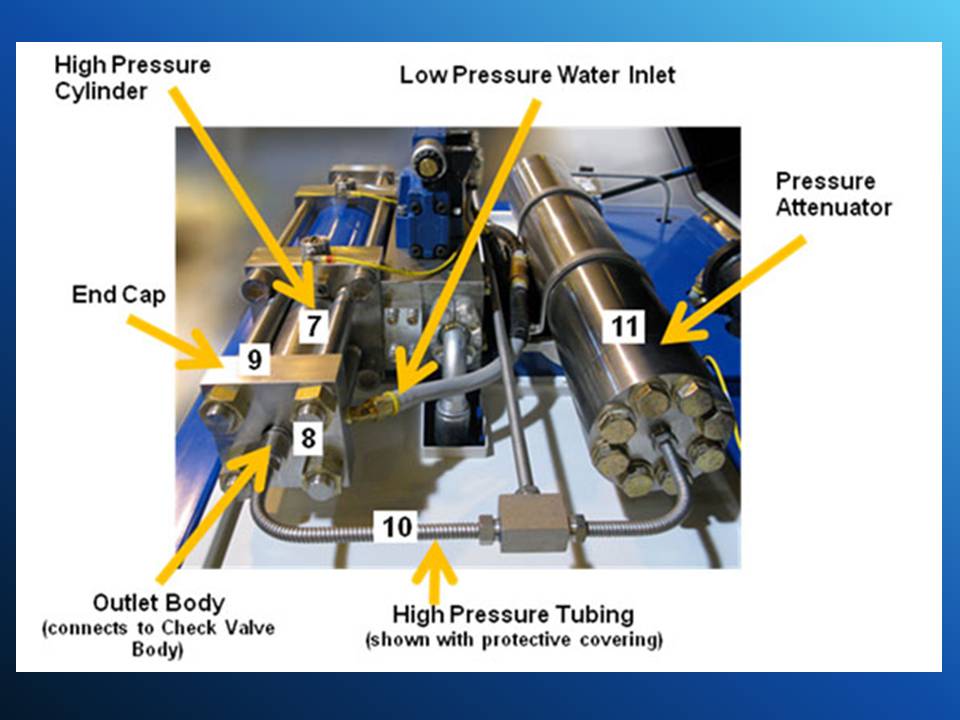

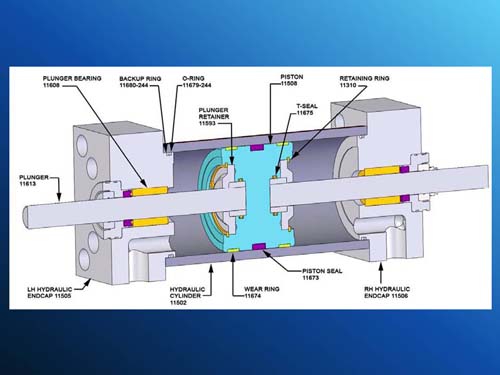

1 STREAMLINED MAINTENANCECheck valve utilizes a screwless, low-pressure poppet design to enable quick evaluation of key contact surfaces. Feature allows for fast component replacement. |

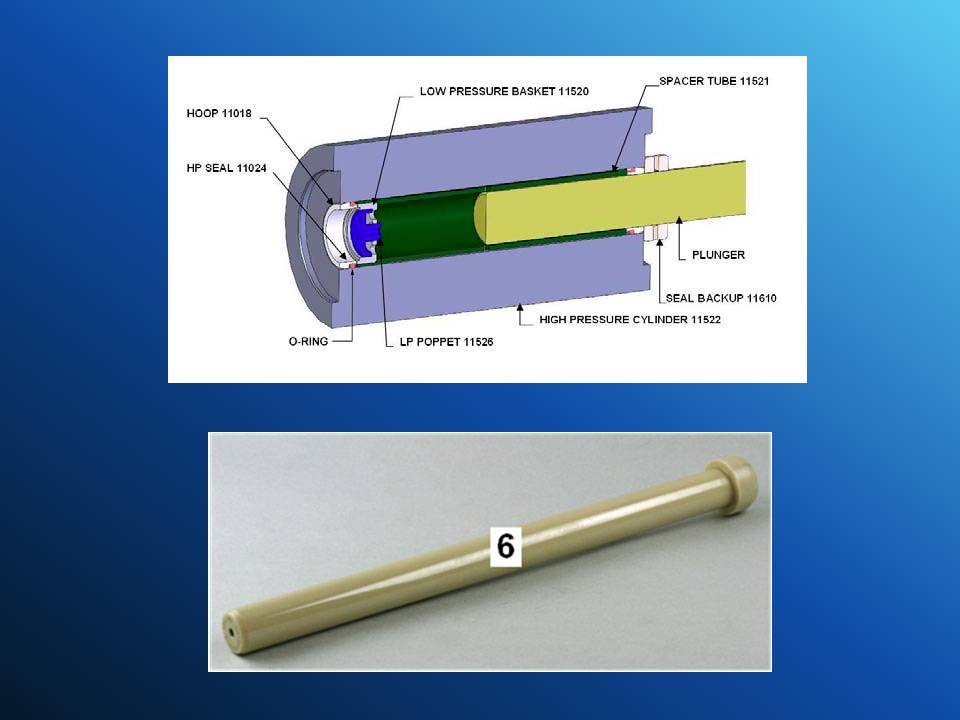

4 EXTENDED SEAL LIFELarge diameter ceramic plunger produces more water per stroke with reduced friction yielding maximum seal life. |
2 RELIABLE HIGH PRESSURE ENDSDurable threaded rod design simplifies high pressure end removal for quick seal maintenance. Non-threaded cylinder design increases reliability. |

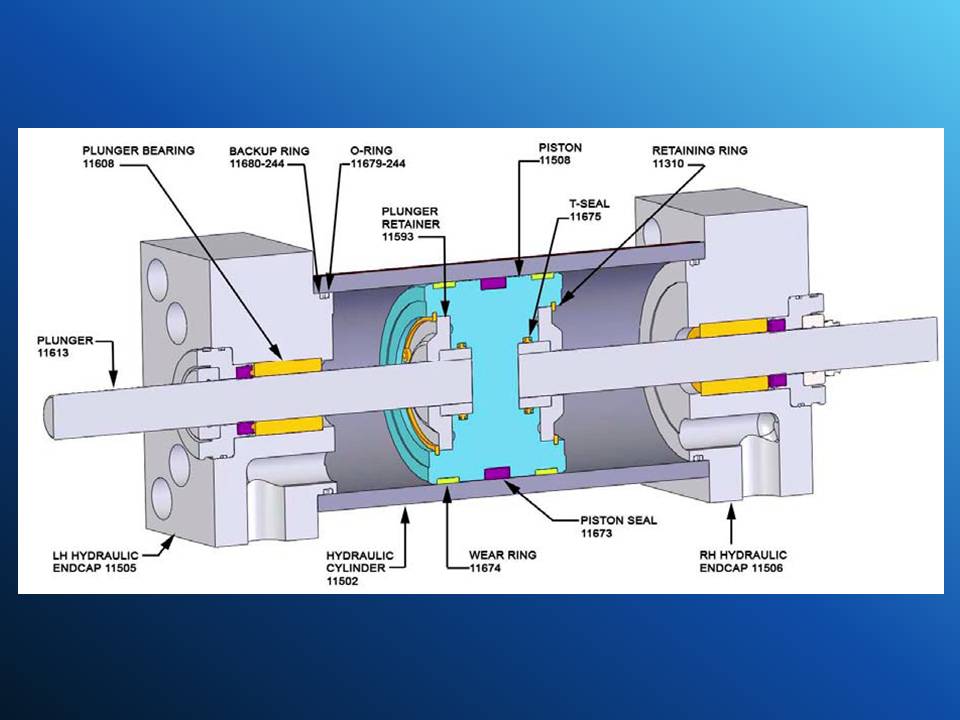

5 IMPROVED COMPONENT LIFEHydraulic center section features an advanced piston design which minimizes seal wear and improves component life. |

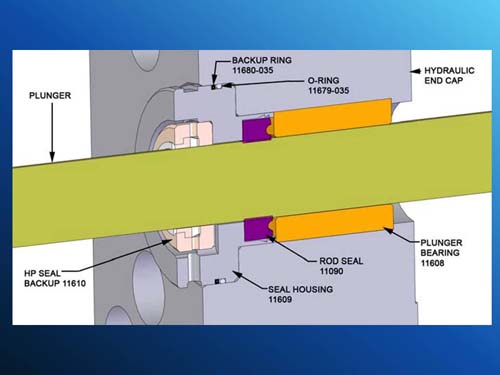

3 SIMPLIFYING ACCESSThe hydraulic rod seals and plunger bearing are readily accessed from the outside of the hydraulic end cap. |
6 SMOOTH SHIFTINGAdvanced electronics provide smooth, more reliable shifting for optimum cut quality. In addition shift times are monitored for intensifier performance. |
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 208-230/460/575 | |
| Current (I) | 44 | 83-75/38/30 | |
| Main C.B. Rating (I) | 50 | 100/50/40 | |
| Soft Start | N/A | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 0.6 (2.3) | 0.6 (2.3) | |
| Max. Orifice (mm) | .011 (0.28) | ||
| Intensifer Configuration | Single | ||
| Pressure Control | Dual Manual | ||
| Bleed Down Valve | Air | ||
Options |
|||
| Integrated air over oil cooling Chiller for oil cooling |
|||
Physical |
|||
| Size | Width, in (mm) | 36.8 (935) | |
| Length, in (mm) | 54.8 (1392) | ||
| Height, in (mm) | 31.5 (800) | ||
| Clearance Height | 48in (1.22m) | ||
| Operating Weight Approx. | 1100lb (500kg) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.72 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | 1 gpm (3.8 lpm) | ||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 2 gpm (8 lpm) | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | 26 gal (98 L) | ||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | 1/2 NPT Female | ||
| Cooling Out | 1/2 NPT Female | ||
| Cutting Water In | 1/2 NPT Female | ||
| Drain Water Out | 1/2 NPT Female | ||
| Cutting Water Out | 3/8 HP Female | ||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | N/A | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | N/A | ||
| Motor Fault | Shutdown | ||
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 208-230/ 460/ 575 | |
| Current (I) | 73 | 137-124/ 63/ 50 | |
| Main C.B. Rating (I) | 80 | 175/ 80/ 60 | |
| Soft Start | WYE-Delta | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 1.0 (3.8) | 1.0 (3.8) | |
| Max. Orifice (mm) | .014 (0.35) | ||
| Intensifer Configuration | Single | ||
| Pressure Control | Dual Manual | ||
| Bleed Down Valve | Air | ||
Options |
|||
| Integrated air over oil cooling Chiller for oil cooling |
|||
Physical |
|||
| Size | Width, in (mm) | 34 (864) | |
| Length, in (mm) | 70i (1778) | ||
| Height, in (mm) | 46 (1168) | ||
| Clearance Height | 80 (2.03m) | ||
| Operating Weight Approx. | 2900lb (1315) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.72 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | 2 gpm | ||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 3 gpm | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | |||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | |||
| Cooling Out | |||
| Cutting Water In | |||
| Drain Water Out | |||
| Cutting Water Out | |||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | P< 40 psi (2.8 bar) Shutdown | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | Shutdown | ||
| Motor Fault | Shutdown | ||
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 208-230/460/575 | |
| Current (I) | 73 | 137-124/63/50 | |
| Main C.B. Rating (I) | 90 | 175/80/60 | |
| Soft Start | True Soft Start | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 1.0 (3.8) | 1.1 (4.16) | |
| Max. Orifice (mm) | .014 (0.35) | 0.015 (0.38) | |
| Intensifer Configuration | Single | ||
| Pressure Control | Panel-Mounted Dual Manual | ||
| Bleed Down Valve | Hydraulic | ||
Options |
|||
| Integrated air over oil cooling Chiller for oil cooling Redundancy Redundancy Ready Electronic Propotional Control |
|||
Physical |
|||
| Size | Width, in (mm) | 40 (1016) | |
| Length, in (mm) | 76 (1930) | ||
| Height, in (mm) | 56 (1422) | ||
| Clearance Height | 80in (2.03m) | ||
| Operating Weight Approx. | 3100lb (1406kg) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | 2 gpm (7.6 lpm) | ||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 3 gpm (11.5 lpm) | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | 37 gal (140 L) | ||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | 1/2 NPT Female | ||
| Cooling Out | 1/2 NPT Female | ||
| Cutting Water In | 1/2 NPT Female | ||
| Drain Water Out | 1/2 NPT Female | ||
| Cutting Water Out | 3/8 HP Female | ||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | P< 40 psi (2.8 bar) Shutdown | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | Shutdown | ||
| Motor Fault | Shutdown | ||
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 460 | |
| Current (I) | 75 | 62 | |
| Main C.B. Rating (I) | 100 | 100 | |
| Soft Start | True Soft Start | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 1.2 (4.6) | 1.3 (4.9) | |
| Max. Orifice (mm) | .016 (0.46) | ||
| Intensifer Configuration | Single | ||
| Pressure Control | Panel-Mounted Dual Manual | ||
| Bleed Down Valve | Hydraulic | ||
Options |
|||
| Integrated air over oil cooling Chiller for oil cooling Redundancy Redundancy Ready Electronic Propotional Control |
|||
Physical |
|||
| Size | Width, in (mm) | 40 (1016) | |
| Length, in (mm) | 76 (1930) | ||
| Height, in (mm) | 56 (1422) | ||
| Clearance Height | |||
| Operating Weight Approx. | 3300lb (1497) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.72 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | 2.5 gpm (9.5 lpm) | ||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 4 gpm (15 lpm) | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | |||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | 1/2 NPT Female | ||
| Cooling Out | 1/2 NPT Female | ||
| Cutting Water In | 1/2 NPT Female | ||
| Drain Water Out | 1/2 NPT Female | ||
| Cutting Water Out | 3/8 HP Female | ||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | P< 40 psi (2.8 bar) Shutdown | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | Shutdown | ||
| Motor Fault | Shutdown | ||
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 460/ 575 | |
| Current (I) | 105 | 95 | |
| Main C.B. Rating (I) | 125 | 125 | |
| Soft Start | True Soft Start | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 1.5 (5.68) | 1.6 (6.06) | |
| Max. Orifice (mm) | .017 (0.43) | 0.018 (0.46) | |
| Intensifer Configuration | Single | ||
| Pressure Control | Panel-Mounted Dual Manual | ||
| Bleed Down Valve | Hydraulic | ||
Options |
|||
| Integrated air over oil cooling Chiller for oil cooling Redundancy Redundancy Ready Electronic Propotional Control |
|||
Physical |
|||
| Size | Width, in (mm) | 40 (1016) | |
| Length, in (mm) | 76 (1930) | ||
| Height, in (mm) | 56 (1422) | ||
| Clearance Height | 80 | ||
| Operating Weight Approx. | 3300lb (1497kg) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.72 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | 2.5 gpm (9.5 lpm) | ||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 4 gpm (15 lpm) | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | |||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | 1 NPT Female | ||
| Cooling Out | 1 NPT Female | ||
| Cutting Water In | 3/4 NPT Female | ||
| Drain Water Out | 3/4 NPT Female | ||
| Cutting Water Out | 3/8 HP Female | ||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | P< 40 psi (2.8 bar) Shutdown | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | Shutdown | ||
| Motor Fault | Shutdown | ||
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 460/ 575 | |
| Current (I) | 150 | 120 | |
| Main C.B. Rating (I) | 200 | 200 | |
| Soft Start | True Soft Start | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 2.1 (7.95) | 2.2 (8.33) | |
| Max. Orifice (mm) | 0.02 (0.51) | 0.021 (0.53) | |
| Intensifer Configuration | Dual | ||
| Pressure Control | Electronic Proportional Control | ||
| Bleed Down Valve | Hydraulic | ||
Options |
|||
| Air over oil cooling Chiller for oil cooling Water isolation valves |
|||
Physical |
|||
| Size | Width, in (mm) | 45 (1143) | |
| Length, in (mm) | 86 (2184) | ||
| Height, in (mm) | 56 (1422) | ||
| Clearance Height | 80in (2.03m) | ||
| Operating Weight Approx. | 4150lb (1882kg) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.72 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | 5 gpm (19 lpm) | ||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 8 gpm (30 lpm) | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | 90 gal (340 L) | ||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | 1 NPT Female | ||
| Cooling Out | 1 NPT Female | ||
| Cutting Water In | 3/4 NPT Female | ||
| Drain Water Out | 3/4 NPT Female | ||
| Cutting Water Out | 3/8 HP Female | ||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | P< 40 psi (2.8 bar) Shutdown | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | Shutdown | ||
| Motor Fault | Shutdown | ||
| Frequency (Hz) | 50 | 60 | |
|---|---|---|---|
Pump Power |
|||
| Voltage (V) | 400 | 460/ 575 | |
| Current (I) | 215 | 170 | |
| Main C.B. Rating (I) | 250 | 225 | |
| Soft Start | True Soft Start | ||
Pump Capabilities |
|||
| Max. Continuous Output Pressure | 60,000 psi (4,137 bar) | ||
| Min. Output Pressure | 8,000 psi (552 bar) | ||
| Max. Output Flow gpm (lpm) | 3.0 (11.4) | 3.2 (12.1) | |
| Max. Orifice (mm) | 0.024 (0.61) | 0.025 (0.64) | |
| Intensifer Configuration | Dual | ||
| Pressure Control | Electronic Proportional Control | ||
| Bleed Down Valve | Hydraulic | ||
Options |
|||
| Air over oil cooling Chiller for oil cooling Water isolation valves |
|||
Physical |
|||
| Size | Width, in (mm) | 55 (1397) | |
| Length, in (mm) | 81 (2057) | ||
| Height, in (mm) | 56 (1422) | ||
| Clearance Height | 80in (2.03m) | ||
| Operating Weight Approx. | 6100lb (2767kg) | ||
Ambient Conditions |
|||
| Min. Storage Temp. (not drained) | 35°F (1.7° C) | ||
| Min. Operation Temp. | 40°F (4.4° C) | ||
| Max. Operating Temp. | 95°F (35°C) Note: Higher temperature operation available with additional cooling package | ||
| Max. Relative Humidity | 95% | ||
Inlet Cutting Water |
|||
| Min. Inlet Water Pressure | 40 psi (1.38 bar) | ||
| Max. Inlet Water Pressure | 115 psi (7.72 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Min. Inlet Flow Rate | |||
| Inlet Water Quality | See Water Quality Section | ||
Hydraulic Cooling Water (if not air cooled) |
|||
| Min. Inlet Water Pressure | 40 psi (2.76 bar) | ||
| Max. Inlet Water Pressure (See LP Water section) |
115 psi (7.93 bar) | ||
| Max. Inlet Temp. | 70°F (21°C) | ||
| Min. Inlet Temp. | 40°F (4.4° C) | ||
| Normal Inlet Flow Rate | 10 gpm (38 lpm) | ||
Hydraulics |
|||
| Hydraulic Oil Type | ISO AW 32 or ISO AW 46 Mineral Oil | ||
| Hydraulic Oil Capacity | 96 gal (363 L) | ||
| Max. Oil Temp. | 130°F (55°C) | ||
| Min. Oil Temp. | 55°F (12.8°C) | ||
Utility Hook-Ups (located at rear of pump) |
|||
| Cooling In | 1 NPT Female | ||
| Cooling Out | 1 NPT Female | ||
| Cutting Water In | 3/4 NPT Female | ||
| Drain Water Out | 3/4 NPT Female | ||
| Cutting Water Out | 9/16 HP Female | ||
Warnings and Shutdowns |
|||
| Intensifier HP Leak Warning | Warning | ||
| Intensifier Over Cycle | Shutdown | ||
| Inlet Cutting Water Under Pressure | P< 40 psi (2.8 bar) Shutdown | ||
| Hydraulic Oil Level Low | Shutdown | ||
| Hydraulic Oil Temp. Alert Temp. |
T< 131°F (55°C) Warning | ||
| Hydraulic Oil Temp. Shutdown Temp. |
T<150°F (65°C) Shutdown | ||
| Oil Filter Clogged | Shutdown | ||
| Motor Fault | Shutdown | ||
ORIFICE COMBINATIONS |
|||||||||||
| Frequency (Hz) |
A-6030 30hp (22kW) |
AS-6050 50hp (37kW) |
AS-6075 75hp (56kW) |
AS-60100 100hp (75kW) |
AS-60150 150hp (112kW) |
||||||
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | ||
| 1 Orifices | 0.010 | 0.011 | 0.014 | 0.015 | 0.017 | 0.018 | 0.02 | 0.021 | 0.024 | 0.025 | |
| 2 Orifices | 0.007 | 0.007 | 0.010 | 0.010 | 0.012 | 0.013 | 0.014 | 0.015 | 0.017 | 0.018 | |
| 3 Orifices | 0.006 | 0.006 | 0.008 | 0.008 | 0.010 | 0.010 | 0.011 | 0.012 | 0.014 | 0.014 | |
| 4 Orifices | N/A | N/A | 0.007 | 0.007 | 0.009 | 0.009 | 0.010 | 0.010 | 0.012 | 0.013 | |
| 5 Orifices | N/A | N/A | 0.006 | 0.006 | 0.008 | 0.008 | 0.009 | 0.009 | 0.011 | 0.011 | |
WATER TREATMENT GUIDELINES |
||||
|---|---|---|---|---|
| High Quality Water | TDS<50ppm | No treatment required | ||
| Good Quality Water | 50 ppm <TDS < 150 ppm | Soften Only | ||
| Medium Quality Water | 150 ppm < TDS < 250 ppm | Soften or TDS removal | ||
| Poor Quality Water | TDS > 250 ppm Silica > 15 ppm |
TDS removal | ||
TORQUE SPECIFICATIONS |
|||
|---|---|---|---|
| Specific Torques | |||
| Intensifier Stud: 1 in. nut | 275 ft-lb (373 N-m) | ||
| Intensifier Center: 7/8 in. cap screw | 275 ft-lb (373 N-m) | ||
General Torques: The torques below are to be applied only to those fasteners not listed above: |
|||
| #10 | 45 in-lb (5.1 N-m) | ||
| 1/4in. | 105 in-lb (11.9 N-m) | ||
| 5/16 in. | 18 ft-lb (24 N-m) | ||
| 3/8 in. | 33 ft-lb (45 N-m) | ||
| 7/16 in. | 53 ft-lb (72 N-m) | ||
| 1/2 in. | 80 ft-lb. (108 N-m) | ||
| High Pressure Fitting Torques | |||
| 1/4 in. | 15-25 ft-lb (20-34 N-m) | ||
| 3/8 in. | 35-45 ft-lb (47-60N-m) | ||
| 9/16 in. | 60-75 ft-lb (80-100N-m) | ||
