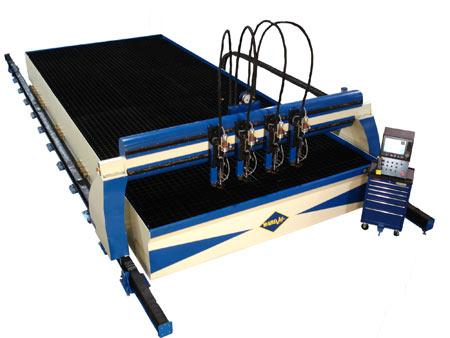

R-Series Waterjets

Many of our customers have a need for a machine larger than the Z-2543, so WARDJet created the R-Series waterjet system. This high precision helical rack and split pinion unit has been designed to meet even the largest requirements while holding very tight tolerances.

A 14’ (4.3m) crossbeam is standard, but as with all things WARDJET, the cross beam can be made shorter or longer depending upon your needs. The length of the X-axis can also be customized. Additional racks can always be added because the X-axis is rack and pinion. The Y-axis operates using a ball screw drive mechanism up to 15’ (4.6m) long and rack and pinion for longer cross beams.

An optional 36” (0.9m) Z-axis can also be utilized to further expand the capabilities of your waterjet. Another exciting possibility with the R-Series to further separate you from your competition is that the tank of the R-Series does not have to cover the entire cutting envelope of the gantry. This allows the possibility to leave some of the cutting area open to place taller objects under the gantry.

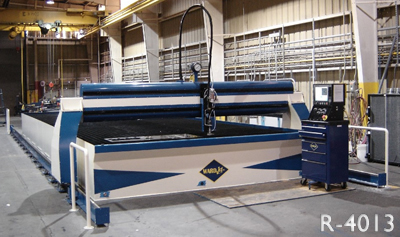

R-4014 waterjet cutting system

R-4014 Waterjet

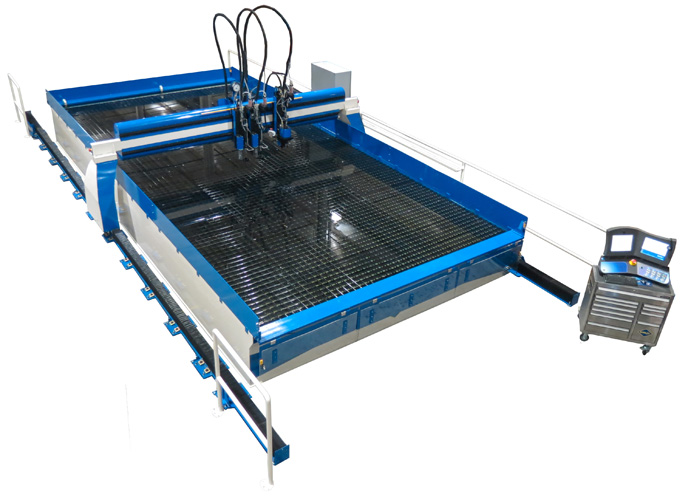

R-3014 waterjet cutting system

R-3014 Waterjet

R-2014 waterjet cutting system

R-2014 Waterjet

R-1214 waterjet cutting system

R-1214 Waterjet



Request More Information →

WARDJet supplies parts for WARDJet waterjets and for most makes and models of waterjets. Read More »



R-Series Waterjet Gantries

WARDJet systems are available in a variety of sizes to meet our customers varied needs. The R-Series comes in eight standard sizes, the R-1214, R-2014, R-3014, R-4014, R-129, R-209, R-309, and R-409.

Any length is available if you need something longer than 40' or shorter than 20'. Widths of over 13' are also available.

R-3014 Gantry with two standard cutting heads and one Psy-Winder 5-axis cutting head.

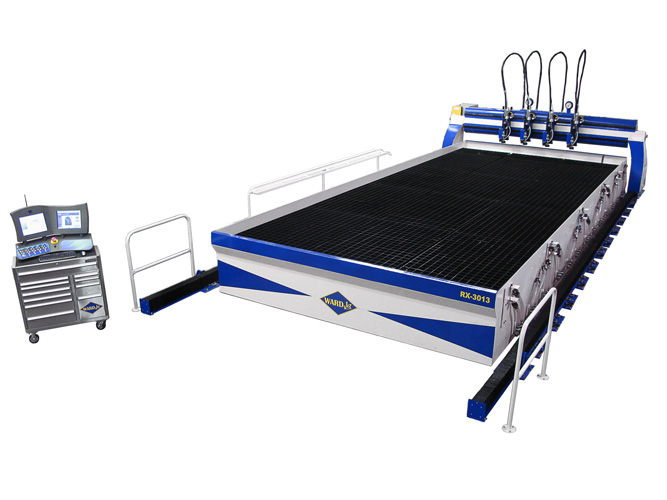

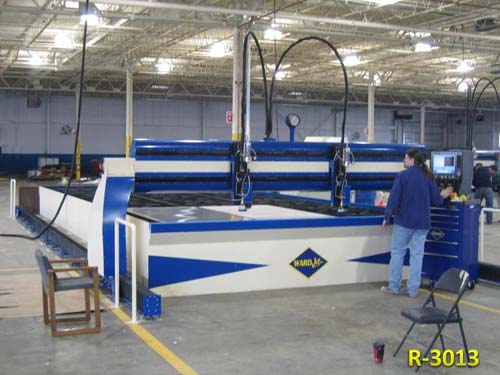

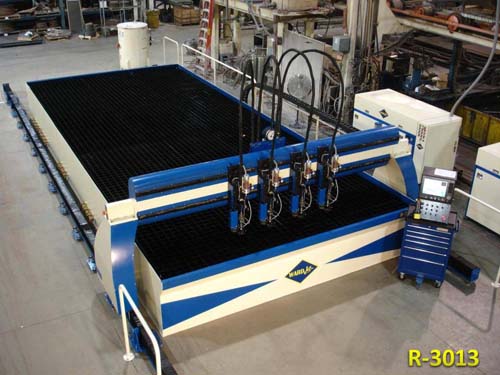

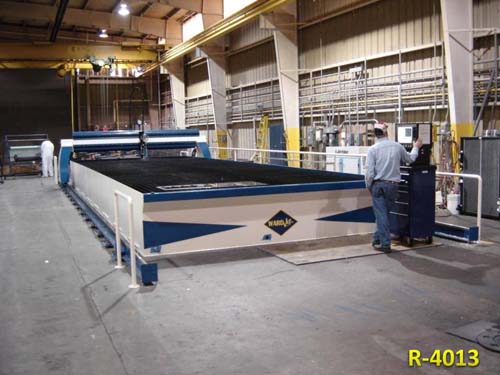

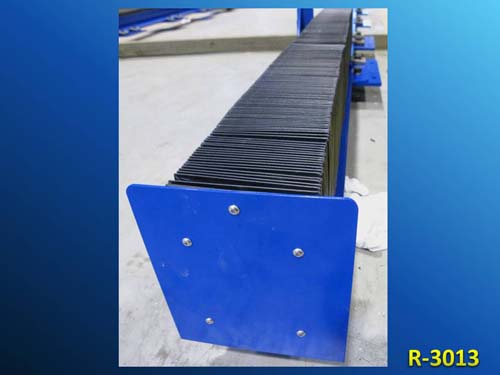

RX-3013
RRX-4016
RRX-4016 with Dynamic Mini Hoppers
RRX-4016
RRX-4016

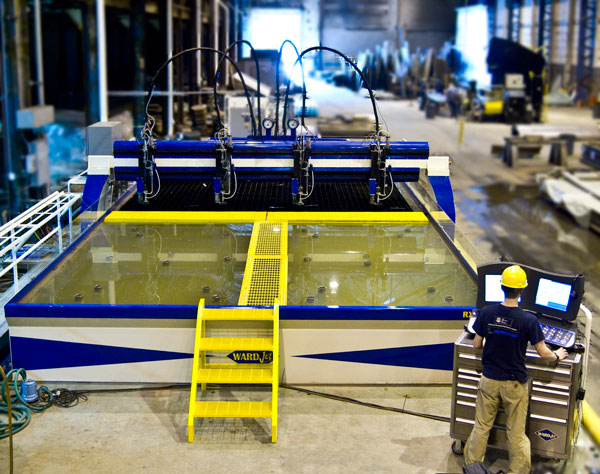

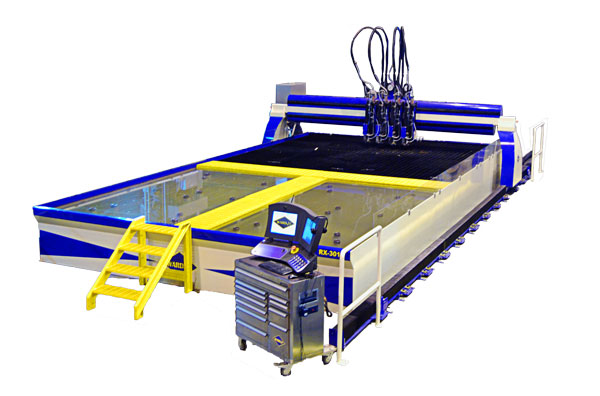

R-3015 with Operator

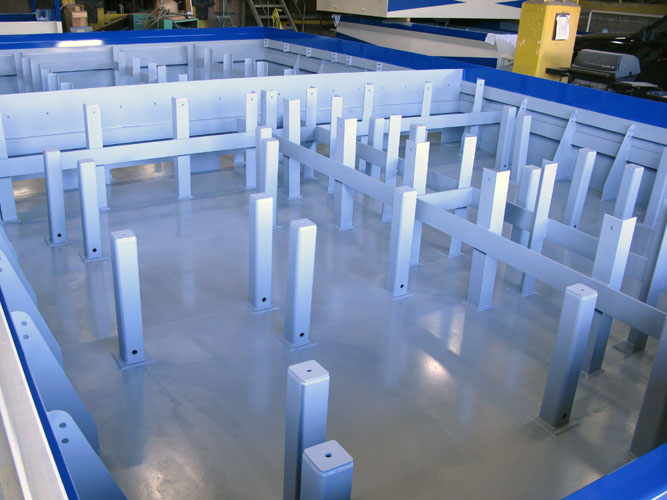

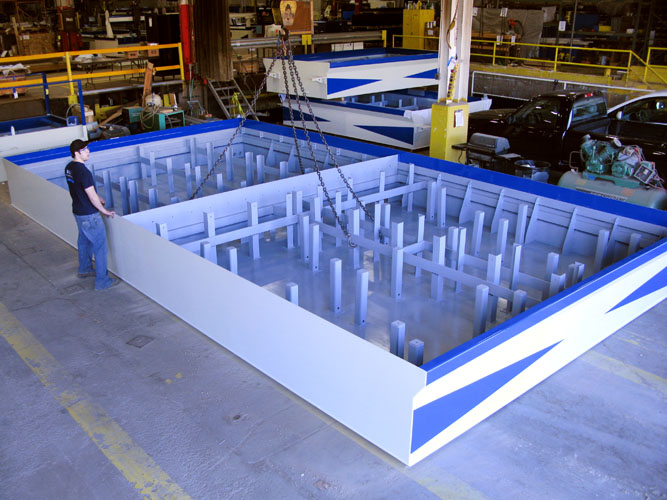

R-3015 with Custom Tank Fixtures
R-3015 Custom Tank with Fixtures
R-3015 Custom Tank with Fixtures

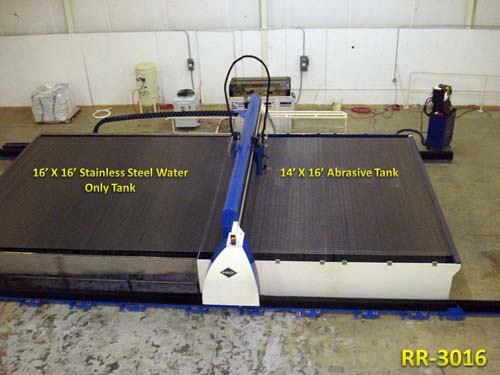

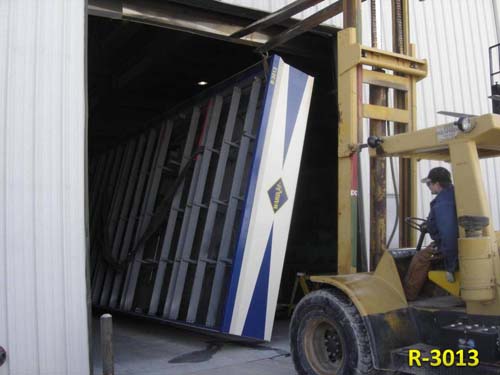

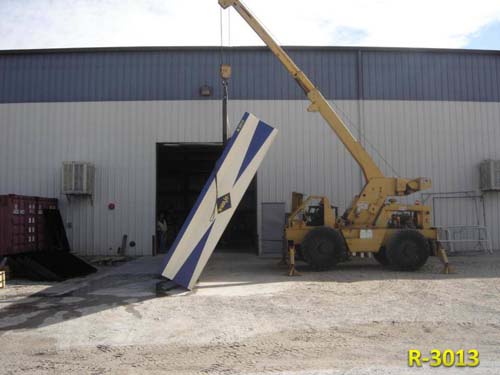

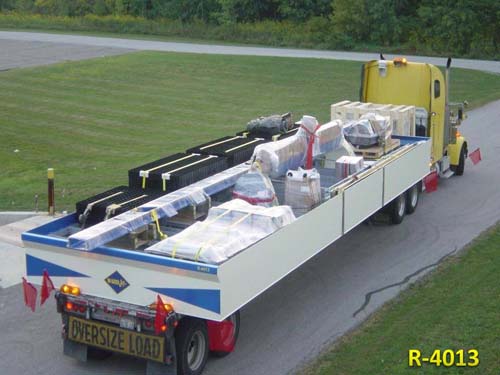

RR-Series Split Tank Shipping
RR-Series Split Tank Shipping
RR-Series Split Tank Shipping
RR-Series Split Tank Shipping
RR-Series Split Tank Welding
RR-Series Split Tank Welding
RR-Series Split Tank Welding
RR-Series Split Tank Welding

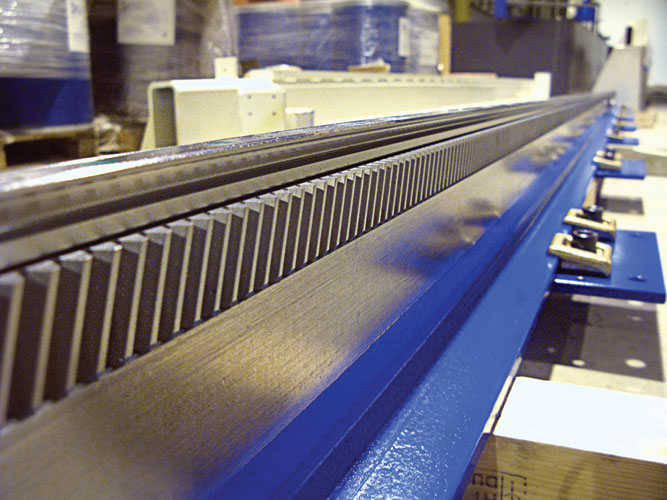

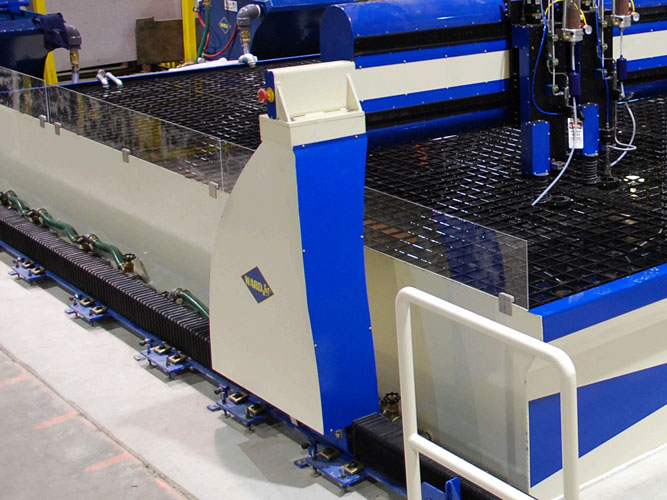

Helical Rack & Precision Pinion

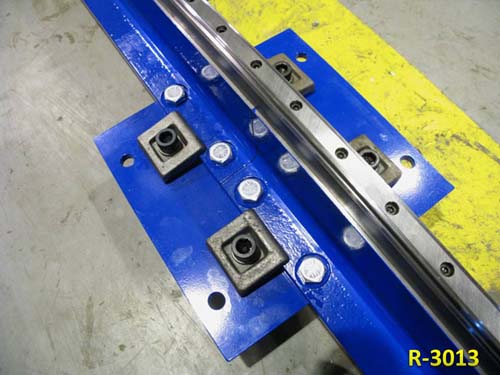

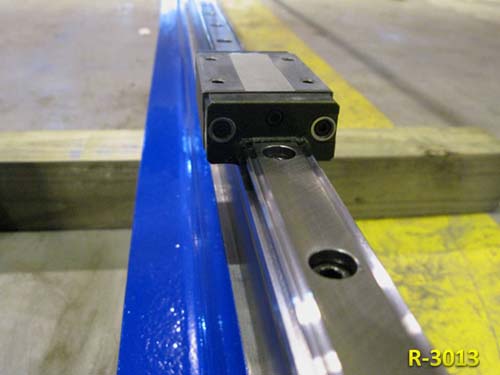

Liner Rail

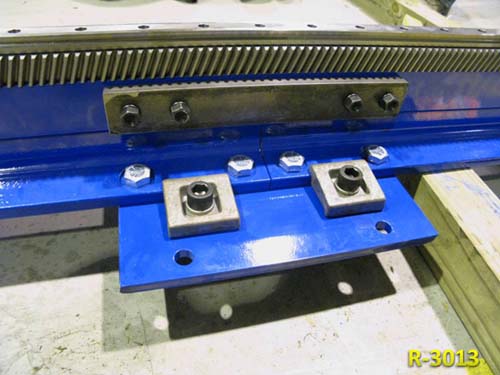

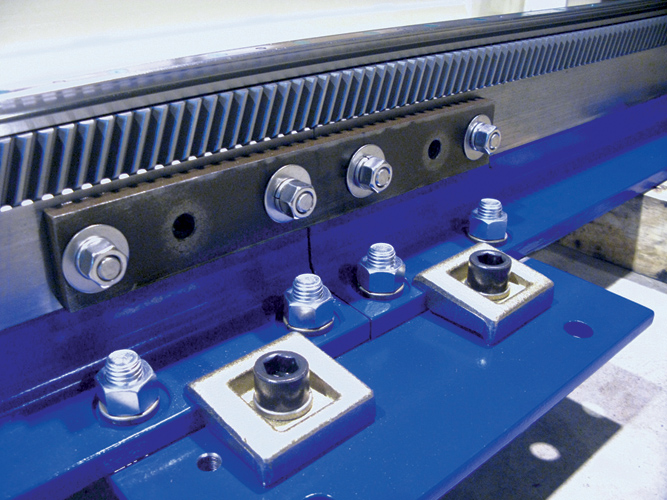

R-Series Rack Plate

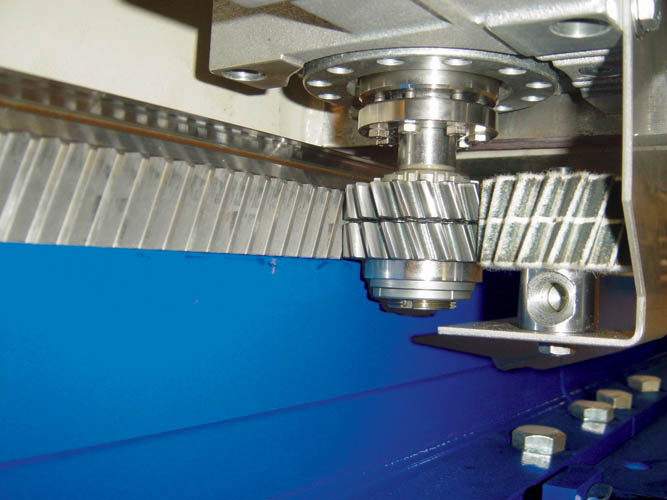

Helical Rack & Precision Pinion
Helical Rack & Precision Pinion
Helical Rack & Precision Pinion
R-Series Waterjets Slideshow Waterjet University Sales Request

Videos



RR Tank Engineered for Better Shipping - NEW

RR-Series Designing Out Shipping Costs - NEW


RR-Series Tank Manufacturing - NEW

RX-3015 Mirror Cutting - NEW


Custom R-3015

R-3014 In Action

RX-3014 Shipping

R-Series

R-Series Features

Accuracy

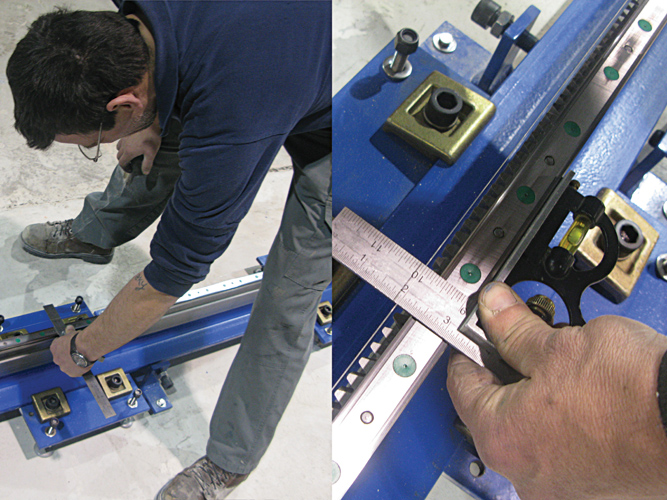

High precision, helical rack and split pinions to achieve longer travel distances with zero backlash.
Range of Travel
Capacity of 12" vertical travel on Z-axis standard. Optional 24" or custom Z travel available.
Independent Z-Carriages
Our lip seal design allows for multiple, easy to move independent carriages.
Multiple Crossbeams

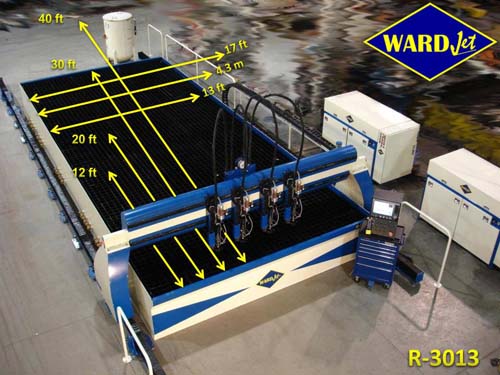

Additional crossbeams can be mounted onto the same side rails. A 20' or larger R-Series unit could have multiple heads, crossbeams, controllers and cut different parts simultaneously, all on the same tank!
Calibration
Laser calibration of all systems.
Multiple Cutting Heads
Multiple cutting heads on one carriage or on independent carriages.
Full Range of Motion

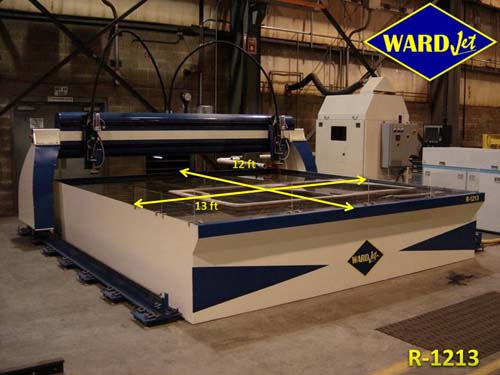

9' or 13' Y-axis allowing for full 8' and 12' range of motion with one cutting head when a second Z-carriage is parked.
Upgradeable
All systems are upgradeable as you grow.

Layouts

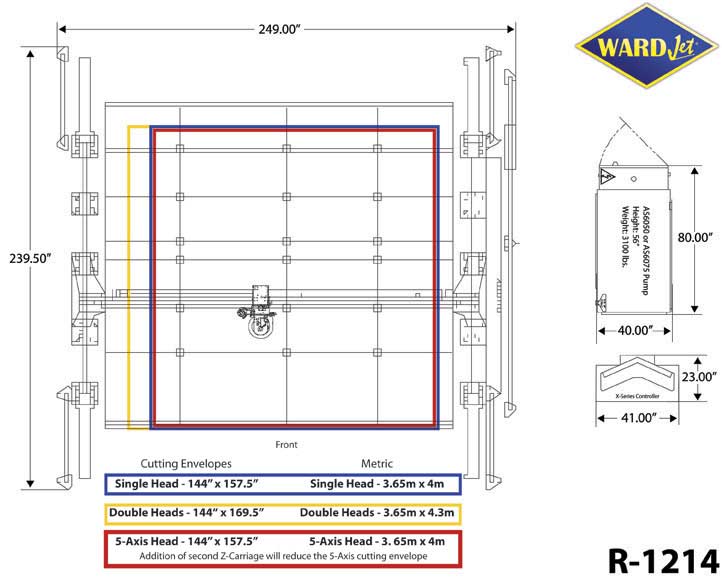

R-1214


+ Click to zoom

R-1214 PDF Download

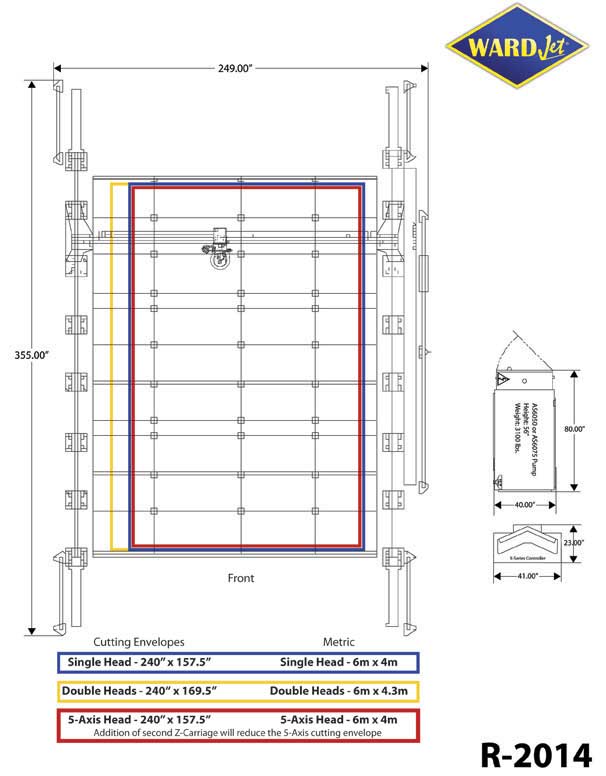

R-2014


+ Click to zoom

R-2014 PDF Download

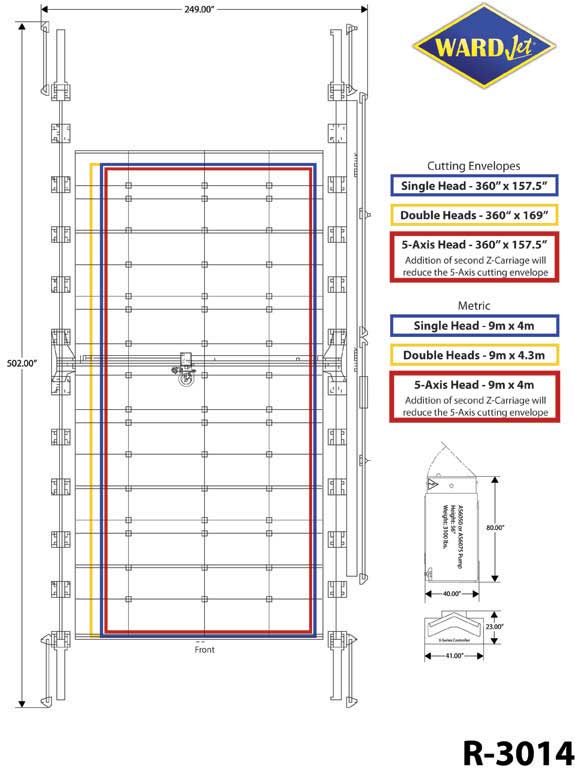

R-3014


+ Click to zoom

R-3014 PDF Download

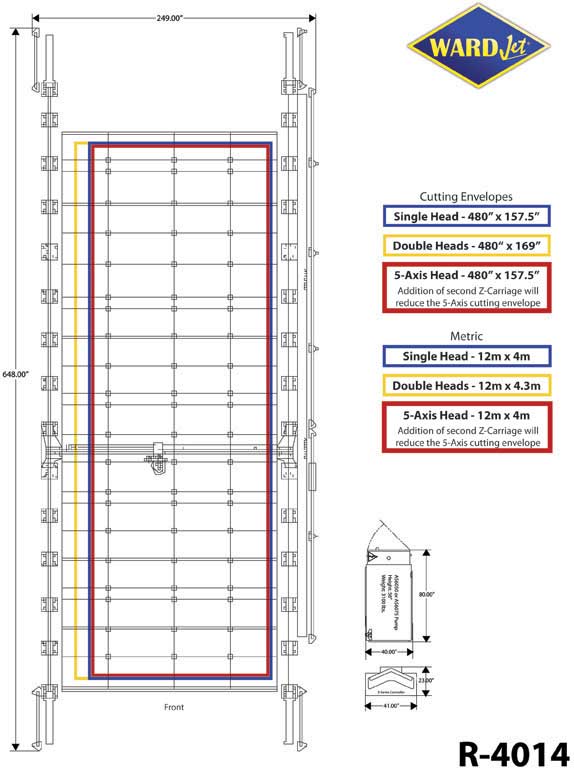

R-4014


+ Click to zoom

R-4014 PDF Download

More to Consider

X-Classic Controller

Controllers

WARDJet offers 2 main controllers with their waterjets, the X-Classic, and the XL

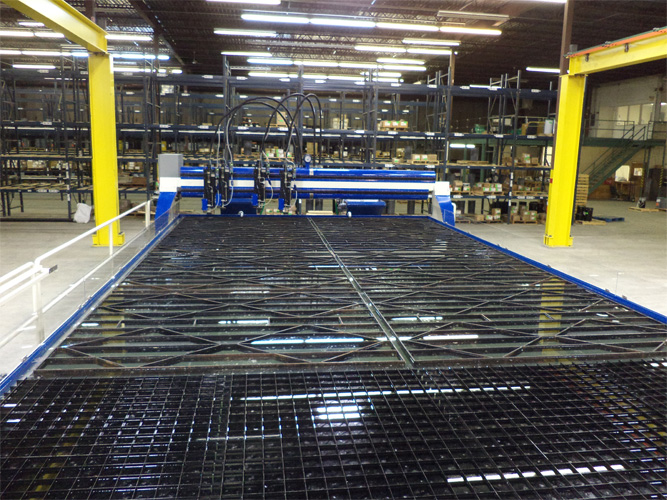

Grates

Grates

WARDJet provides you with four different grating options; each one is specific to a different application.

Pumps

Pumps

WARDJet offers a full range of reliable and efficient waterjet intensifier pumps for every application.

Psy-Winder 5-axis cutting head

Options/Accessories

Choose the options and accessories you need to get the job done.


Questions?

How do we keep our prices down?

Why the EXTRA foot of travel?

Why the Independent Carriages?

What about training?

Still more questions? Visit our FAQ.
