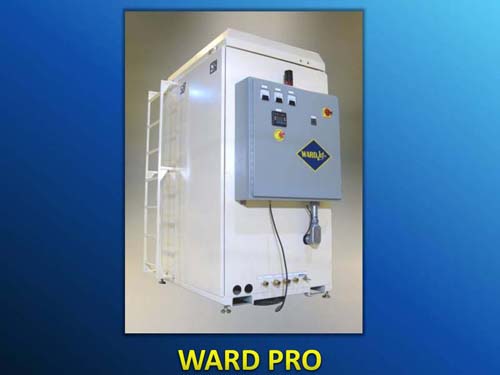

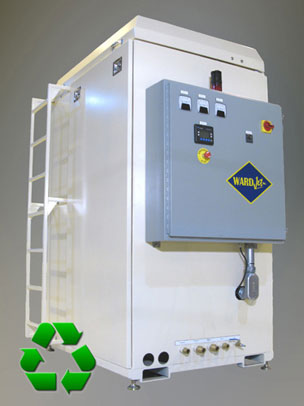

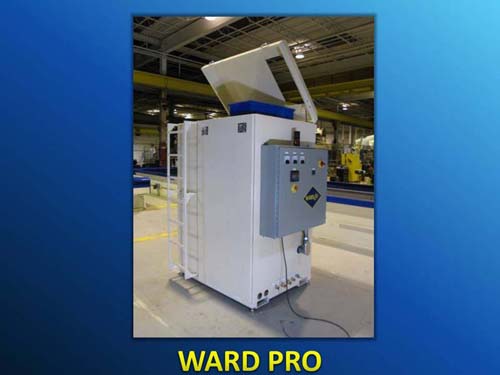

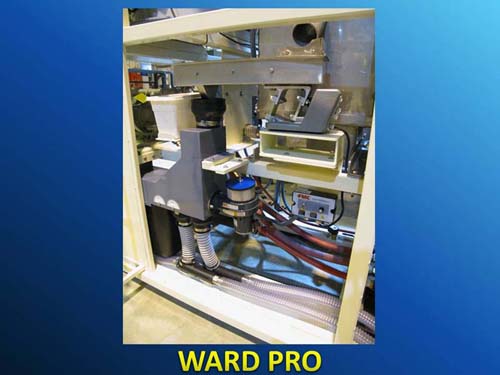

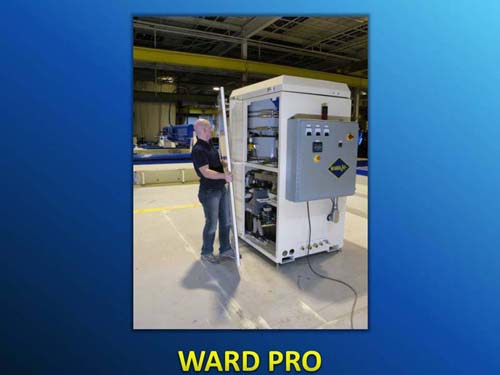

With more than 100 WARD units installed worldwide, the WARD has earned a reputation for recycling waterjet abrasive reliably, consistently and efficiently. With that in mind we have improved upon our design to bring you the WARD PRO. The WARD PRO will give you clean reusable abrasive that will save you time, money and resources. You will reduce waste and cost with this simple, innovative and effective abrasive recycling solution from WARDJet.

Features

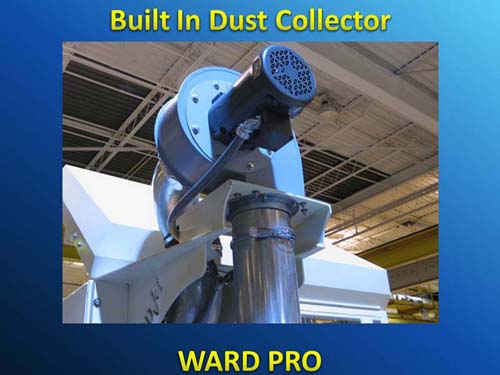

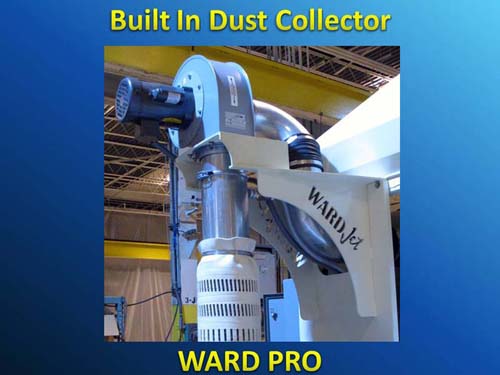

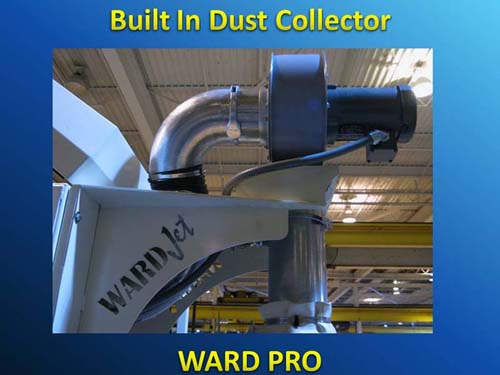

Dust Collector

The WARD Pro comes standard with an integrated dust collector. The dust collector is specifically built to remove and separate the steam and dust coming out of the dryer. The steam is removed as it passes over an impinger, with the dust being collected in dust bag filters.

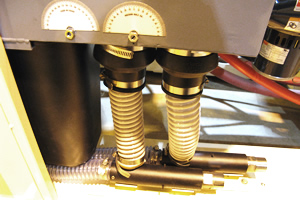

Dual Abrasive Transport System

A single automated abrasive transport system allowing abrasive to be moved up to 60 feet (18m) from the WARD Pro.

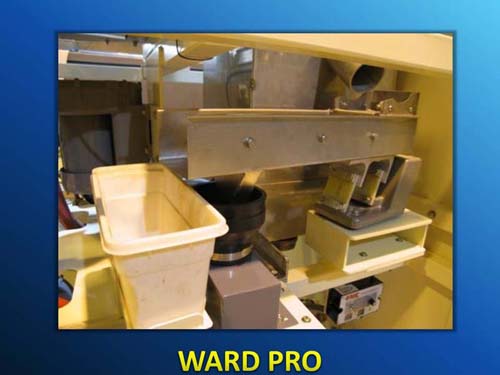

Dual Abrasive Splitter

The Dual Abrasive Splitter allows the dry, recycled abrasive to be graded into different mesh sizes. You can adjust the actual mesh sizes that can be produced. For example, if you start with a 50 mesh abrasive and a 145 mesh screen on the WARD Pro, it will grade out all the dried abrasive into whatever mesh sizes you desire such as coarser than 100 mesh and finer than 100 mesh.

The splitter is designed to operate by using a knife-edge air stream to pass through the falling abrasive. The resultant trajectory of the abrasive then determining what is coarse and fine abrasive.

The greatest advantage of the splitter is its ability to increase the percentage of recovery of recycled abrasive. This leads to the associated reduced payback time for the investment.

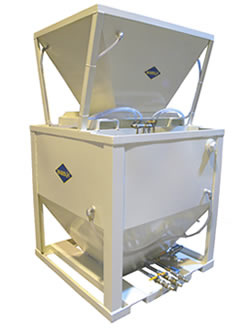

DAR & DART

The Drum Abrasive Recycling system is designed specifically to process recycled abrasive into the WARD Pro. You can put up to 4000 lbs of abrasive / waste material into the DART² (top unit) which removes large particles such as material drops, off cuts, tools that may have fallen into the tank, etc. A recycling removal nozzle is placed at the bottom of the DAR¹ (bottom unit), the contents are agitated and the materials are processed through the recycling unit. The DAR¹ will empty completely when used.

The DAR¹ and DART² units are specifically built to be loaded in any fashion, such as, from drums or with a front-end loader, containing all off-cuts and kerf material. The oversized waste is separated out in the DART² while the DAR¹ will facilitate the continuous operation of the WARD Pro to recycle the abrasive for reuse.

The DAR¹ unit comes standard with a diaphragm pump. The DART² fits into the top of the DAR¹.

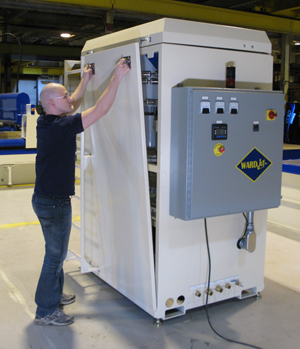

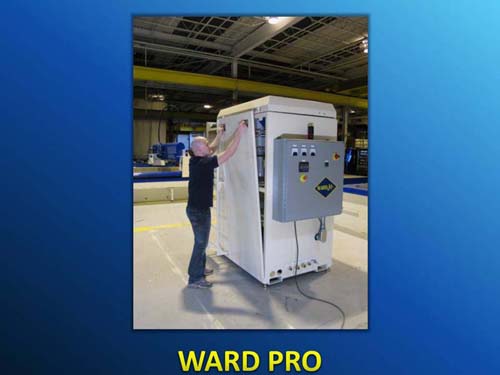

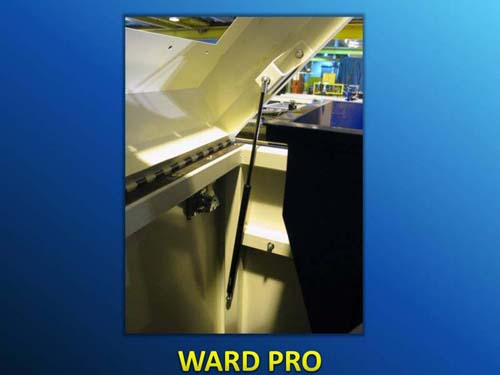

Maintenance Made Easy

At WARDJet we work hard to engineer products that are easy to operate and maintain. The WARD Pro is no exception.

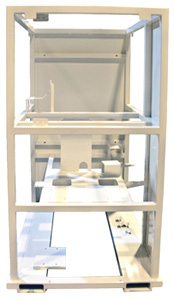

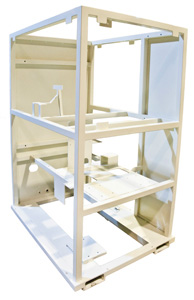

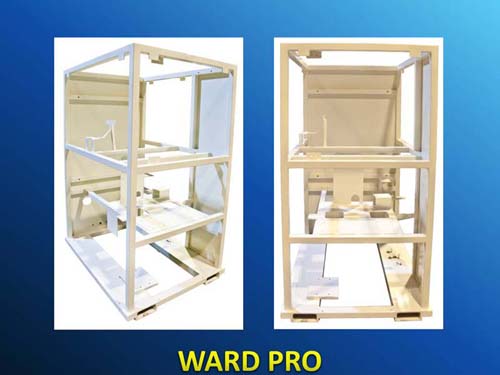

Heavy Duty Construction
