Z-2043 Pure Water & Abrasive Waterjet
A WARDJet Z-2043 with X-Classic Controller

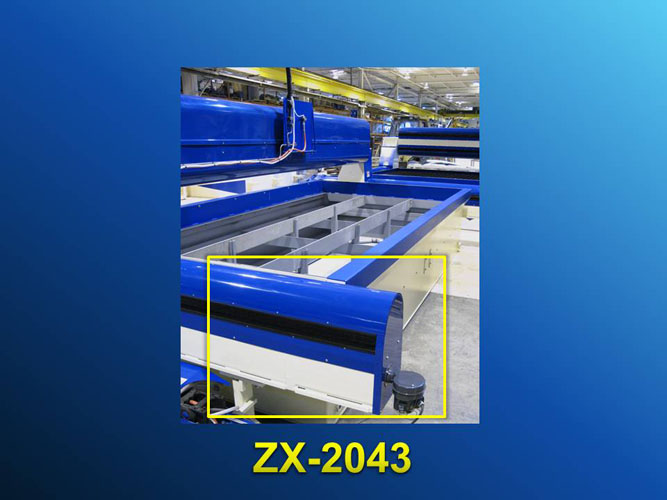

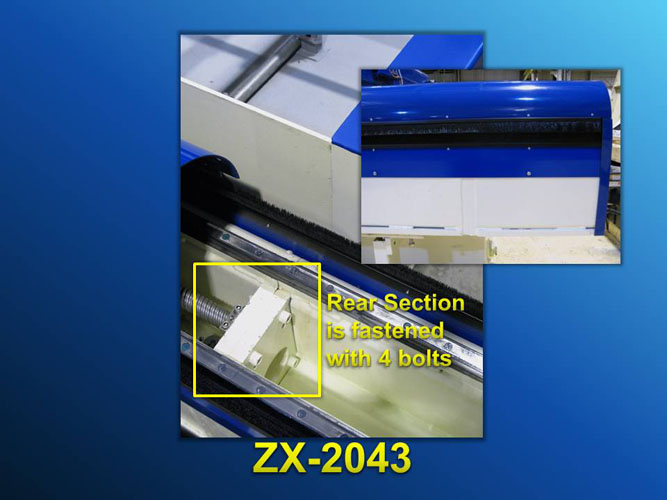

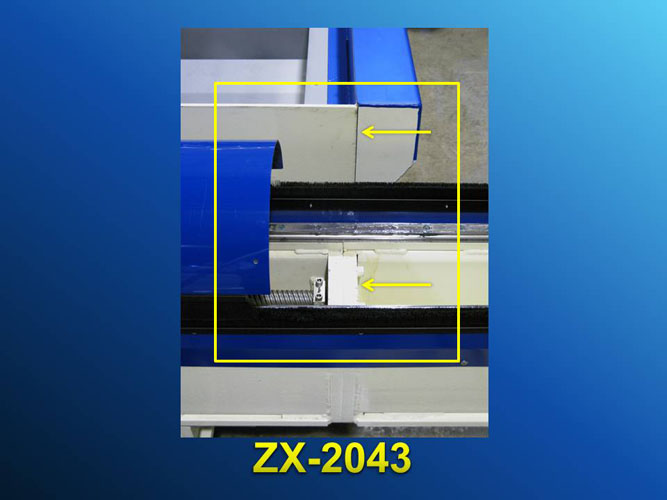

WARDJet's Z-2043 has been uniquely designed for overseas shipping. The back portion of the side rails are removed prior to shipping. This allows the machine to fit into a standard shipping container.
Preparing your parts to be cut on the Z-2043 is quick and easy. Most people are able to reach the middle of the table from the front and back of the unit. Different materials and parts can be loaded and unloaded anywhere on the table at the same time without having to climb onto it.

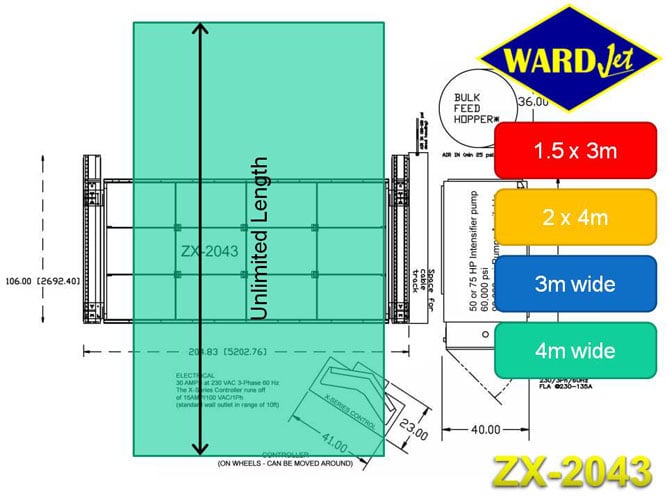

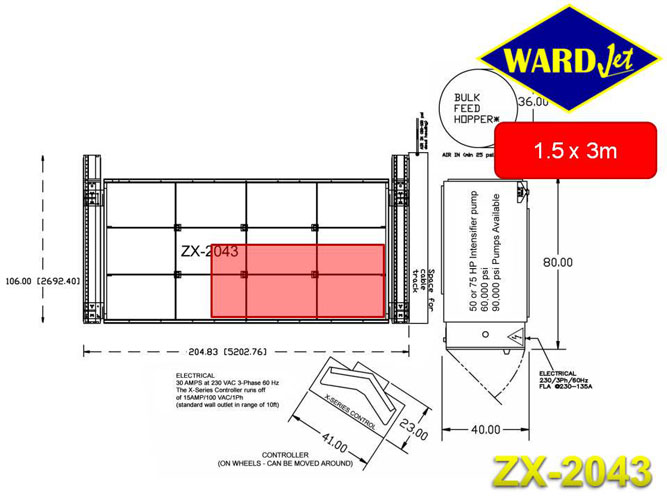

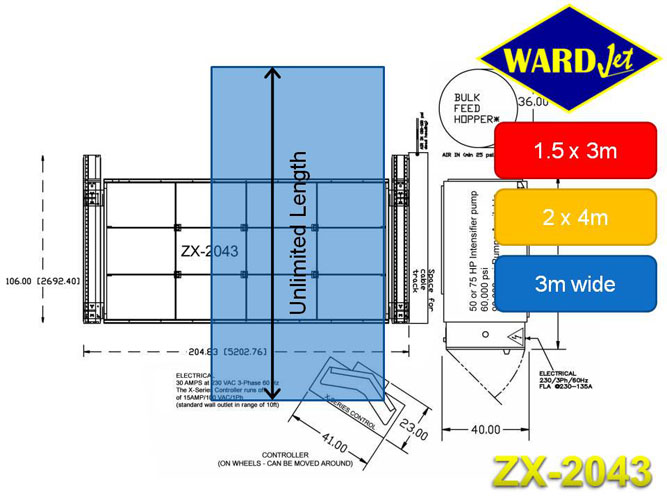

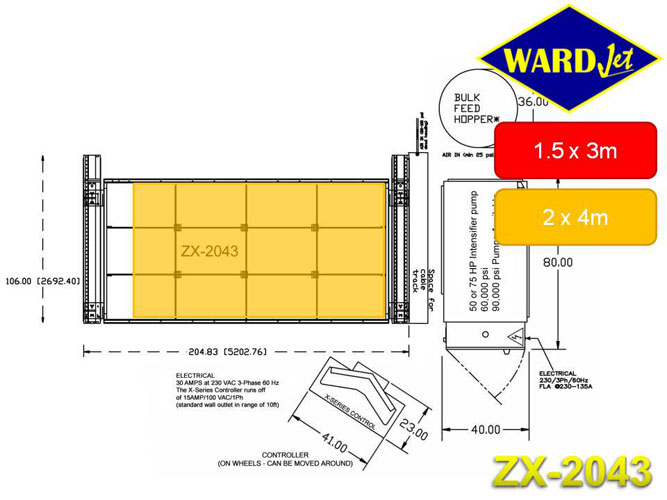

Our Z-2543 can cut 1.5m X 3m (4.9' x 9.8'), 2m X 4m (6.6' x 13.1'), 3m (9.8') wide (unlimited length) and 4m (13.1') wide (unlimited length). All WARDJet waterjets are built to allow unlimited length sheets or parts to be fed through the front and out the back of the waterjet. All Z-Series waterjets have an easy indexing system that makes it practical to move longer sheets through the machine.
The Z-2043 comes with all the fantastic features that are standard with any Z-Series machine, including the freedom to choose which type or combination of grating and clamping system you want from our options.
Following are the statistics for a standard Z-2043:
| Machine Dimensions |
Footprint |
5.38m x 2.69m (17.65' x 8.82') Gantry Only |
|
Depth of tank |
0.89m (2.92') |
| Cutting Envelope |
X-Y Travel |
+2m x 4m (6.56' x 13.12') with one carriage
+2m x 4.3m (6.56' x 14.1') with two carriages |
| Software |
Advanced CAD/Cam Software |
Installed on customer's personal computer |
| Controller Power Requirements |
X-Classic & XL 220V, 30amps |
| Air Requirements |
Minimum 2.758 bar (40 psi) for bulk feed hopper |
| |
Minimum 1.379 bar (20 psi) for mini-hopper |
| |
Minimum 5.516 - 6.205 bar (80-90psi) for cutting heads |
| Number of Z-Carriages |
Maximum 7+ |
| Mini Hopper |
One WARDJet Inc. patented mini-hopper per cutting head |
| Bulk Feed Hopper |
498.95 kg (1100 lb) pressurized standard |
| Drive Mechanism |
Ball screw driven in all axes |
| Tolerances |
Linear positional accuracy: +/- 0.08 mm (0.003") per axis |
|
Repeatability: ± 0.03 mm (0.001") per axis |
| Speed |
From 0.25 mm/m (0.01 ipm) up to 12,700 mm/m (500 ipm) |
