Z-2546 Waterjet Cutting System

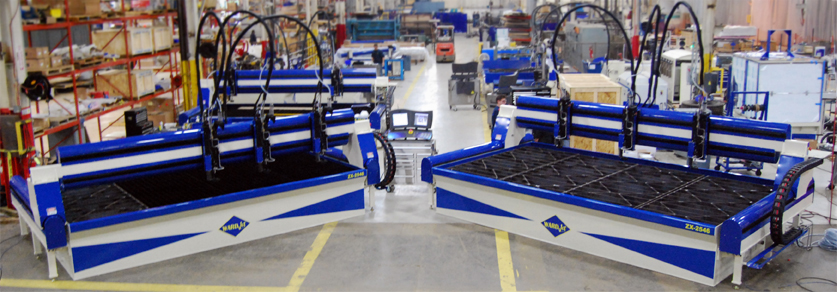

ZX-2546 waterjet cutting system with heavy duty grates

ZX-2546 waterjet cutting system with job shop grates

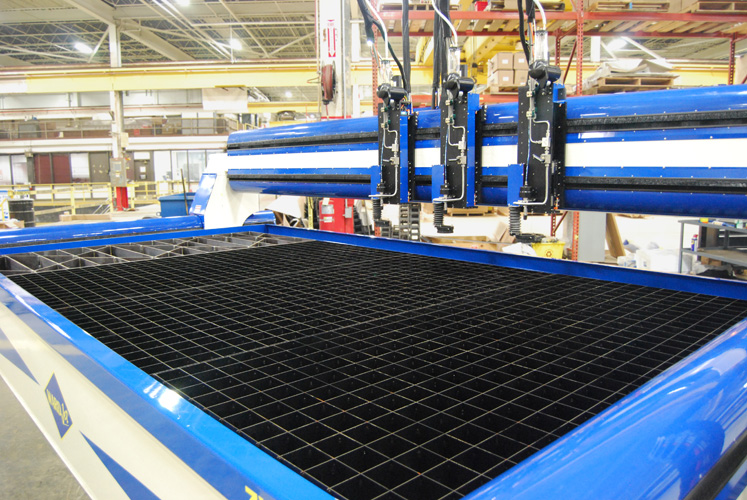

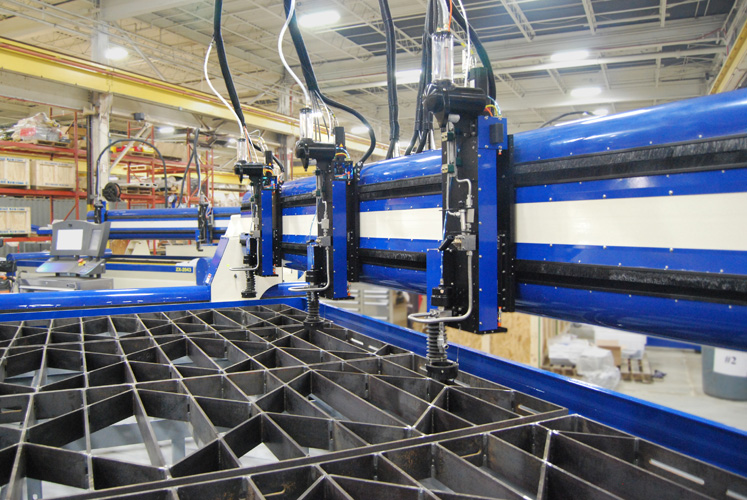

This machine has an extended tank and crossbeam design to enable triple head cutting while still allowing for single head cutting of a full 8’ x 12’ sheet. You will also find that each of the three heads is independently controlled by it’s own AC servo motor. This allows for independent movement as well as easy to set up mirror cutting. Cut your parts in half the time without sacrificing edge and cut quality!

The ZX-2546 comes with all the fantastic features that are standard with any Z-Series machine, including the freedom to choose which type or combination of grating and clamping system you want from our options.

Following are the statistics for a standard ZX-2546:

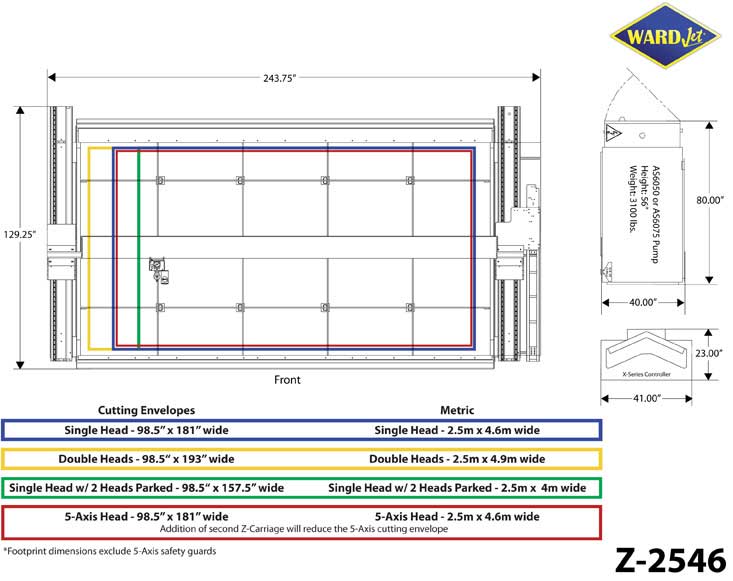

Machine Dimensions	Footprint	5.702m x 3.83m (18.7' x 12.564') Gantry Only
	Depth of tank	0.89m (2.92')
Cutting Envelope	X-Y Travel	+2.5m x 4m (8.2' x 13.12') with one carriage +2.5m x 4.6m (8.2' x 15') with two carriages
Software	Advanced CAD/Cam Software	Installed on customer's personal computer
Controller Power Requirements	X-Classic & XL 230V, 30amps, 3 Phase
Air Requirements	Minimum 2.758 bar (40 psi) for bulk feed hopper
	Minimum 1.379 bar (20 psi) for mini-hopper
	Minimum 5.516 - 6.205 bar (80-90 psi) for cutting heads
Number of Z-Carriages	Maximum 7+
Mini Hopper	One WARDJet Inc. patented mini-hopper per cutting head
Bulk Feed Hopper	498.95 kg (1100 lb) pressurized standard
Drive Mechanism	Ball screw driven in all axes
Tolerances	Linear positional accuracy: +/- 0.08mm (0.003") per axis
	Repeatability: ± 0.03 mm (0.001") per axis
Speed	From 0.25 mm/m (0.01 ipm) up to 12,700 mm/m (500 ipm)
