GX-4816

LARGE FORMAT 5-AXIS WATERJET

LARGE FORMAT 5-AXIS WATERJET

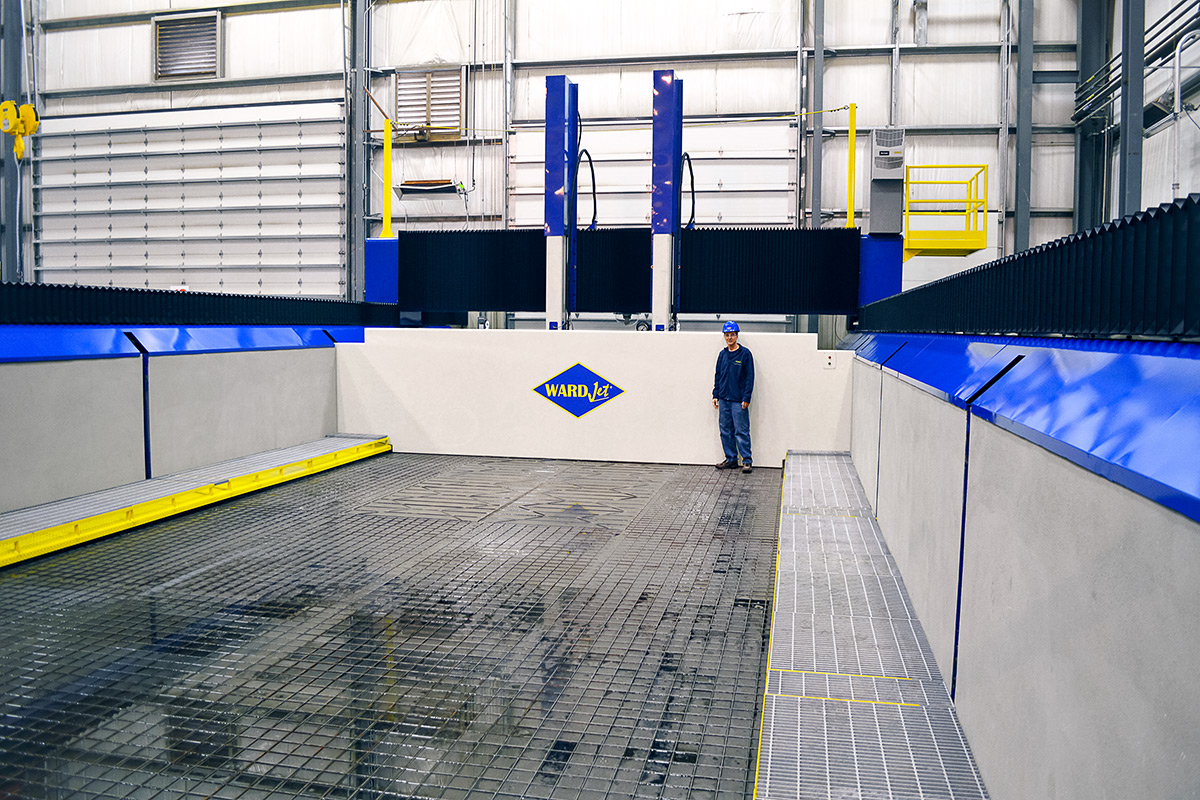

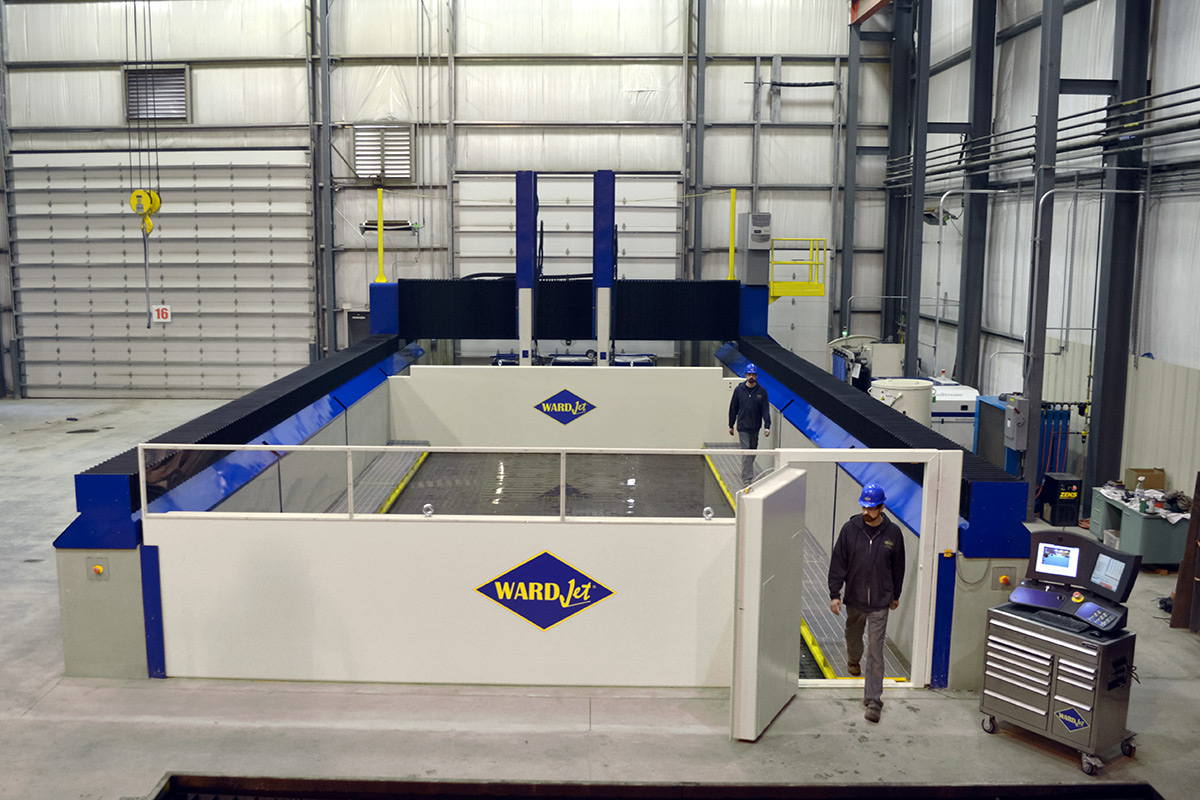

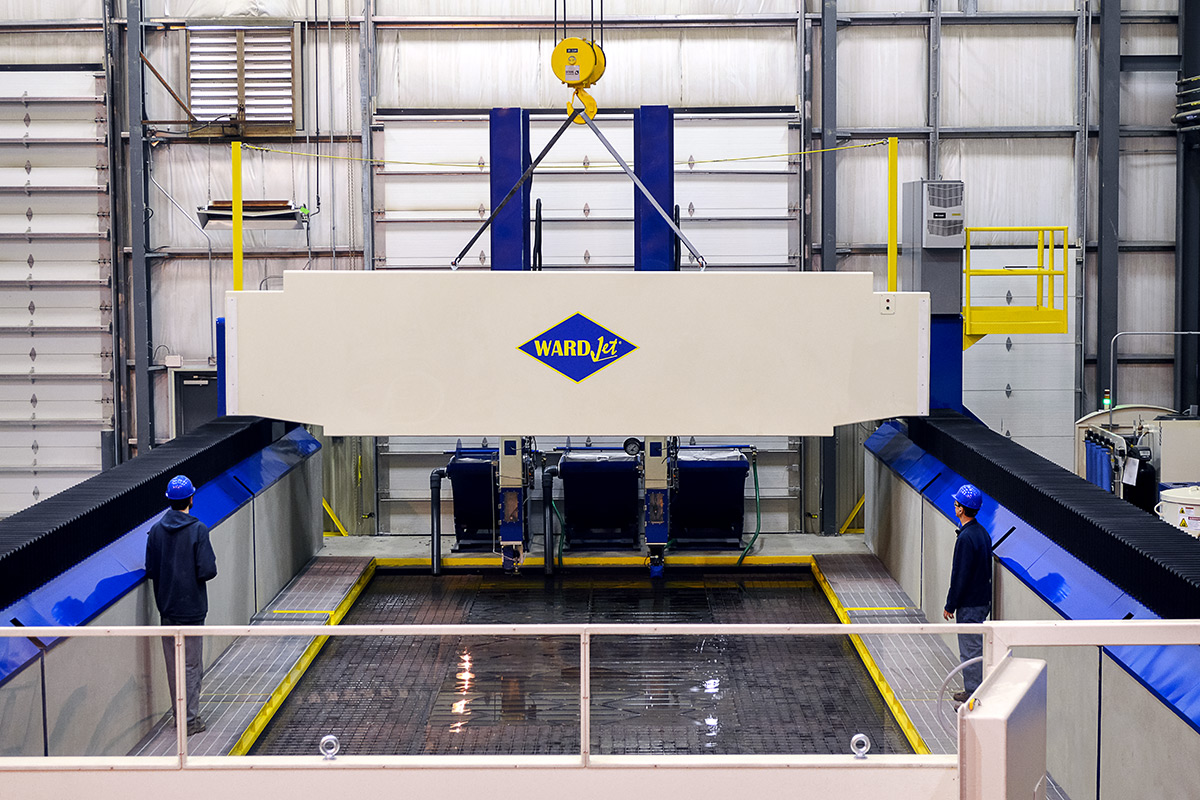

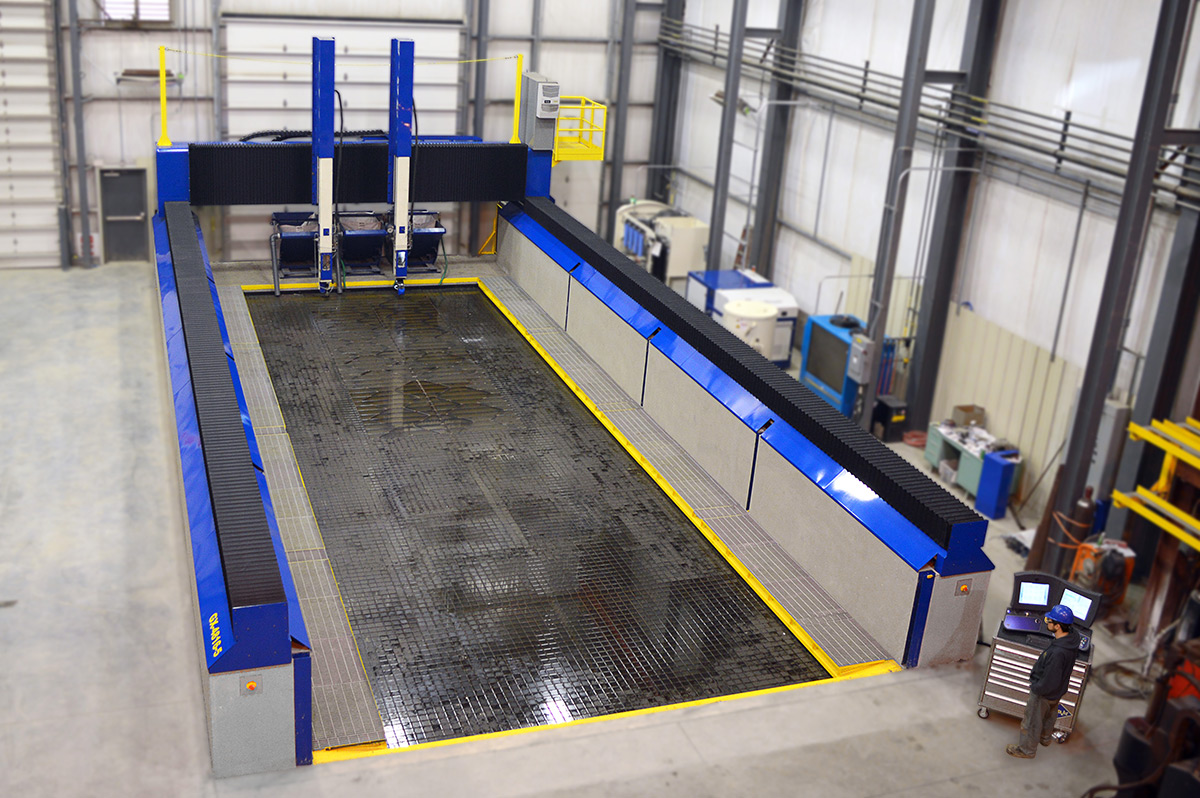

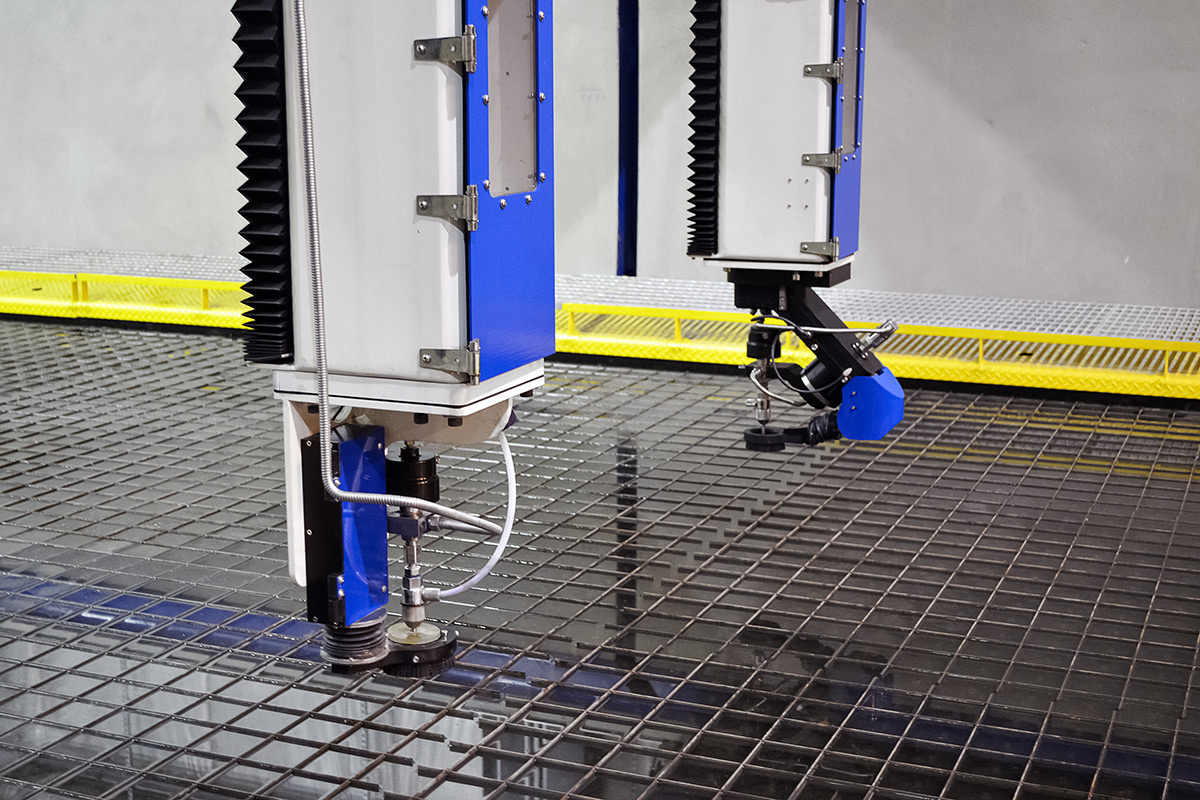

The GX-4816 waterjet has a cutting envelope measuring 48 feet by 16 feet – one of the largest in the country! Other notable features of the G-4816 include 5 feet of Z-travel, a high rail gantry with a safety line for operators to use when performing maintenance, and a system of multiple AROS hoppers to remove abrasive from the massive waterjet tank. As one of the largest waterjets ever installed in North America, the GX-4816 could be considered the most impressive WARDJet project to date.

Imperial Metric

Footprint
60' x 29'
18.29 m x 8.84 m
One Carriage X-Y Cutting Area
50' x 15.8'
15.24 m x 4.83 m
Two Carriage X-Y Cutting Area
50' x 13.3'
15.24 m x 4.04 m
Software
Ikuhlu, WARDCAM, IGEMS
Ikuhlu, WARDCAM, IGEMS
Power Requirements (Gantry Only)
230V, 30 amps, 3 Phase
230V, 30 amps, 3 Phase
Air Requirements
80 psi, 2 cfm
5.52 bar, 0.06 cmm
Max Number of Z-Carriages
4
4
Bulk Feed Hopper
2200 lb pressurized
2200 lb pressurized
Drive Mechanism
Helical rack and split pinion (X & Y). Ball screw driven Z.
Helical rack and split pinion (X & Y). Ball screw driven Z.
Linear Positional Accuracy
± 0.003" per axis
± 0.08 mm per axis
Repeatability
± 0.001" per axis
± 0.03 mm per axis
Speed
0.01 in/min - 500 in/min based on 230 volts
0.25 mm/min - 12700 mm/min based on 230 volts
