Z-2543
The Industry Standard
The Industry Standard

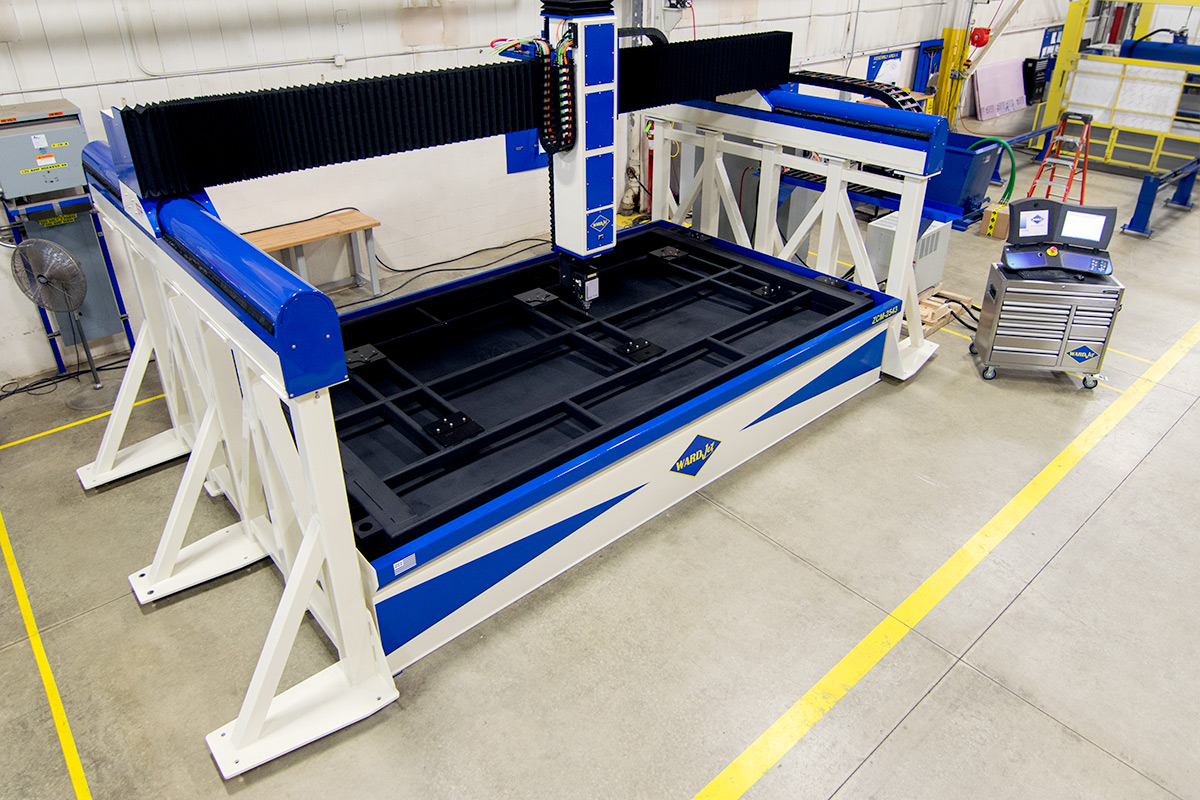

The tried-and-true design of the Z-2543 waterjet was established over twenty years ago, and it remains the most versatile waterjet in the industry today. This waterjet has a cutting envelope that handles a vast amount of common sheet sizes and allows for the cutting of unlimited sheet lengths. The easily upgradeable and expandable nature of the Z-2543 represents the core of our design philosophy.
Footprint
11' x 18.7'
3.35 m x 5.7 m
One Carriage X-Y Cutting Area
8.2' x 13.1'
2.5 m x 4 m
Two Carriage X-Y Cutting Area
8.2' x 14.1'
2.5 m x 4.31 m
Software
Ikuhlu, WARDCAM, IGEMS
Ikuhlu, WARDCAM, IGEMS
Power Requirements (Gantry Only)
230V, 30 amps, 3 Phase
230V, 30 amps, 3 Phase
Air Requirements
80 psi, 2 cfm
5.52 bar, 0.06 cmm
Max Number of Z-Carriages
7
7
Bulk Feed Hopper
1100 lb pressurized
1100 lb pressurized
Drive Mechanism
Ball screw driven in all axes
Ball screw driven in all axes
Linear Positional Accuracy
± 0.003" per axis
± 0.08 mm per axis
Repeatability
± 0.001" per axis
± 0.03 mm per axis
Speed
0.01 in/min - 500 in/min based on 230 volts
0.25 mm/min - 19050 mm/min based on 120 volts
