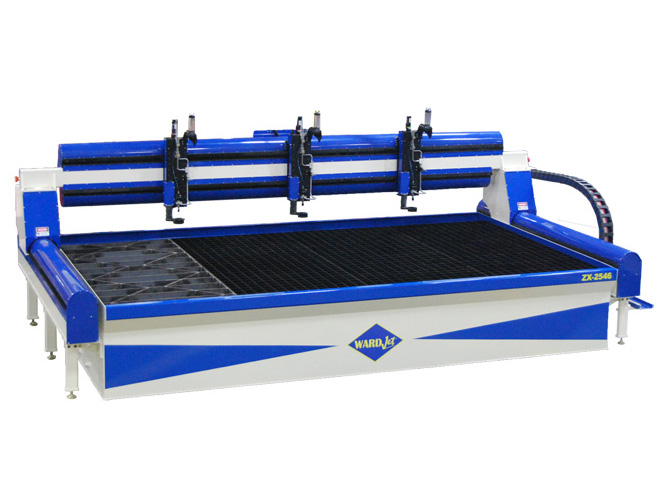

Z-2546
Bigger is Better
Bigger is Better

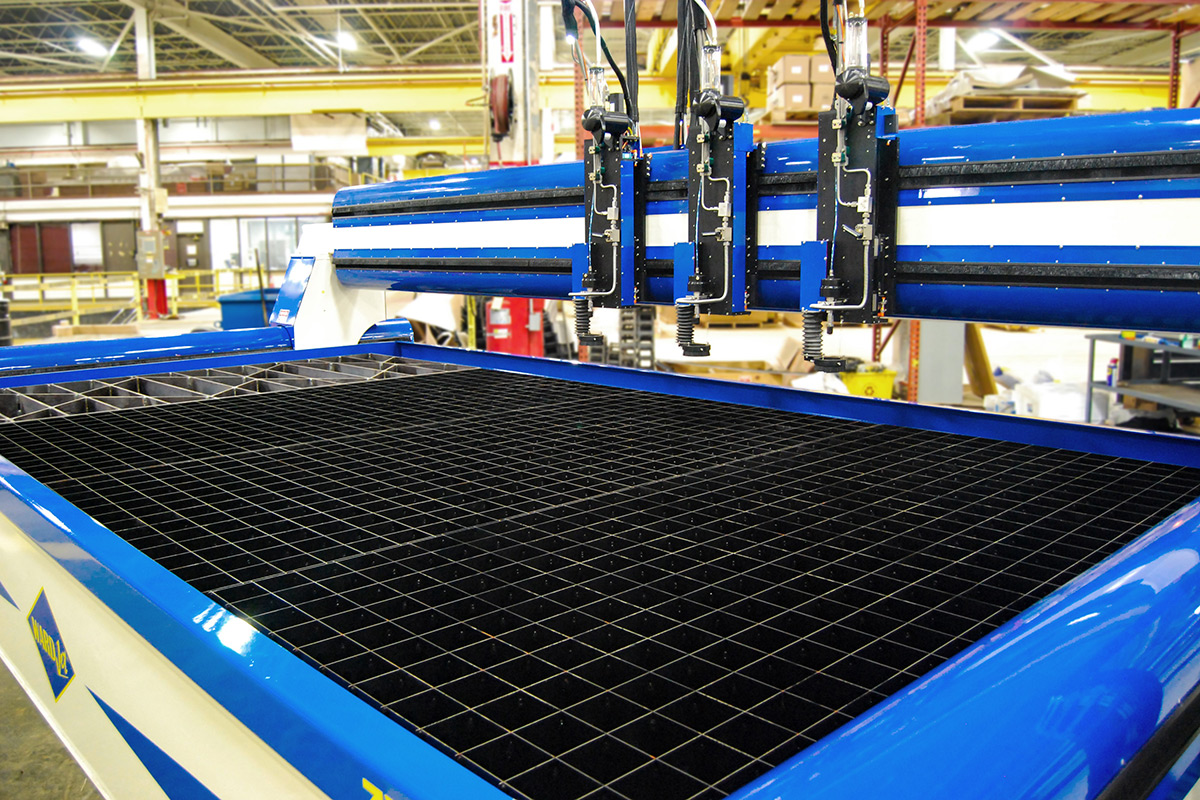

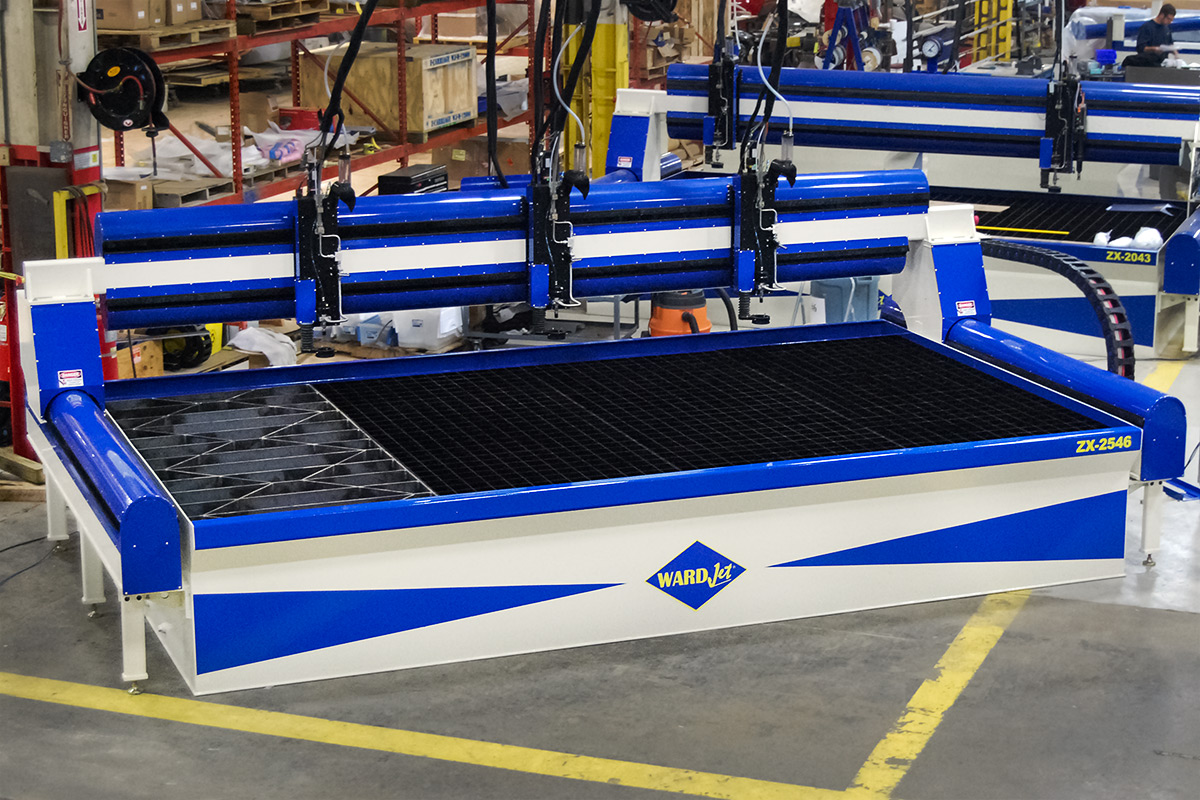

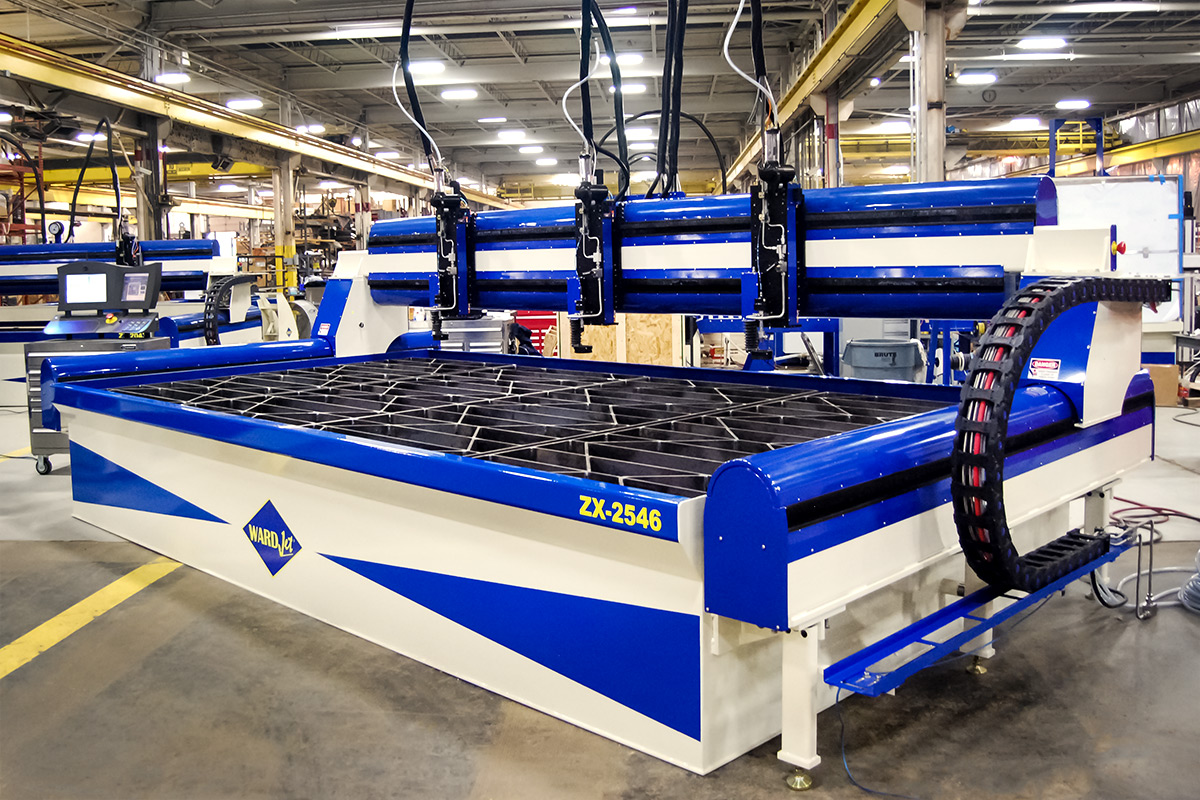

The Z-2546 waterjet was designed with multiple head cutting in mind. Users are able to park two cutting heads and still access the full cutting envelope. Optimize your Z-2546 with two standard cutting heads and a 5-Axis Infini Winder cutting head to cover the spectrum of both production and versatility.

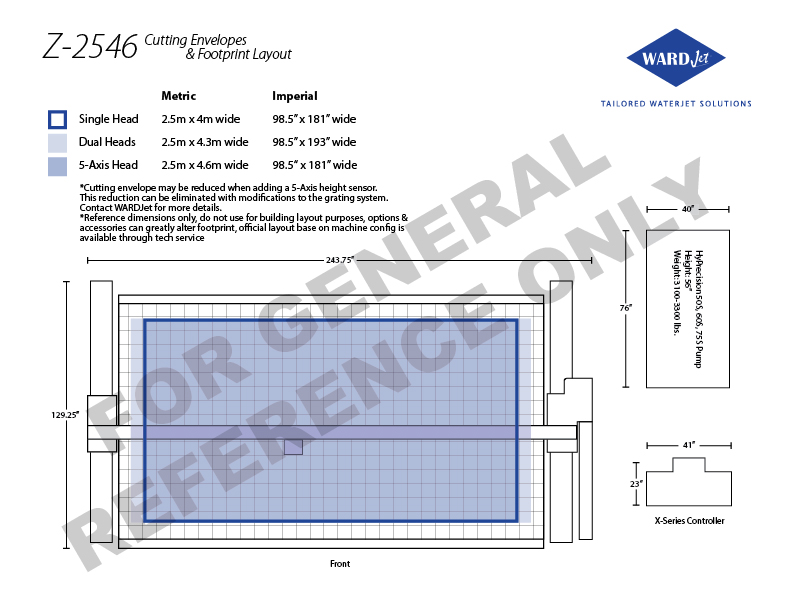

Footprint
10.8' x 20.3'
3.28 m x 6.19 m
One Carriage X-Y Cutting Area
8.2' x 15.1'
2.5 m x 4.6 m
Two Carriage X-Y Cutting Area
8.2' x 16.1'
2.5 m x 4.9 m
Software
Ikuhlu, WARDCAM, IGEMS
Ikuhlu, WARDCAM, IGEMS
Power Requirements (Gantry Only)
230V, 30 amps, 3 Phase
230V, 30 amps, 3 Phase
Air Requirements
80 psi, 2 cfm
5.52 bar, 0.06 cmm
Max Number of Z-Carriages
7
7
Bulk Feed Hopper
1100 lb pressurized
1100 lb pressurized

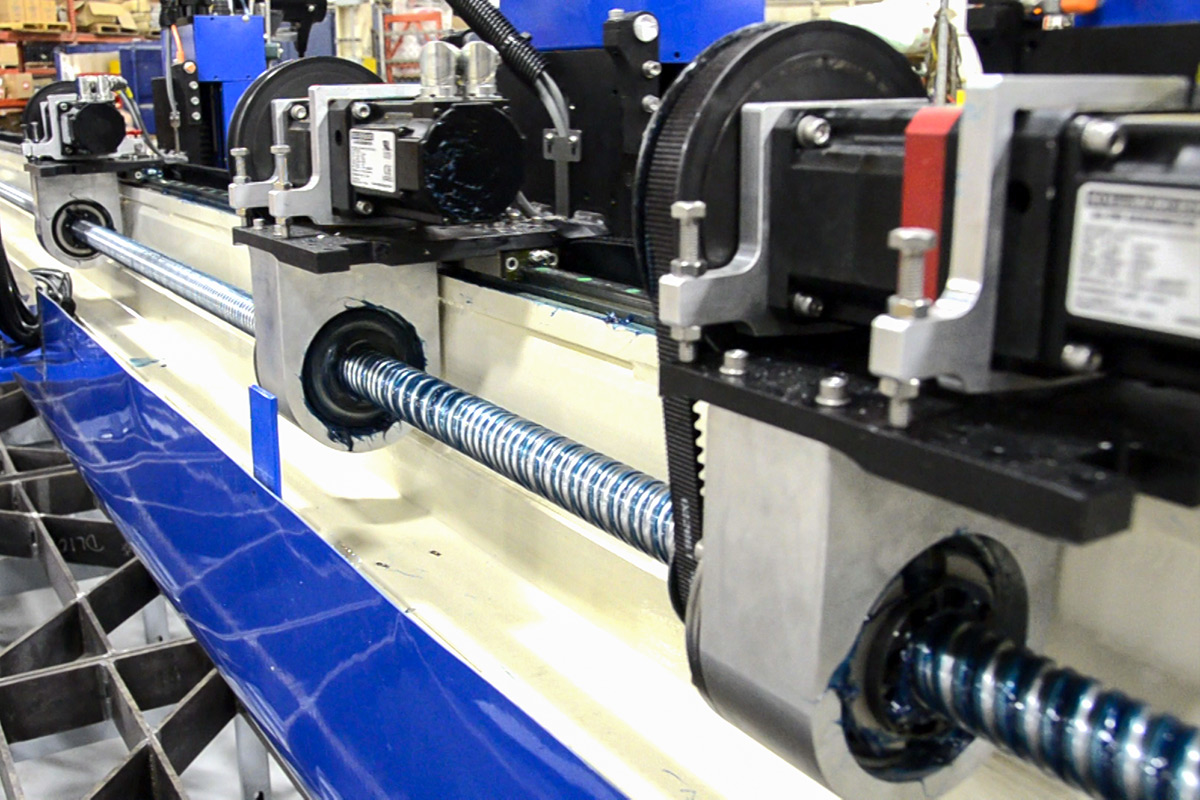

Drive Mechanism
Ball screw driven in all axes
Ball screw driven in all axes
Linear Positional Accuracy
± 0.003" per axis
± 0.08 mm per axis
Repeatability
± 0.001" per axis
± 0.03 mm per axis
Speed
0.01 in/min - 500 in/min based on 230 volts
0.25 mm/min - 12700 mm/min based on 230 volts
