JXL-108
Model Length Width Z Height
J-138 13 ft (3.9 m) 8 ft (2.4 m) 12 in
J-108 10 ft (3 m) 8 ft (2.4 m) 12 in
J-86 8 ft (2.4 m) 6 ft (1.8 m) 12 in
Custom Contact us!

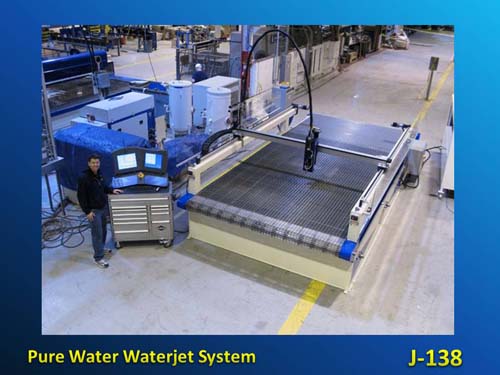

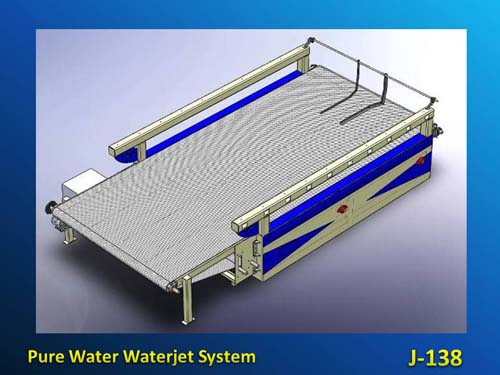

J-138 Waterjet Cutting System


J-138

Cutting Envelope: 13ft x 8ft

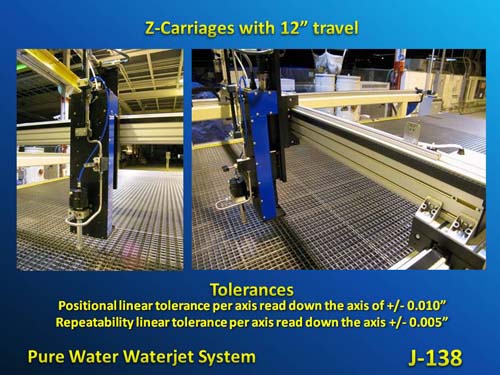

Z-Height: 12 inches



J-108 Waterjet Cutting System


J-108

Cutting Envelope: 10ft x 8ft

Z-Height: 12 inches

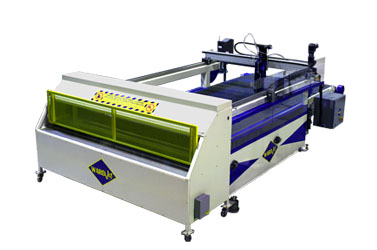

J-86 Waterjet Cutting System


J-86

Cutting Envelope: 8ft x 6ft

Z-Height: 12 inches




Request More Information →

WARDJet supplies parts for WARDJet waterjets and for most makes and models of waterjets. Read More »

J-Series Features

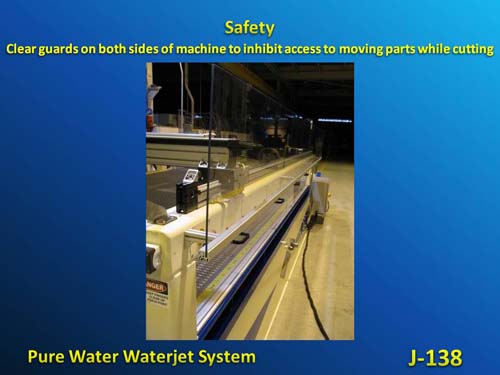

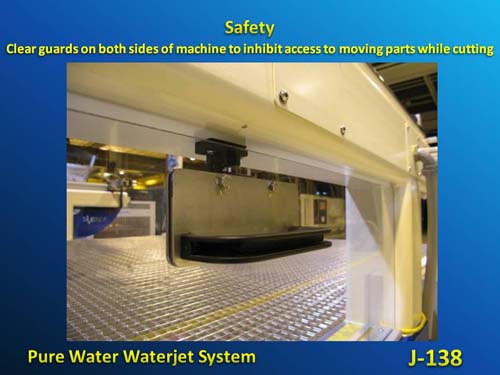

Safety

Many safety features ensure safe operation for your people and business.

Speed

It's fast. Speeds of 3000 inches per minute or 50 inches per second are achievable.

High acceleration / deceleration values are standard allowing small parts to be cut quickly.

Acceleration of 0.6 meters per second squared is standard.

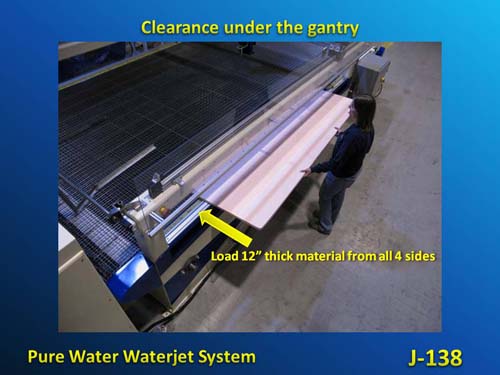

Loading Material

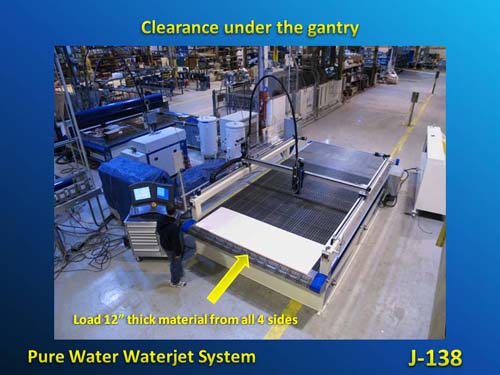

Material can be fed through the machine from all 4 sides.

Moveable Controller

The controller can be positioned anywhere around the machine - several times a day. You are not limited to one location for the controller.

E-Stop, Forward, and Reverse

E-Stop, forward, and reverse buttons can be operated from all 4 corners of the machine, allowing the entire system to be loaded, run, and unloaded by one operator.

Self Loading

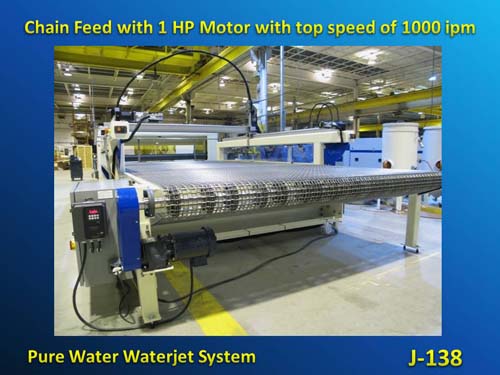

Self loading systems, either bun loaders or chain feed systems are available.

Pinch rollers are available to feed the system - all synchronized to the speed of the chain.

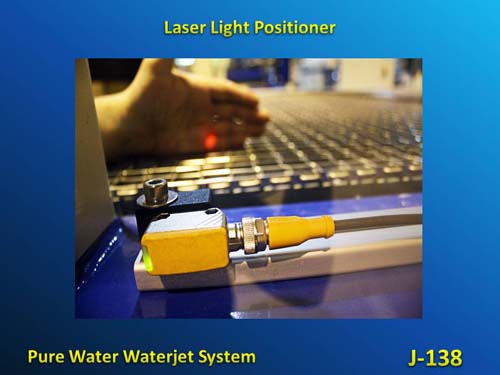

Laser Sensors

Laser sensors will allow automatic loading and unloading of the materials.

Rolls & Sheets

Load either large rolls of material or sheets.

Features & Accessories

Remote access, bar code reading, marking, wireless pendent operation, multiple heads and multiple functionality are just some of the features and accessories.

Upgradeable

All systems are upgradeable as you grow.

Want to know more?

Please call or visit us to learn more about this standard, proven, tested, and tried unit. You will be impressed.

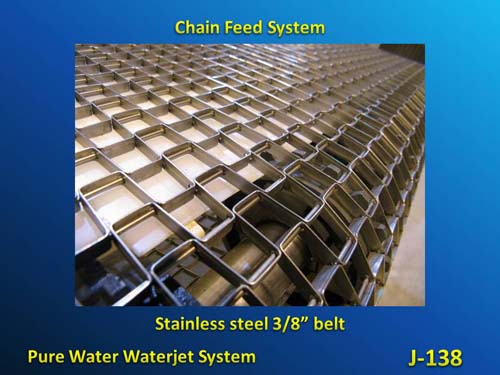

Shuttle Tables on Chain Conveyor

Shuttle Tables on Chain Conveyor

Shuttle Tables on Chain Conveyor

Shuttle Tables on Chain Conveyor

Shuttle Tables on Chain Conveyor

Shuttle Tables With Mesh and Sacrificial Foam

Shuttle Tables With Mesh and Sacrificial Foam

Shuttle Tables with Honeycomb

Shuttle Tables with Honeycomb

Shuttle Tables With Plastic Water Bricks

Shuttle Tables With Plastic Water Bricks

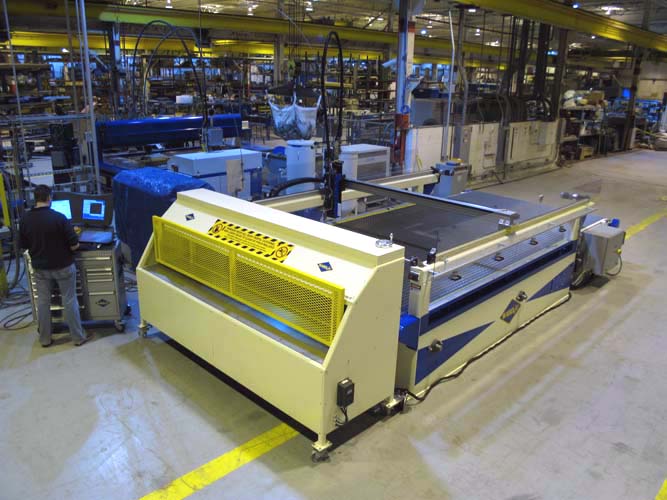

JXL-138

JXL-138 High Speed Water Only Waterjet Front View

JXL-138 Front View

JXL-138 High Speed Water Only Waterjet Front View

JXL-138 Rear View

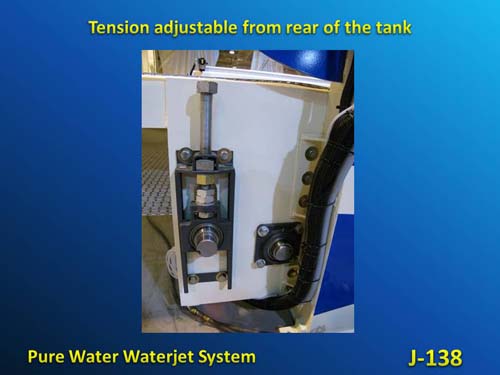

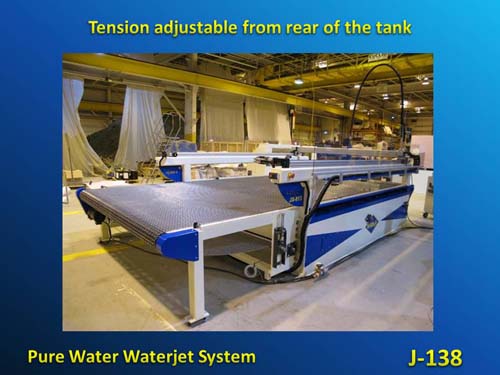

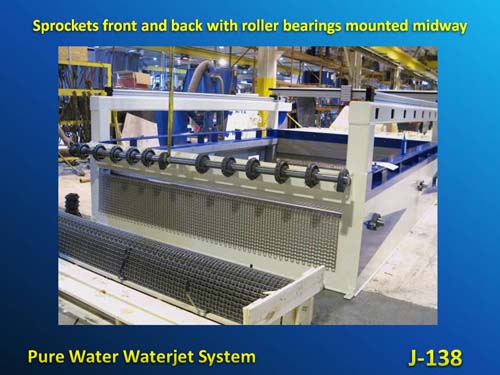

JXL-138 Chain Tensioning System with Abrasion Resistant UHMW Sheets and Roller

JXL-138 Chain Tensioning System with Abrasion Resistant UHMW Sheets and Roller

JXL-138 Chain Tensioning System with Abrasion Resistant UHMW Sheets and Roller

JXL-138 Chain Tensioning System

JXL-138 Chain Tensioning System with Abrasion Resistant UHMW Sheets and Roller

JXL-138 Chain Tensioning System

J-Series Waterjet Features and Options

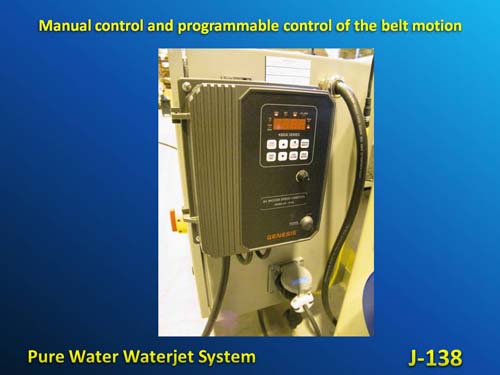

J-Series Belt Driven Loading Table

Belt Driven Loading Table

J-Series Belt Driven Loading Table

Belt Driven Loading Table

J-Series Loading Material

Loading Material

J-Series Loading Material with Laser Alignment Guides

Loading Material with Laser Alignment Guides

J-Series Laser Alignment Guides

Laser Alignment Guides

E-Stop, Forward and Reverse Chain Feed Controls

E-Stop, Forward and Reverse Chain Feed Controls

J-Series Redundant Proximity Switches

Redundant Proximity Switches

Removable Plastic Bricks

Removable Plastic Bricks

Load from Front

Load from Front

Load from Side

Load from Side

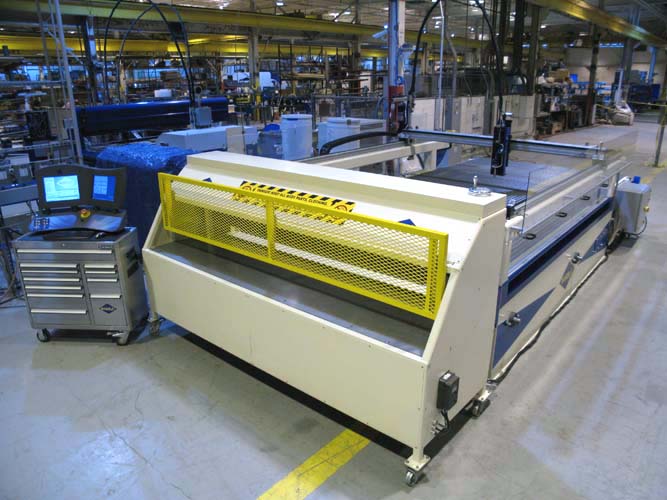

Pinch Roller With 12 inch Throat

Pinch Roller With 12 inch Throat

Pinch Roller and JX-138

Pinch Roller and JX-138

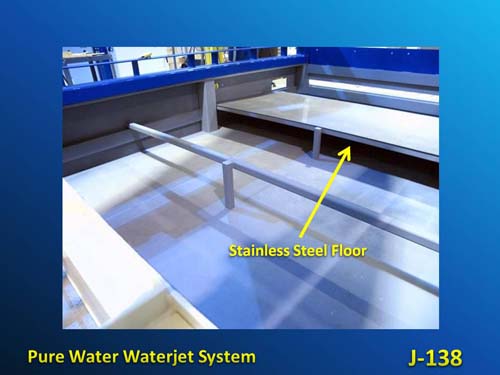

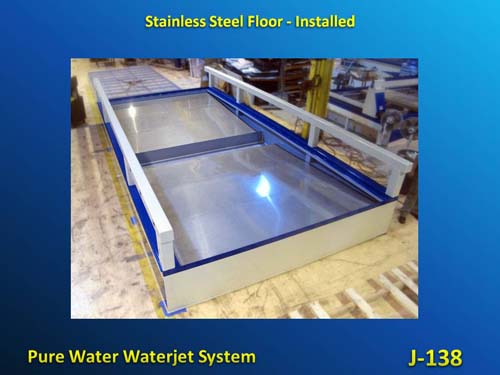

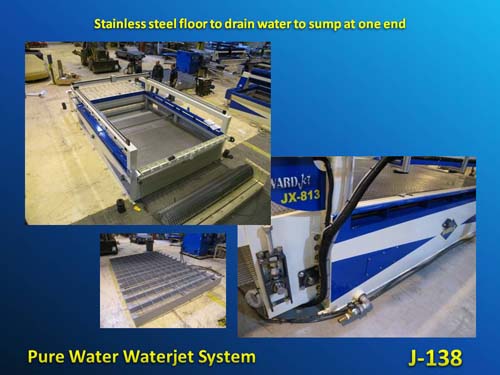

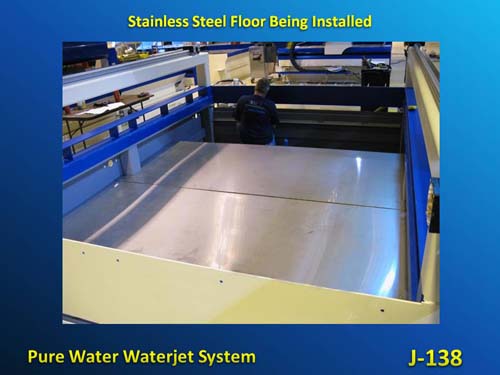

Stainless Steel Floor

Stainless Steel Floor

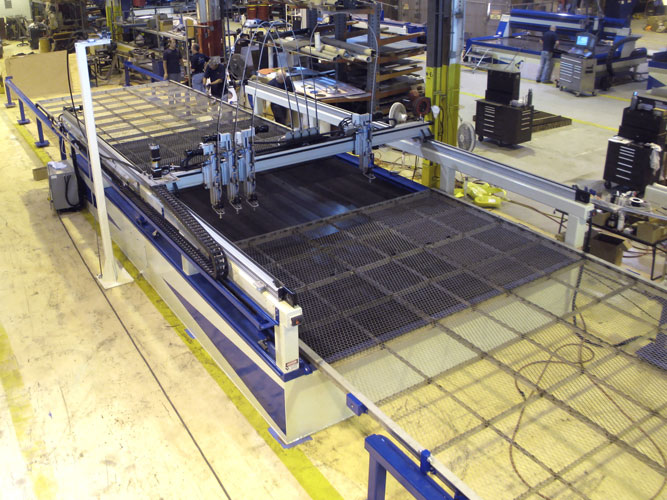

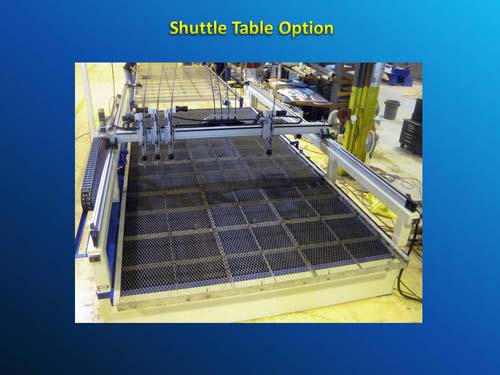

JX-7025 Large Format Waterjet with Shuttle Tables

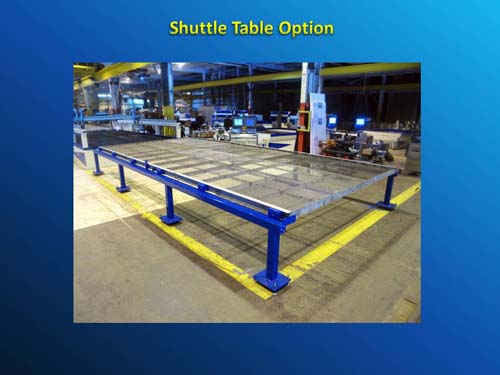

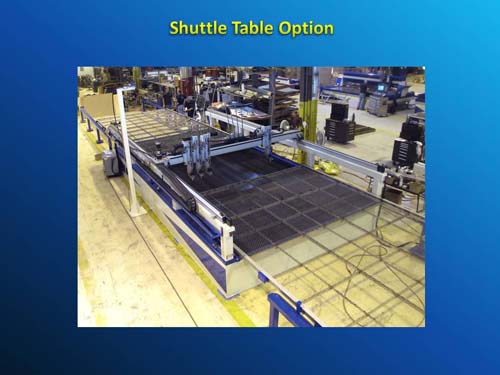

Shuttle Table



Shuttle Table Loaded Into Waterjet

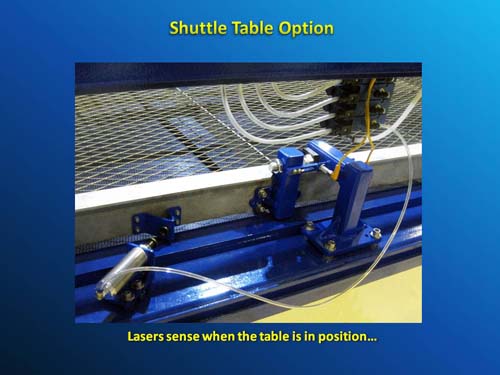

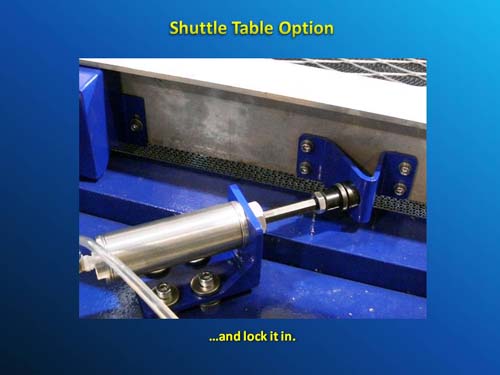

Automatic Locking Mechanism for Shuttle Tables



Automatic Locking Mechanism for Shuttle Tables



Request More Info

Contact our Sale Dept.

Save on Your Taxes

Section 179 Tax Incentives


J-Series Waterjets

The J-Series waterjets have been designed for the end user who specializes in cutting materials with PURE WATER such as:
Foam, rubber, insulation, plastic, acrylics, cloth, leather, fiber board, etc...

In some cases fiberglass, carbon fiber, and wood are cut with pure water waterjets, but better results may be achieved using an abrasive system.

Important principles for PURE WATER waterjet cutting:

The J-Series were designed to accommodate all the above situations and criteria.

You could increase your production substantially with one WARDJet J-Series pure water waterjet!


Videos


Layouts

Downloads

WARDJet Water Only Catalog
WARDJet Water Only Catalog


WARDJet Waterjet Product Catalog
Product Catalog


More to Consider

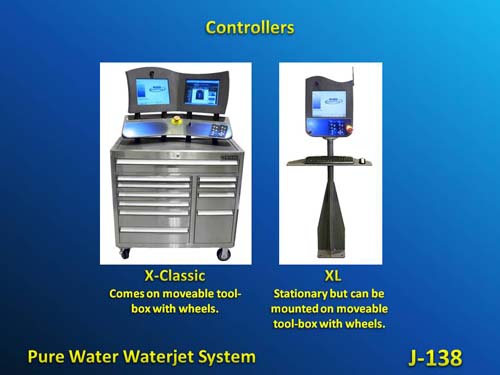

X-Classic Controller

Controllers

WARDJet offers 2 main controllers with their waterjets, the X-Classic, and the XL

Grates

Grates

WARDJet provides you with four different grating options; each one is specific to a different application.

Pumps

Pumps

WARDJet offers a full range of reliable and efficient waterjet intensifier pumps for every application.

Psy-Winder 5-axis cutting head

Options/Accessories

Choose the options and accessories you need to get the job done.
