HYPRECISION™ D-Series Waterjet Pumps

Optimizing Waterjet Performance

WARDJet offers a full range of reliable, efficient waterjet intensifier pumps from Hypertherm. These waterjet pumps are designed for around-the-clock operations, small prototype jobs, and every application in between. All Hypertherm pumps are engineered to be easy to operate - and even easier to maintain. WARDJet is Hypertherm's #1 waterjet partner and offers a full line of service, support and parts for all makes and models of waterjet pumps. WARDJet's team of expert field technicians can also service your existing equipment, even if it isn't a Hypertherm pump.

Exclusive Technology

The Advanced Intensifier Technology™ (AIT) is the exclusive technology that facilitates longer maintenance intervals and rapid component replacement.

Enhanced Hydraulic Circuit

Kidney loop circulates oil through a heat exchanger and oil filter, away from intensifier pulsations. When the pump is in standby, the oil is cool. (Available on 50+hp pumps)

Efficient Pressure Generation

High efficiency TEFC motors deliver reliable power with minimal electric consumption. Soft Start reduces inrush current when compared to Wye-Delta on pumps 50hp or greater.

Smooth High Pressure Water

Pressure-compensated hydraulic pumps and exclusive electronic shift technology maintain smooth ultra-high pressure water at the cutting heads.

Operation Convenience

Panel-mounted display pressure gauges allow easy monitoring of inlet water filters and hydraulic performance.

Maximum Cutting Performance

An inlet water filter system removes impurities to maximize cutting head performance. Boost pumps increase inlet water flow for 50+ HP pumps.

Remote Operation

Key switch enables all pump features to be operated and monitored at either the pump or remotely from a CNC controller.

Micro-SD Card Reader

Transfer pump maintenance and alarm logs quickly and easily. Download the latest WARDJet system software updates.

Added Versatility

Equipped with high and low pressure settings (ideal for piercing brittle materials). Safety dump valve relieves system pressure in case of a shutdown.

Advanced Intensifier Technology

At the heart of every HyPrecision waterjet, you’ll find the Advanced Intensifier Technology (AIT). Completely rethought to make it work harder, last longer, and require less service time. Result: the most reliable, most cost-effective waterjet in the world with a pump that typically outperforms all other systems by 20% or more

Download D-Series Brochure Now

Download Now

Imperial

Model	Max Ouput Flow	Max Orifice	Max Pressure	Configuration	Power	Bleed-Down Valve	Motor Starter

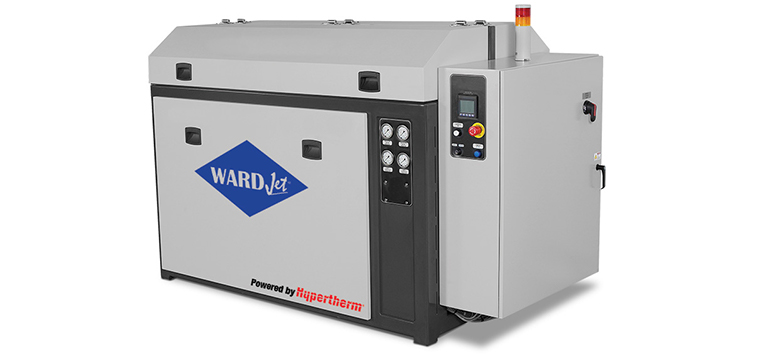

D-Series 100D	2.2 gpm	0.021"	60,000 psi	Dual	100hp	Hydraulic	True Soft Start

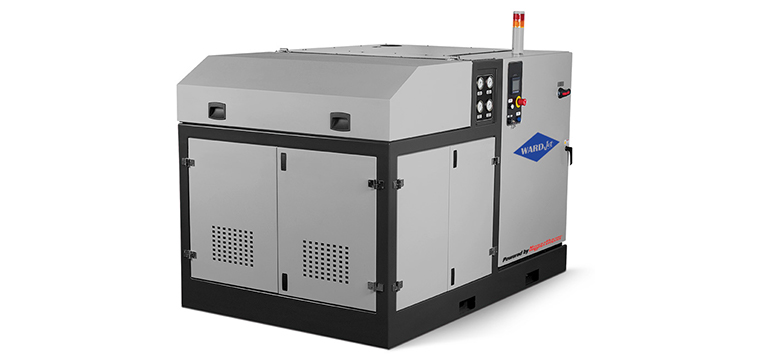

D-Series 150D	3.2 gpm	0.025"	60,000 psi	Dual	150hp	Hydraulic	True Soft Start

Metric

Model	Max Ouput Flow	Max Orifice	Max Pressure	Configuration	Power	Bleed-Down Valve	Motor Starter
D-Series 100D	7.95 lpm	0.508 mm	4137 bar	Dual	74.6 kW	Hydraulic	True Soft Start
D-Series 150D	11.36 lpm	0.610 mm	4137 bar	Dual	111.9 kW	Hydraulic	True Soft Start

Scroll to see entire chart


	Echion Series						Predictive Series						D-Series
	Echion 15		Echion 30		Echion 50		P-Series 50S		P-Series 60S		P-Series 75S		D-Series 100D		D-Series 150D
	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
Maximum output flow	0.30 gpm (1.1 lpm)		0.60 gpm (2.3 lpm)		1.0 gpm (3.8 lpm)		1.0 gpm (3.79 lpm)	1.1 gpm (4.16 lpm)	1.2 gpm (4.54 lpm)	1.3 gpm (4.92 lpm)	1.5 gpm (5.68 lpm)	1.6 gpm (6.06 lpm)	2.1 gpm (7.95 lpm)	2.2 gpm (8.33 lpm)	3.0 gpm (11.36 lpm)	3.2 gpm (12.11 lpm)
Maximum orifice	0.007″ (0.18 mm)		0.011″ (0.28 mm)		0.014″ (0.35 mm)		0.014″ (0.356 mm)	0.015″ (0.38 mm)	0.016″ (0.406 mm)		0.017″ (0.432 mm)	0.018″ (0.457 mm)	0.020″ (0.508 mm)	0.021″ (0.533 mm)	0.024″ (0.610 mm)	0.025″ (0.635 mm)
Continuous output pressure	Adjustable to 60,000 psi (4137 bar)
Intensifier configuration	Single						Single or Redundant		Single		Single or Redundant		Dual
Pressure control	Closed Loop Proportional												Electronic Proportional
Bleed-down valve	Air												Hydraulic

Motor Power	15hp (11.2 kW)		30hp (22.4 kW)		50hp (37.3 kW)		50hp (37.3 kW)		60hp (44.7 kW)		75hp (56 kW)		100hp (74.6 kW)		150hp (111.9 kW)
Voltage	400 V	208-230/460 V	400 V	208-230/460 V	400 V	208-230/460 V	400 V	208-230/460 V	400 V	460 V	400 V	460 V	400 V	460 V	400 V	460 V
Full load	23 A	45-41/21 A	44 A	83-75/38 A	73 A	135-122/61 A	73 A	138-125/62 A	75 A	71.1 A	103 A	87.1 A	138 A	117.5 A	204 A	173.4 A
Main breaker	30 A	60 / 30 A	50 A	200 / 50 A	100 A	175 / 100 A	80 A	150 / 80 A	100 A		125 A	100 A	150 A		225 A
Motor starter	ATL		Wye Delta/Soft Start	ATL / ATL/Soft Start	Wye-Delta/Soft Start		Soft Start						True Soft Start
Overall width	43″ (1090 mm)						40″ (1016 mm)						45″ (1143 mm)		55″ (1397 mm)
Overall length	53″ (1350 mm)						79″ (1996 mm)						86″ (2184 mm)		81″ (2057 mm)
Overall height	40″ (1010 mm)						59″ (1509 mm)						56″ (1422 mm)		56″ (1422 mm)
Approximate operating weight	1700 lb (775 kg)		1850 lb (825 kg)		2050 lb (925 kg)		2800 lb (1300 kg)		3200 lb (1450 kg)		3300 lb (1500 kg)		4150 lb (1882 kg)		6100 lb (2767 kg)
Additional Items
	Optional internal air-over-oil cooler						Optional external air-over-oil cooler						Optional external air-over-oil cooler
	Optional internal boost pump						Standard internal boost pump						Standard internal boost pump
	Optional metric conversion kit						Cover with viewing window						Optional water isolation valves		Standard water isolation valves
	–						Optional electrical interlock						–
Hydraulic Cooling Water (if not air cooled)
	Echion 15		Echion 30		Echion 50		HyPrecision P-Series 50S		HyPrecision P-Series 60S		HyPrecision P-Series 75S		HyPrecision 100D		HyPrecision 150D
	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
Normal Inlet Flow Rate	3 gpm (11.5 lpm)												8 gpm (30 lpm)		10 gpm (38 lpm)
Min. Inlet Water Pressure	40 psi (2.76 bar)
Max. Inlet Water Pressure	115 psi (7.93 bar)
Max. Inlet Temp.	70°F (21°C)
Min. Inlet Temp	40°F (4.4°C)

Orifice combinations supported by the HyPrecision pumps

Echion 15

Orifice size	in (mm)
1 orifice	0.007 (0.18)
2 orifices	0.005 (0.13)
3 orifices	0.004 (0.10)
4 orifices	–
5 orifices	–
6 orifices	–

Echion 30

Orifice size	in (mm)
1 orifice	0.011 (0.28)
2 orifices	0.007 (0.18)
3 orifices	0.006 (0.15)
4 orifices	0.005 (0.13)
5 orifices	0.004 (0.10)
6 orifices	–

Echion 50

Orifice size	in (mm)
1 orifice	0.014 (0.35)
2 orifices	0.010 (0.25)
3 orifices	0.008 (0.20)
4 orifices	0.007 (0.18)
5 orifices	0.006 (0.15)
6 orifices	0.005 (0.13)

Nozzle and Orifice Combinations

Orifice	Nozzle	Abrasive (lb/min)	Abrasive mesh
0.007	0.020	0.25	120 – 220
0.009	0.030	0.4 – .6	80 – 120
0.010	0.030	0.5 – .75	80 – 120
0.013	0.040	1.0 – 1.25	60 – 80
0.014	0.040	1.1 – 1.35	60 – 80
0.015	0.040	1.25 – 1.5	60 – 80
0.016	0.040	1.3 – 1.5	60 – 80

HP	Qty heads	Orifice/Nozzle
30	1	.010/.030
30	2	.006 water
50	1	.014/.040
50	2	.010/.030

Power vs. flow for HyPrecision waterjet pumps

Model	Power		Pressure		Max. output flow		Max. orifice size
	hp	kW	psi	bar	GPM	L/min	in	mm
15	15	11.2	60,000	4137	0.3	1.1	0.007	0.18
30	30	22	60,000	4137	0.60	2.30	0.011	0.28
50	50	37	60,000	4137	1.00	3.80	0.014	0.35
