In today’s manufacturing environment, speed, precision, and automation are essential for maintaining productivity and staying competitive. Manufacturers working with soft materials such as foam, rubber, and gasketing products need cutting systems that can deliver consistent quality while keeping throughput high and operator involvement low.
That’s exactly where the WardJet J Series stands out.
Designed specifically for high-throughput processing of soft goods materials, the WardJet J Series combines water-only cutting technology with advanced automation features to create a fast, clean, and highly efficient production workflow. Whether you’re cutting foam packaging, industrial rubber components, insulation materials, or gasketing products, the J Series is engineered to maximize production efficiency without sacrificing precision.
In this article, we’ll explore the key features, advantages, and applications of the WardJet J Series and explain why it has become a preferred solution for manufacturers looking to automate and streamline soft material cutting operations.
What Is the WardJet J Series?
The WardJet J-Series is a specialized CNC waterjet cutting system designed for soft materials. Unlike traditional abrasive waterjet systems, the J Series uses a water-only cutting process, eliminating the need for abrasive media.
This approach delivers several major advantages:
- Faster cutting speeds
- Cleaner operation
- Reduced maintenance
- Lower operating costs
- High-quality cut edges
- Minimal secondary processing
Because the process uses only water, manufacturers can maintain cleaner production environments while reducing downtime associated with abrasive handling and cleanup.
The J Series is purpose-built for continuous production environments where speed and efficiency are critical.
Engineered for High-Throughput Production
One of the defining features of the J Series is its ability to handle extremely high production volumes.
The system is capable of cutting at speeds up to:
- 2,000 inches per minute
- Acceleration up to 60 inches per second squared
These performance capabilities allow manufacturers to significantly reduce cycle times while increasing output.
For facilities processing large quantities of foam, rubber, or gasket materials daily, these speed advantages can dramatically improve operational efficiency.
Multiple Cutting Heads for Increased Productivity
To further boost throughput, the J Series can be configured with multiple cutting heads.
Manufacturers can operate:
- One head
- Two heads
- Three heads
- Up to four cutting heads simultaneously
This enables multiple parts to be cut at the same time, maximizing machine utilization and production capacity.
For companies scaling production or managing high-demand workflows, multi-head configurations can provide a substantial competitive advantage.
Stack Cutting for Maximum Material Utilization
Another major productivity feature of the J Series is its ability to cut stacked materials.
Instead of processing single sheets individually, operators can stack multiple layers and cut them in a single pass. This dramatically reduces handling time and increases throughput.
Stack cutting is especially beneficial for:
- Foam converters
- Gasket manufacturers
- Packaging suppliers
- Industrial insulation producers
By reducing the number of cutting cycles required, manufacturers can improve efficiency while lowering labor costs.
Advanced Automation Features
Modern manufacturing increasingly depends on automation to improve consistency and reduce operator involvement. The WardJet J Series is designed with this in mind.

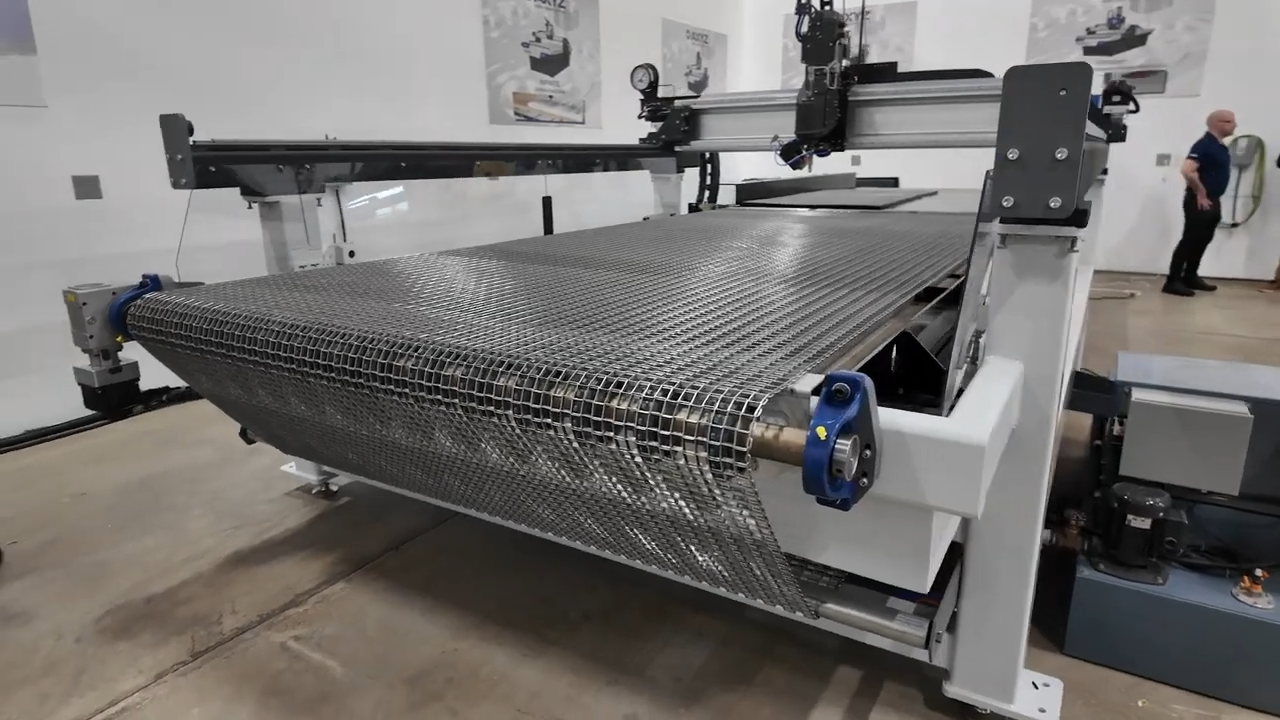

Automated Infeed Conveyor System
The featured J106 configuration includes an integrated infeed conveyor system with a built-in control panel.
The workflow is simple and highly efficient:
- The operator loads material onto the infeed conveyor
- Material is aligned against the side guide
- The operator presses the load button
- The system automatically feeds material into the cutting area
- A built-in photoeye sensor positions the material accurately for cutting
This automated loading process helps maintain continuous production while minimizing manual handling.
Rapid Material Handling
The entire loading and offloading process takes less than five seconds.
This rapid handling capability significantly reduces downtime between cutting cycles and contributes to overall production efficiency.
Optional Outfeed Automation
For manufacturers seeking even greater automation, the J Series can also be equipped with an optional outfeed table.
This creates a fully automated material handling workflow, helping facilities:
- Reduce labor requirements
- Improve consistency
- Increase throughput
- Minimize bottlenecks
Flexible Material Feeding Options
Many soft material applications involve rolled stock rather than flat sheets. The J Series supports these applications through optional pinch feed roller integration.
Pinch Feed Roller System
The pinch feed roller system grips and advances rolled materials directly into the cutting area.
This feature is ideal for:
- Foam rolls
- Rubber rolls
- Textile-backed materials
- Flexible gasketing products
By automating material advancement, the system enables continuous cutting workflows that further enhance productivity.

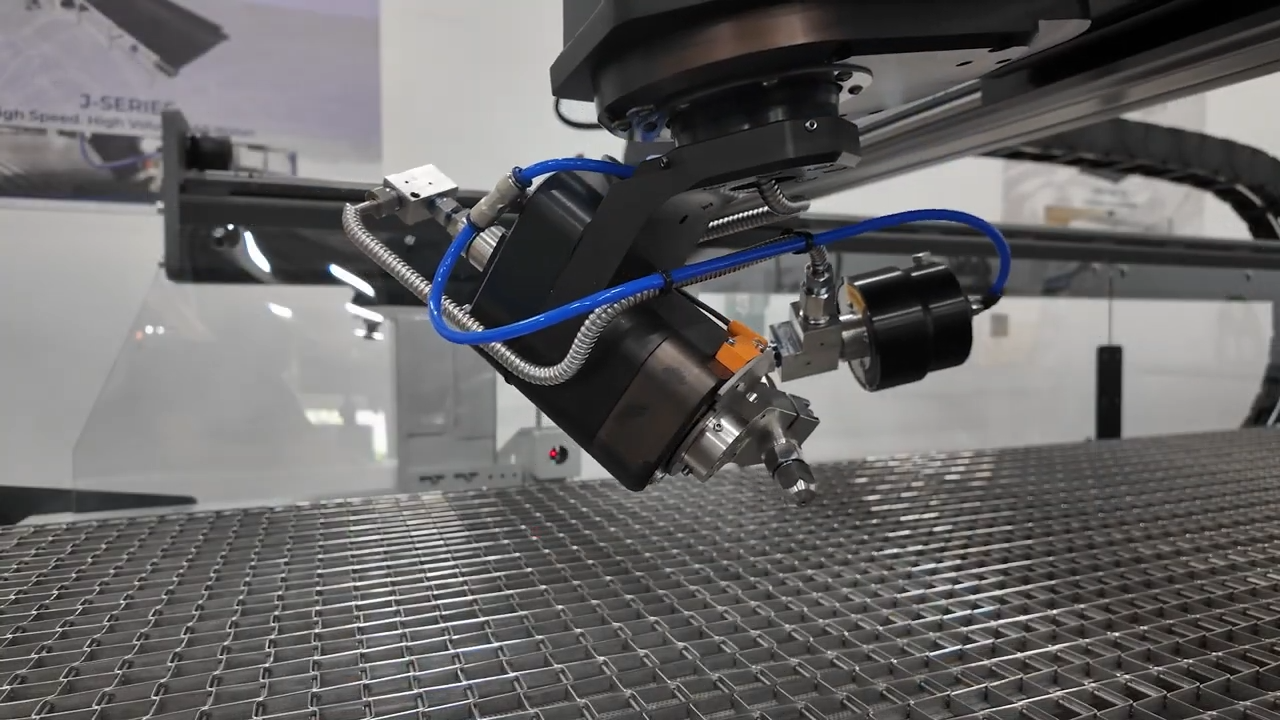

Apex 60 Cutting Head: Beyond Vertical Cutting
The J Series featured in the demonstration includes WardJet’s advanced Apex 60 cutting head.
This cutting head goes beyond standard vertical cutting by offering tilt and articulation capabilities.
Capabilities of the Apex 60 Include:
- Angled cuts
- Bevel cuts
- Complex geometries
- Advanced contouring
This flexibility allows manufacturers to produce more sophisticated parts without requiring secondary machining operations.
For industries requiring custom geometries or specialized edge profiles, the Apex 60 provides exceptional versatility.
Clean Cuts with No Abrasive
One of the biggest advantages of the WardJet J Series is the water-only cutting process.
Traditional abrasive waterjet systems use garnet abrasive to cut harder materials. While effective, abrasive systems can create:
- Additional cleanup
- Increased maintenance
- Higher consumable costs
- Abrasive disposal requirements
The J Series eliminates these issues entirely.
Benefits of Water-Only Cutting
Using only water provides several important benefits:
Cleaner Production Environment
Without abrasive media, facilities remain cleaner and easier to maintain.
Lower Operating Costs
No abrasive means reduced consumable expenses and simplified maintenance.
Faster Processing
Water-only cutting allows for faster movement and shorter cycle times when cutting soft materials.
High-Quality Edges
The process produces smooth, clean edges that often require no secondary finishing.
For many manufacturers, eliminating secondary processing can significantly improve efficiency and reduce labor requirements.
Applications for the WardJet J Series
The WardJet J Series is ideal for a wide range of soft material cutting applications.

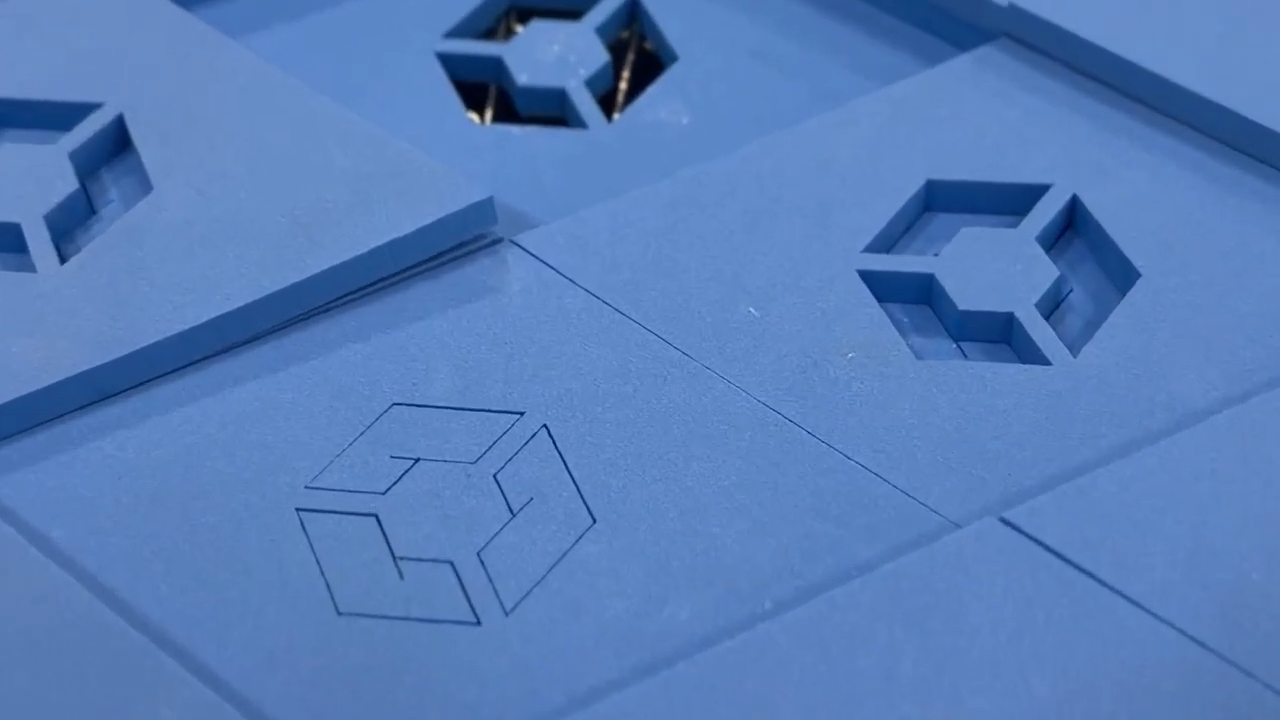

Foam Cutting
The system excels at processing:
- Packaging foam
- Polyurethane foam
- EVA foam
- Acoustic foam
- Protective inserts
Rubber Cutting
The J Series is highly effective for:
- Industrial rubber sheets
- Neoprene
- Silicone rubber
- Automotive rubber components
Gasket Manufacturing
Manufacturers producing custom gaskets benefit from:
- Fast cycle times
- Precision cutting
- Stack processing capabilities
Insulation Materials
The system can also process:
- Fiberglass insulation
- Industrial insulation products
- Thermal barrier materials
Why Automation Matters in Modern Manufacturing
Manufacturers today face increasing pressure to:
- Reduce labor dependency
- Improve throughput
- Maintain consistent quality
- Shorten lead times
The WardJet J Series addresses these challenges by integrating automation directly into the cutting workflow.
Reduced Operator Involvement
Automated loading, positioning, and material handling minimize manual intervention.
This allows operators to:
- Oversee multiple processes
- Reduce repetitive tasks
- Improve production consistency
Continuous Production Capability
The J Series is designed for continuous operation in demanding production environments.
With fast loading times, high-speed cutting, and optional automation upgrades, manufacturers can maintain steady production flow throughout the day.
The Advantage of Custom Configuration
Every manufacturing operation has unique requirements. The WardJet J Series can be configured to match specific production goals.
Available customization options include:
- Multiple cutting heads
- Conveyor systems
- Pinch feed rollers
- Outfeed automation
- Specialized cutting heads
This flexibility allows manufacturers to build a solution optimized for their workflow.
To learn more about custom waterjet configurations, visit: https://www.wardjet.com/series/custom-waterjets/
Experience the WardJet J Series in Action
Choosing the right cutting system is an important investment. WardJet offers manufacturers the opportunity to evaluate the J Series firsthand through:
- Test cuts
- Live machine demonstrations
- Application consultations
By testing your materials and production requirements directly on the system, you can see exactly how the J Series can improve efficiency and throughput in your operation.
Final Thoughts
The WardJet J Series represents a powerful solution for manufacturers working with foam, rubber, gasketing, and other soft materials.
By combining:
- Water-only cutting
- High-speed performance
- Advanced automation
- Flexible material handling
- Multi-head cutting capabilities
the J Series delivers the speed, precision, and efficiency required for modern production environments.
For manufacturers seeking cleaner operation, faster cycle times, and reduced operator involvement, the WardJet J Series offers a proven path toward higher productivity and improved workflow automation.
If you’d like to learn more about the WardJet J Series or schedule a test cut, contact the WardJet team today.
