Waterjet Intensifier Pumps

Easy to Operate. Easy to Maintain.

WARDJet offers a full range of reliable, efficient waterjet intensifier pumps from Hypertherm. These waterjet pumps are designed for around-the-clock operations, small prototype jobs, and every application in between. All Hypertherm pumps are engineered to be easy to operate – and even easier to maintain. WARDJet is Hypertherm’s #1 waterjet partner and offers a full line of service, support and parts for all makes and models of waterjet pumps. WARDJet’s team of expert field technicians can also service your existing equipment, even if it isn’t a Hypertherm pump.

Reduced Maintenance

Advanced Intensifier Technology allows for longer intervals between scheduled maintenance and quick component changeover.

Simple Control

Control your pump remotely, directly from your WARDJet controller.

Consistent, Reliable Operation

Hypertherm intensifiers are designed for 60k psi water on demand, just when you need it.

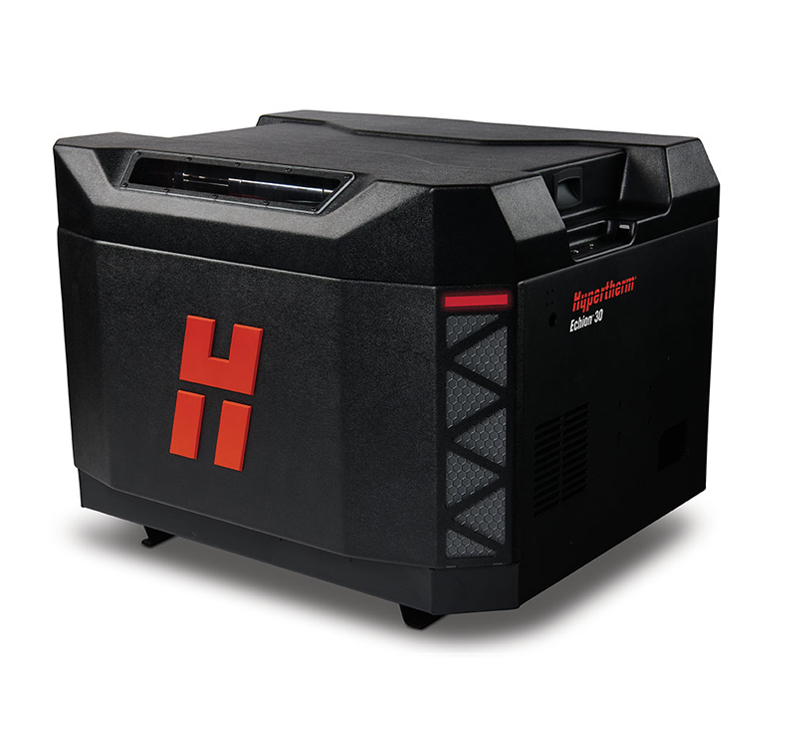

Echion predictive waterjet pumps

Available in three power levels, Echion™ 15, 30, and 50 waterjet pumps deliver consistent cut quality at optimum cutting speeds and a design that simplifies service so maintenance is faster, easier, and less expensive. At the same time, Echion™ pumps include features like fully integrated cooling for a smaller footprint that enables easy integration into small spaces.

Imperial

Model	Max Ouput Flow	Max Orifice	Max Pressure	Configuration	Power	Bleed-Down Valve	Motor Starter
Echion 15	0.30 gpm	0.007"	60,000 psi	Single	15hp	Air	ATL
Echion 30	0.60 gpm	0.011"	60,000 psi	Single	30hp	Air	Air
Echion 50	1.0 gpm	0.014"	60,000 psi	Single	50hp	Air	Wye-Delta/Soft Start
P-Series 50S	1.0 gpm	0.014"	60,000 psi	60,000 psi	50hp	Air	True Soft Start
P-Series 60S	P-Series 60S	0.016"	60,000 psi	Single	60hp	Air	True Soft Start
P-Series 75S	1.5 gpm	0.017"	60,000 psi	Single or Redundant	75hp	Air	Air
D-Series 100D	2.2 gpm	0.021"	60,000 psi	Dual	100hp	Hydraulic	True Soft Start
D-Series 150D	3.2 gpm	0.025"	60,000 psi	Dual	150hp	Hydraulic	True Soft Start

Metric

Model	Max Ouput Flow	Max Orifice	Max Pressure	Configuration	Power	Bleed-Down Valve	Motor Starter
Echion 15	1.10 lpm	0.18 mm	4137 bar	Single	Single	Air	ATL
Echion 30	2.30 lpm	0.28 mm	4137 bar	Single	22.4 kW	Air	Air
Echion 50	3.80 lpm	0.35 mm	4137 bar	Single	37.3 kW	Air	Wye-Delta/Soft Start
P-Series 50S	3.79 lpm	0.35 mm	4137 bar	Single or Redundant	37 kW	Air	True Soft Start
P-Series 60S	4.54 lpm	0.40 mm	4137 bar	Single	44 kW	Air	True Soft Start
P-Series 75S	5.68 lpm	0.43 mm	4137 bar	Single or Redundant	56 kW	Air	True Soft Start
D-Series 100D	7.95 lpm	0.508 mm	4137 bar	Dual	74.6 kW	Hydraulic
D-Series 150D	11.36 lpm	0.610 mm	4137 bar	Dual	111.9 kW	Hydraulic	True Soft Start

Scroll to see entire chart


	Echion Series						Predictive Series						D-Series
	Echion 15		Echion 30		Echion 50		P-Series 50S		P-Series 60S		P-Series 75S		D-Series 100D		D-Series 150D
	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
Maximum output flow	0.30 gpm (1.1 lpm)		0.60 gpm (2.3 lpm)		1.0 gpm (3.8 lpm)		1.0 gpm (3.79 lpm)	1.1 gpm (4.16 lpm)	1.2 gpm (4.54 lpm)	1.3 gpm (4.92 lpm)	1.5 gpm (5.68 lpm)	1.6 gpm (6.06 lpm)	2.1 gpm (7.95 lpm)	2.2 gpm (8.33 lpm)	3.0 gpm (11.36 lpm)	3.2 gpm (12.11 lpm)
Maximum orifice	0.007″ (0.18 mm)		0.011″ (0.28 mm)		0.014″ (0.35 mm)		0.014″ (0.356 mm)	0.015″ (0.38 mm)	0.016″ (0.406 mm)		0.017″ (0.432 mm)	0.018″ (0.457 mm)	0.020″ (0.508 mm)	0.021″ (0.533 mm)	0.024″ (0.610 mm)	0.025″ (0.635 mm)
Continuous output pressure	Adjustable to 60,000 psi (4137 bar)
Intensifier configuration	Single						Single or Redundant		Single		Single or Redundant		Dual
Pressure control	Closed Loop Proportional												Electronic Proportional
Bleed-down valve	Air												Hydraulic

Motor Power	15hp (11.2 kW)		30hp (22.4 kW)		50hp (37.3 kW)		50hp (37.3 kW)		60hp (44.7 kW)		75hp (56 kW)		100hp (74.6 kW)		150hp (111.9 kW)
Voltage	400 V	208-230/460 V	400 V	208-230/460 V	400 V	208-230/460 V	400 V	208-230/460 V	400 V	460 V	400 V	460 V	400 V	460 V	400 V	460 V
Full load	23 A	45-41/21 A	44 A	83-75/38 A	73 A	135-122/61 A	73 A	138-125/62 A	75 A	71.1 A	103 A	87.1 A	138 A	117.5 A	204 A	173.4 A
Main breaker	30 A	60 / 30 A	50 A	200 / 50 A	100 A	175 / 100 A	80 A	150 / 80 A	100 A		125 A	100 A	150 A		225 A
Motor starter	ATL		Wye Delta/Soft Start	ATL / ATL/Soft Start	Wye-Delta/Soft Start		Soft Start						True Soft Start
Overall width	43″ (1090 mm)						40″ (1016 mm)						45″ (1143 mm)		55″ (1397 mm)
Overall length	53″ (1350 mm)						79″ (1996 mm)						86″ (2184 mm)		81″ (2057 mm)
Overall height	40″ (1010 mm)						59″ (1509 mm)						56″ (1422 mm)		56″ (1422 mm)
Approximate operating weight	1700 lb (775 kg)		1850 lb (825 kg)		2050 lb (925 kg)		2800 lb (1300 kg)		3200 lb (1450 kg)		3300 lb (1500 kg)		4150 lb (1882 kg)		6100 lb (2767 kg)
Additional Items
	Optional internal air-over-oil cooler						Optional external air-over-oil cooler						Optional external air-over-oil cooler
	Optional internal boost pump						Standard internal boost pump						Standard internal boost pump
	Optional metric conversion kit						Cover with viewing window						Optional water isolation valves		Standard water isolation valves
	–						Optional electrical interlock						–
Hydraulic Cooling Water (if not air cooled)

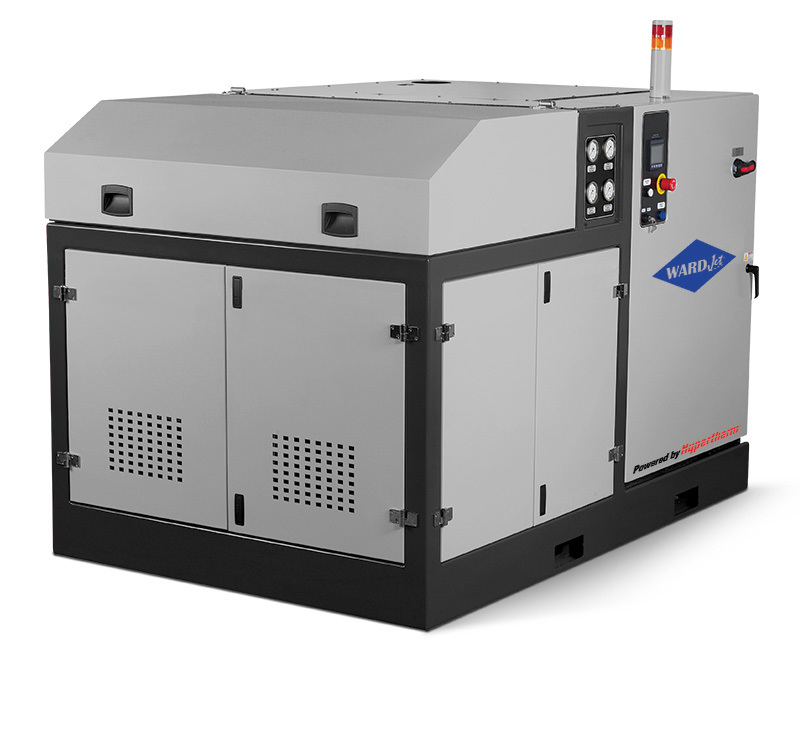

	Echion 15		Echion 30		Echion 50		HyPrecision P-Series 50S		HyPrecision P-Series 60S		HyPrecision P-Series 75S		HyPrecision 100D		HyPrecision 150D
	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
Normal Inlet Flow Rate	3 gpm (11.5 lpm)												8 gpm (30 lpm)		10 gpm (38 lpm)
Min. Inlet Water Pressure	40 psi (2.76 bar)
Max. Inlet Water Pressure	115 psi (7.93 bar)
Max. Inlet Temp.	70°F (21°C)
Min. Inlet Temp	40°F (4.4°C)

Orifice combinations supported by the HyPrecision pumps

Echion 15

Orifice size	in (mm)
1 orifice	0.007 (0.18)
2 orifices	0.005 (0.13)
3 orifices	0.004 (0.10)
4 orifices	–
5 orifices	–
6 orifices	–

Echion 30

Orifice size	in (mm)
1 orifice	0.011 (0.28)
2 orifices	0.007 (0.18)
3 orifices	0.006 (0.15)
4 orifices	0.005 (0.13)
5 orifices	0.004 (0.10)
6 orifices	–

Echion 50

Orifice size	in (mm)
1 orifice	0.014 (0.35)
2 orifices	0.010 (0.25)
3 orifices	0.008 (0.20)
4 orifices	0.007 (0.18)
5 orifices	0.006 (0.15)
6 orifices	0.005 (0.13)

Nozzle and Orifice Combinations

Orifice	Nozzle	Abrasive (lb/min)	Abrasive mesh
0.007	0.020	0.25	120 – 220
0.009	0.030	0.4 – .6	80 – 120
0.010	0.030	0.5 – .75	80 – 120
0.013	0.040	1.0 – 1.25	60 – 80
0.014	0.040	1.1 – 1.35	60 – 80
0.015	0.040	1.25 – 1.5	60 – 80
0.016	0.040	1.3 – 1.5	60 – 80

HP	Qty heads	Orifice/Nozzle
30	1	.010/.030
30	2	.006 water
50	1	.014/.040
50	2	.010/.030

Power vs. flow for HyPrecision waterjet pumps

Model	Power		Pressure		Max. output flow		Max. orifice size
	hp	kW	psi	bar	GPM	L/min	in	mm
15	15	11.2	60,000	4137	0.3	1.1	0.007	0.18
30	30	22	60,000	4137	0.60	2.30	0.011	0.28
50	50	37	60,000	4137	1.00	3.80	0.014	0.35
