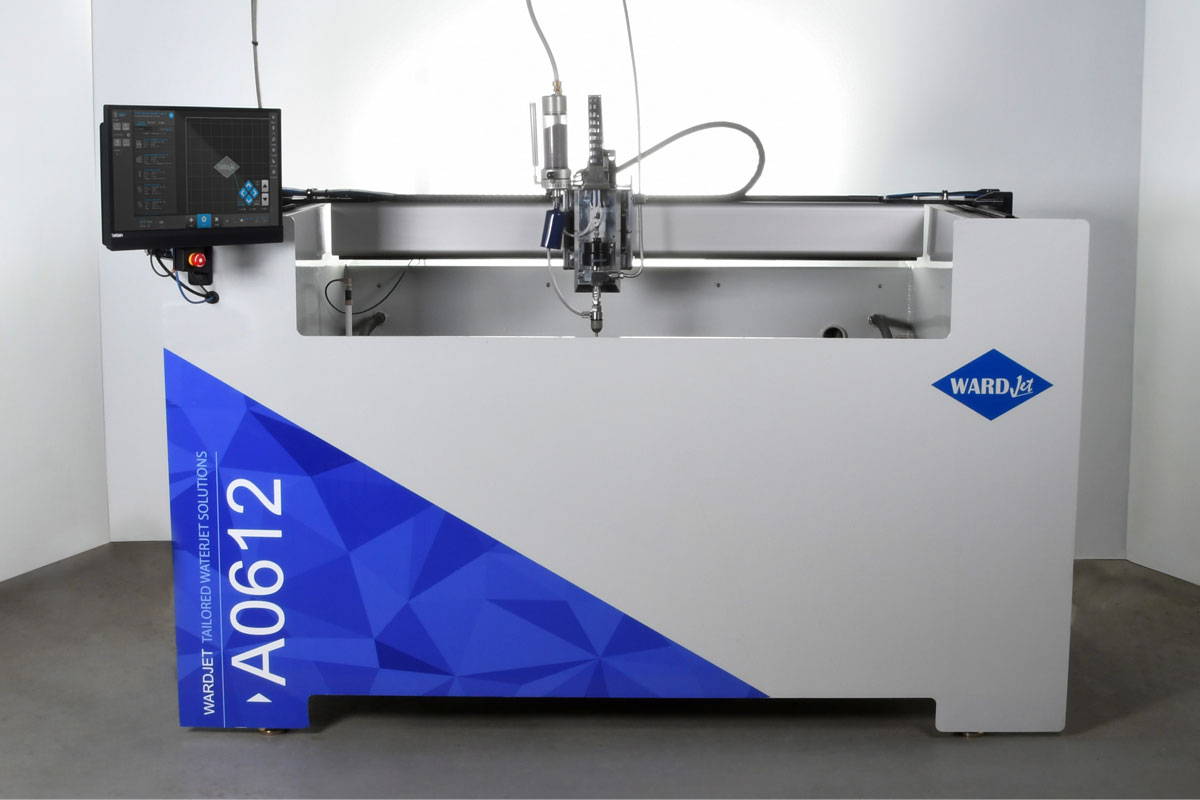

A-0612
Incredibly Powerful. Unbelievably Compact
Incredibly Powerful. Unbelievably Compact
Don't let the size fool you, the A-0612 makes quick work of the toughest, industrial-sized jobs. By not giving up on the core principles of waterjet cutting, the A-Series simply delivers.
Footprint
3.8' x 7.6'
1.14 m x 2.31 m
One Carriage X-Y Cutting Area
24" x 48"
0.62 m x 1.22 m
Z-Axis Travel
4"
0.10 m
Software
Move, WARDCAM
Move, WARDCAM
Power Requirements
120V, 20 Amps, Single Phase
120V, 20 Amps, Single Phase
Pump Power Requirements
208-230V or 460V, Three Phase (amperage varies by configuration)
208-230V or 460V, Three Phase (amperage varies by configuration)
Air Requirements
80 psi, 2 cfm
5.52 bar, 0.06 cmm
Max Number of Z-Carriages
1
1
Bulk Feed Hopper
85lb Integrated SmartFeed Hopper
85lb Integrated SmartFeed Hopper
Drive Mechanism
Helical Rack and Pinion
Helical Rack and Pinion
Linear Positional Accuracy
± 0.003" per 3ft. per axis
± 0.08 mm per 0.92m per axis
Repeatability
± 0.002" per axis
± 0.05 mm per axis
Speed
0.01 in/min - 500 in/min
0.25 mm/min - 12,700 mm/min
